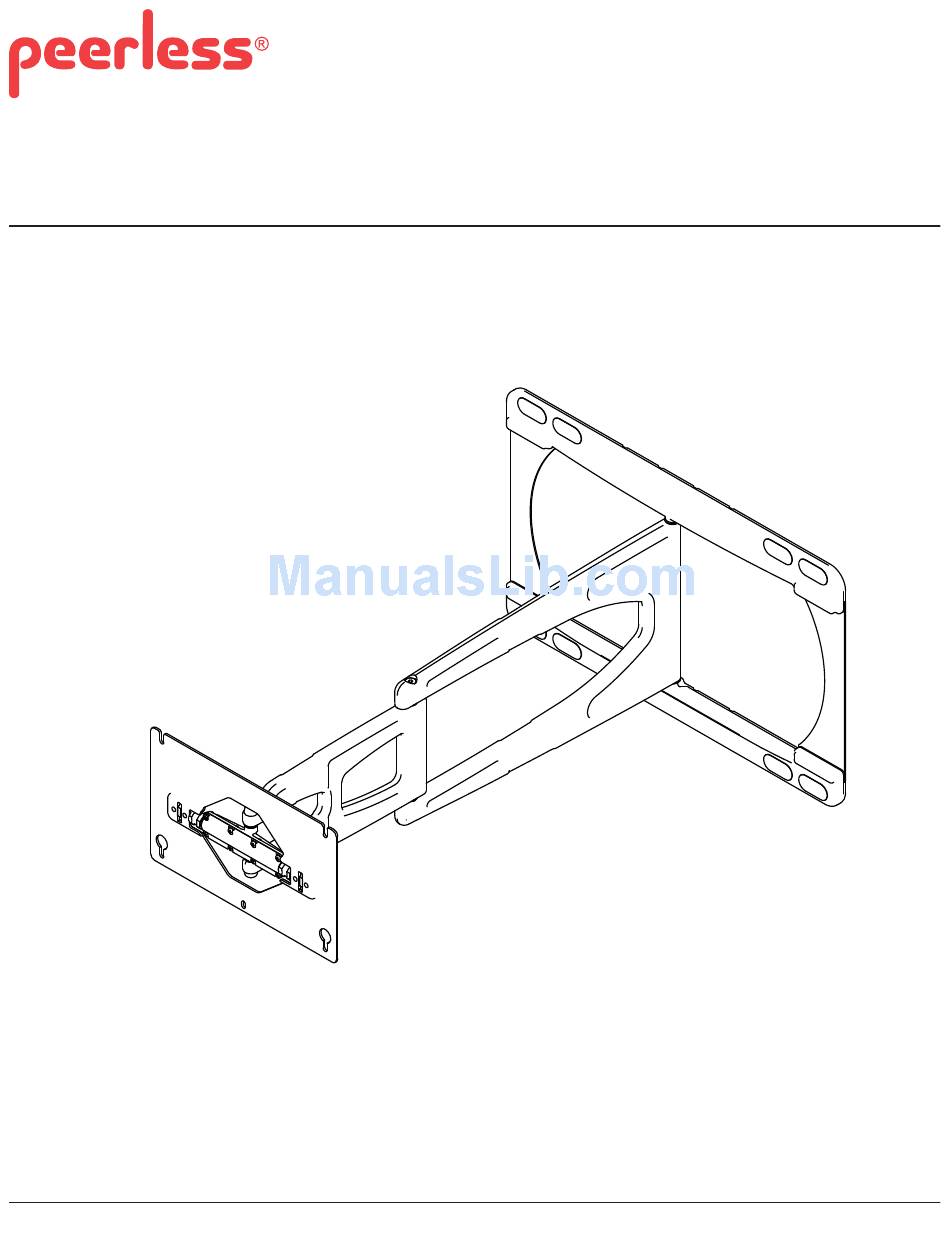

Installation and Assembly: Peerless Ultra-Slim Articulating Mount for Samsung 46" and 55" C9000 LED displays Models: SUAC9000 Max UL Load Capacity: 75 lb (34 kg) 3215 W. North Ave. • Melrose Park, IL • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com ISSUED: 10-01-10 SHEET #: 095-9354-1...
Page 2
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
Before you begin, make sure all parts shown are included with your product. Parts List Description Qty. Part # wall arm assembly 046-4176 upper mounting plate 046-4177 lower mounting plate 046-4178 wood screw 500-1090 concrete anchor 590-0320 security driver 560-1133 fastener cap 046-4096 cable clip...
Installation to Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.
Installation to Solid Concrete or Cinder Block WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
Page 6
WARNING • Be sure to carry display upright, from the top and bottom edges, or damage to display may occur. Follow instruction manual included with display to remove display from stand. Set display on a fl at, level surface. Refer to display manufacturer's installation guide for recommended careful handling.
Page 7
Install two 1/4-20 x 1/2" thread forming screws (L) into lower mounting plate (C) leaving 1/8" exposed thread as shown below. Set control box into lower mount plate (C) and place assembly onto back of display. Secure assembly to back of display by reinstalling two M4 chrome plated screws (included with display) into ultra- slim wall mount bar, four M4 black phillips screws (included with display) into lower mounting holes of control box, and four M4 x 16 mm phillips screws (M) into upper mounting holes of control box.
Page 8
Mounting Flat Panel Screen WARNING • Tighten screws so screen brackets are fi rmly attached to screen. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached.
Page 11
LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. establishes a warranty period of fi ve years for products manufactured or supplied by Peerless. This period commences from the date of sale of the product to the original consumer, but will in no case last for more than six years after the date of the product’s manufacture. During the warranty period such products will be free from defects in material and workmanship, provided they are installed and used in compliance with the instructions established by Peerless Industries, Inc.
