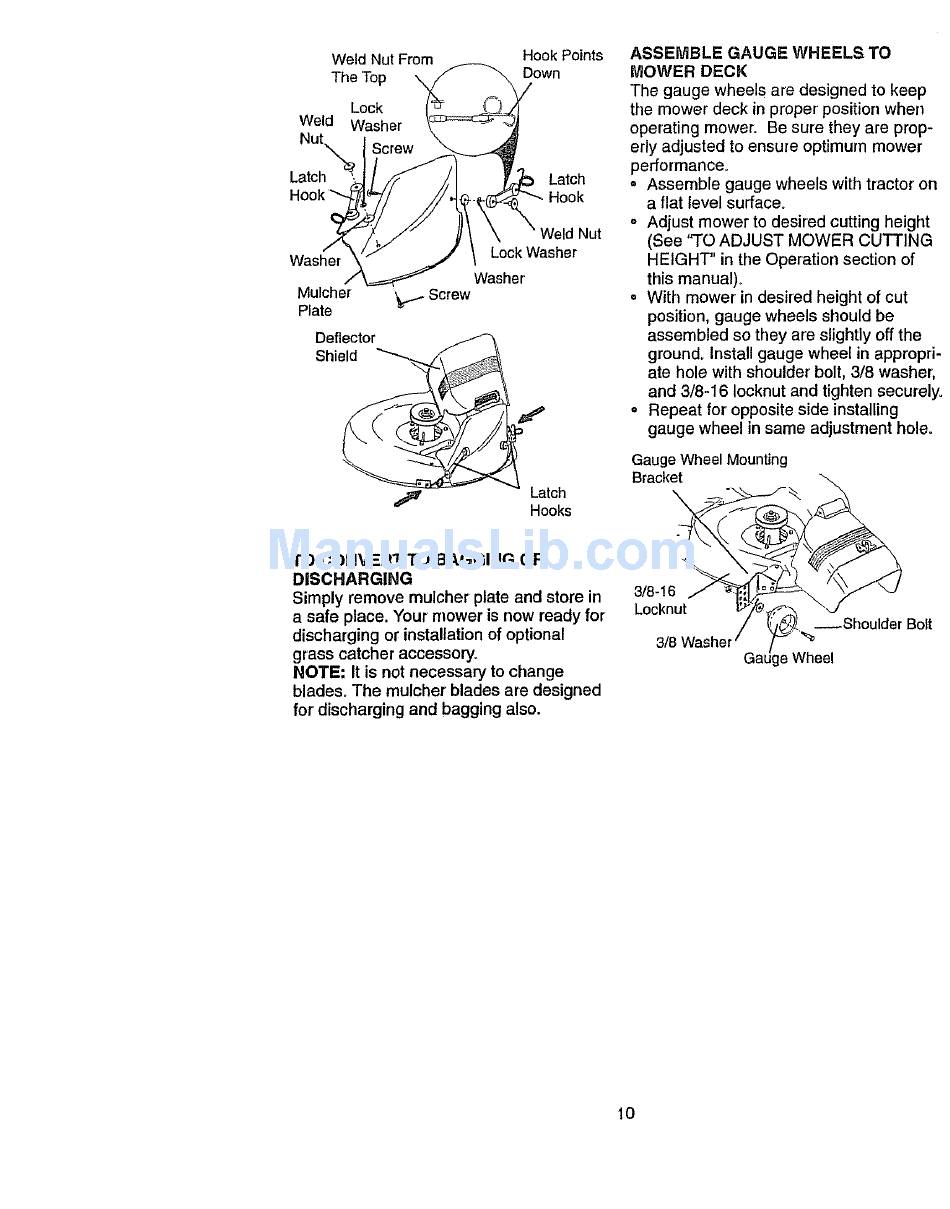

Locknut; Lock Washers - Craftsman EZ3 917.270710 Owner's Manual

17,0 hp electric start 42" mower 6 speed transaxle
Hide thumbs

Advertisement

Weld Nut From
The Top
Lock
Weld
Washer
Hook Points
Down
Latch
Washer
Latch
Hook
Nut
Lock Washer
Washer
Mulcher
_.._Screw
Plate
Deflector
Shield
Latch
Hooks
ASSEMBLE
GAUGE
WHEELS
TO
MOWER
DECK
The gauge wheels are designed
to keep
the mower deck in proper position
when
operating
mower.
Be sure they are prop-
erly adjusted
to ensure optimum
mower
performance.
o Assemble
gauge wheels with tractor on
a flat level surface.
,, Adjust mower to desired cutting
height
(See "TO ADJUST
MOWER
CUTTING
HEIGHT"
in the Operation
section of
this manual)_
• With mower in desired
height of cut
position,
gauge wheels should be
assembled
so they are slightly off the
ground_ Install gauge wheel in appropri-
ate hole with shoulder
bolt, 3/8 washer;
and 3/8-16 Iocknut and tighten securely.
o Repeat for opposite side installing
gauge wheel in same adjustment
hole.
Gauge Wheel Mounting
Bracket
TO CONVERT TO BAGGING OR
DISCHARGING
Simply remove mulcher plate and store in
a safe place. Your mower is now ready for
discharging or installation of optional
grass catcher accessory.
NOTE: It is not necessary to change
blades, The mulcher blades are designed
for discharging and bagging also.
3/8-16
Locknut
3/8 Wa_
_Shoulder
Bolt
.=Wheel
