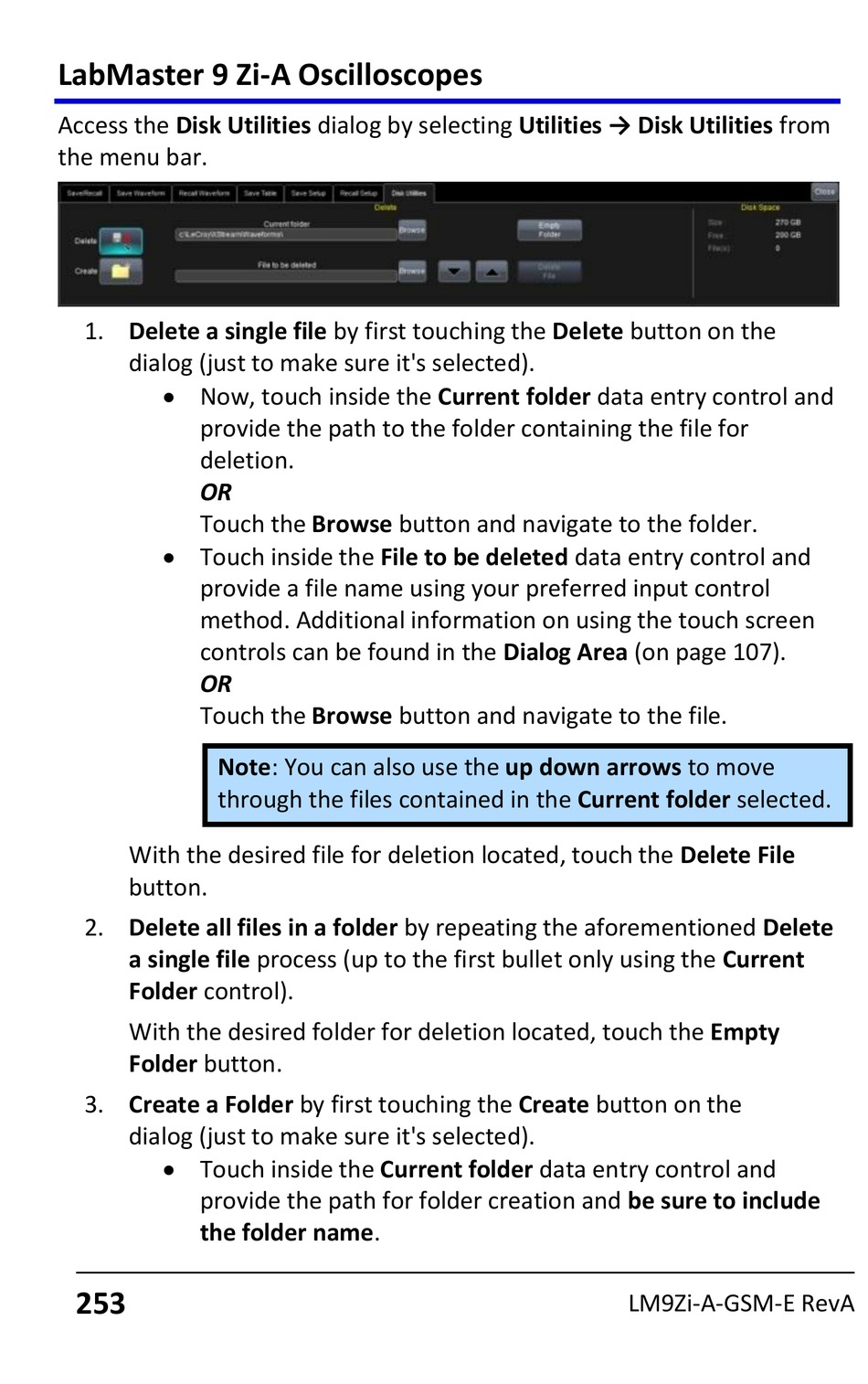

LeCroy LabMaster 9 Zi-A Getting Started Manual page 253

LabMaster 9 Zi-A Oscilloscopes
Access the Disk Utilities dialog by selecting Utilities → Disk Utilities from
the menu bar.
1. Delete a single file by first touching the Delete button on the
dialog (just to make sure it's selected).
 Now, touch inside the Current folder data entry control and
provide the path to the folder containing the file for
deletion.
OR
Touch the Browse button and navigate to the folder.
 Touch inside the File to be deleted data entry control and
provide a file name using your preferred input control
method. Additional information on using the touch screen
controls can be found in the Dialog Area (on page 107).
OR
Touch the Browse button and navigate to the file.
Note: You can also use the up down arrows to move
through the files contained in the Current folder selected.
With the desired file for deletion located, touch the Delete File
button.
2. Delete all files in a folder by repeating the aforementioned Delete
a single file process (up to the first bullet only using the Current
Folder control).
With the desired folder for deletion located, touch the Empty
Folder button.
3. Create a Folder by first touching the Create button on the
dialog (just to make sure it's selected).
 Touch inside the Current folder data entry control and
provide the path for folder creation and be sure to include
the folder name.
253
LM9Zi-A-GSM-E RevA
