Table of Contents

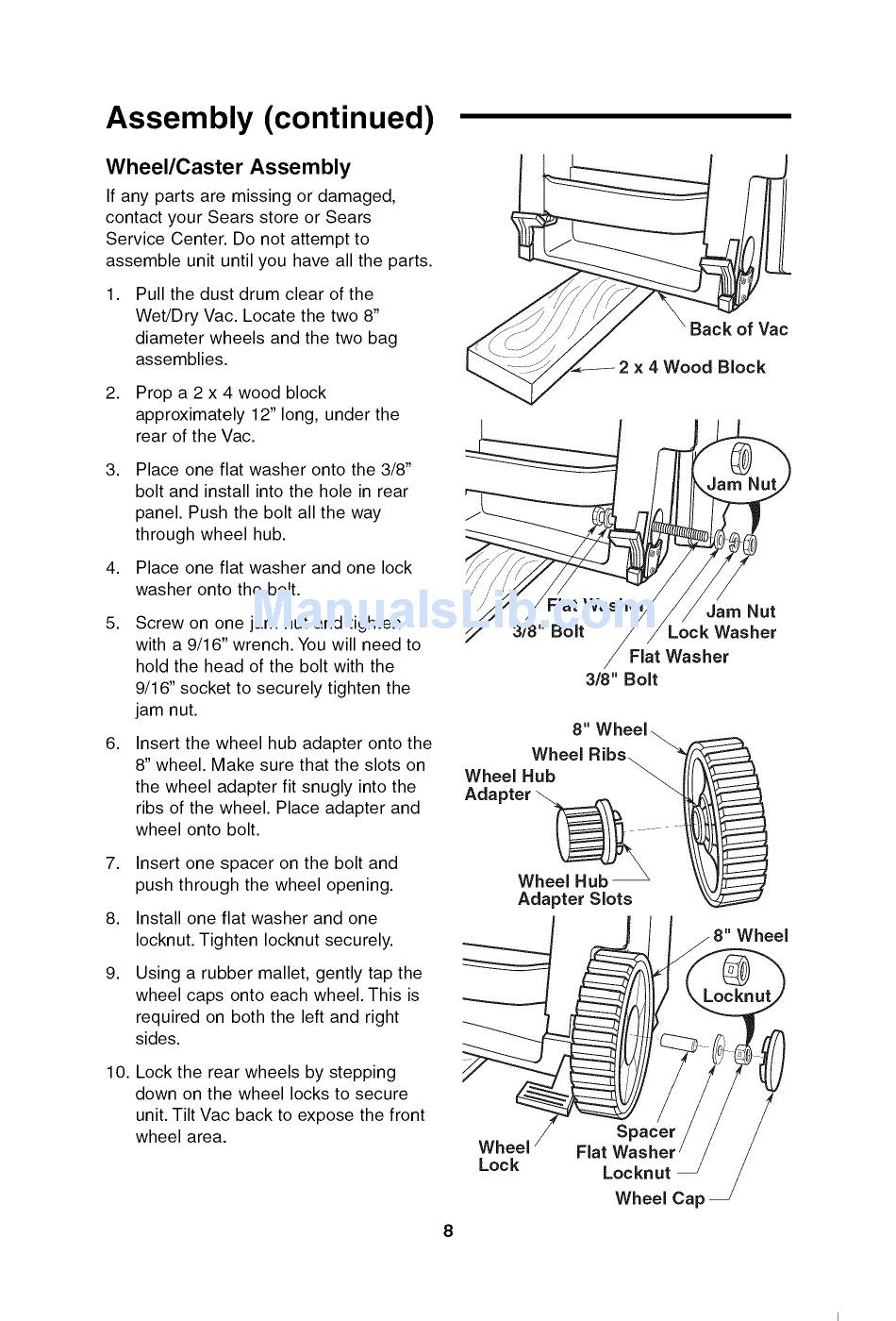

Assembly (continued)
Wheel/Caster
Assembly
If any parts are missing or damaged,
contact your Sears store or Sears
Service Center. Do not attempt to
assemble unit until you have all the parts.
1,
2,
Pull the dust drum clear of the
Wet/Dry Vac. Locate the two 8"
diameter wheels and the two bag
assemblies.
Prop a 2 x 4 wood block
approximately
12" long, under the
rear of the Vac.
3. Place one flat washer onto the 3/8"
bolt and install into the hole in rear
panel. Push the bolt all the way
through wheel hub.
4. Place one flat washer and one lock
washer onto the bolt.
5,
6,
7,
8,
9,
Screw on one jam nut and tighten
with a 9/16" wrench. You will need to
hold the head of the bolt with the
9/16" socket to securely tighten the
jam nut.
Insert the wheel hub adapter onto the
8" wheel. Make sure that the slots on
the wheel adapter fit snugly into the
ribs of the wheel. Place adapter and
wheel onto bolt.
Insert one spacer on the bolt and
push through the wheel opening.
Install one flat washer and one
Iocknut. Tighten Iocknut securely.
Using a rubber mallet, gently tap the
wheel caps onto each wheel. This is
required on both the left and right
sides.
10. Lock the rear wheels by stepping
down on the wheel locks to secure
unit. Tilt Vac back to expose the front
wheel area.
of Vac
2 x 4 Wood Block
y
3/8" Bolt / /
/
Flat
3/8" Bolt
Jam Nut
Lock Washer
Washer
Whee,.ob
Adapter _
..... __
" ...........
8" Wheel
Lock
Flat
Locknut
Wheel Cap
