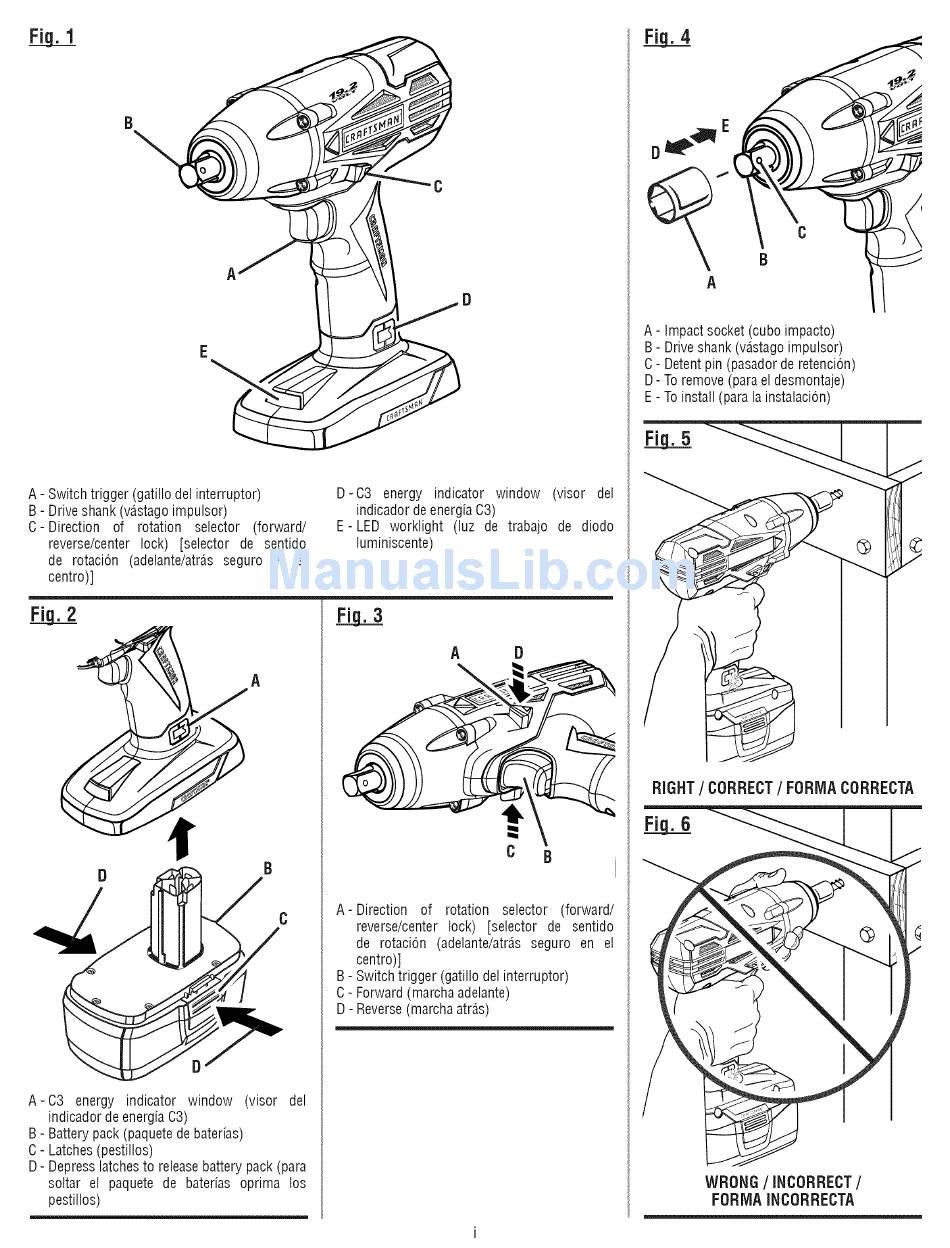

A - Switch trigger (gatillo del interruptor)
B - Drive shank (vastago impulsor)
C-Direction
of rotation selector (forward/
reverse/center lock) [selector de sentido
de rotacion (adelante/atr_s seguro en el
centro)]
D-C3
energy indicator window (visor del
indicador de energiaC3)
E-LED
worklight (luz de trabajo de diodo
luminiscente)
O
C
A-C3
energy indicator window (visor del
indicador de energiaC3)
B - Batterypack (paquetede baterias)
C - Latches (pestillos)
D - Depress latchesto releasebattery pack (para
soltar el paquete de baterias oprima los
pestillos)
A
\
O
A-Direction
of rotation selector (forward/
reverse/center lock) [selector de sentido
de rotacion (adelante/atr_s seguro en el
centro)]
B - Switch trigger (gatillo del interruptor)
C - Forward (marchaadelante)
D- Reverse(marchaatr_s)
C
B
A
A - Impact socket (cubo impacto)
B - Drive shank (vastago impulsor)
C - Detent pin (pasador de retencion)
D- To remove (para el desmontaje)
E - To install (para lainstalacion)
RIGHT/ CORRECT / FORMACORRECTA
WRONG / iNCORRECT /
FORIVlA INCORRECTA
