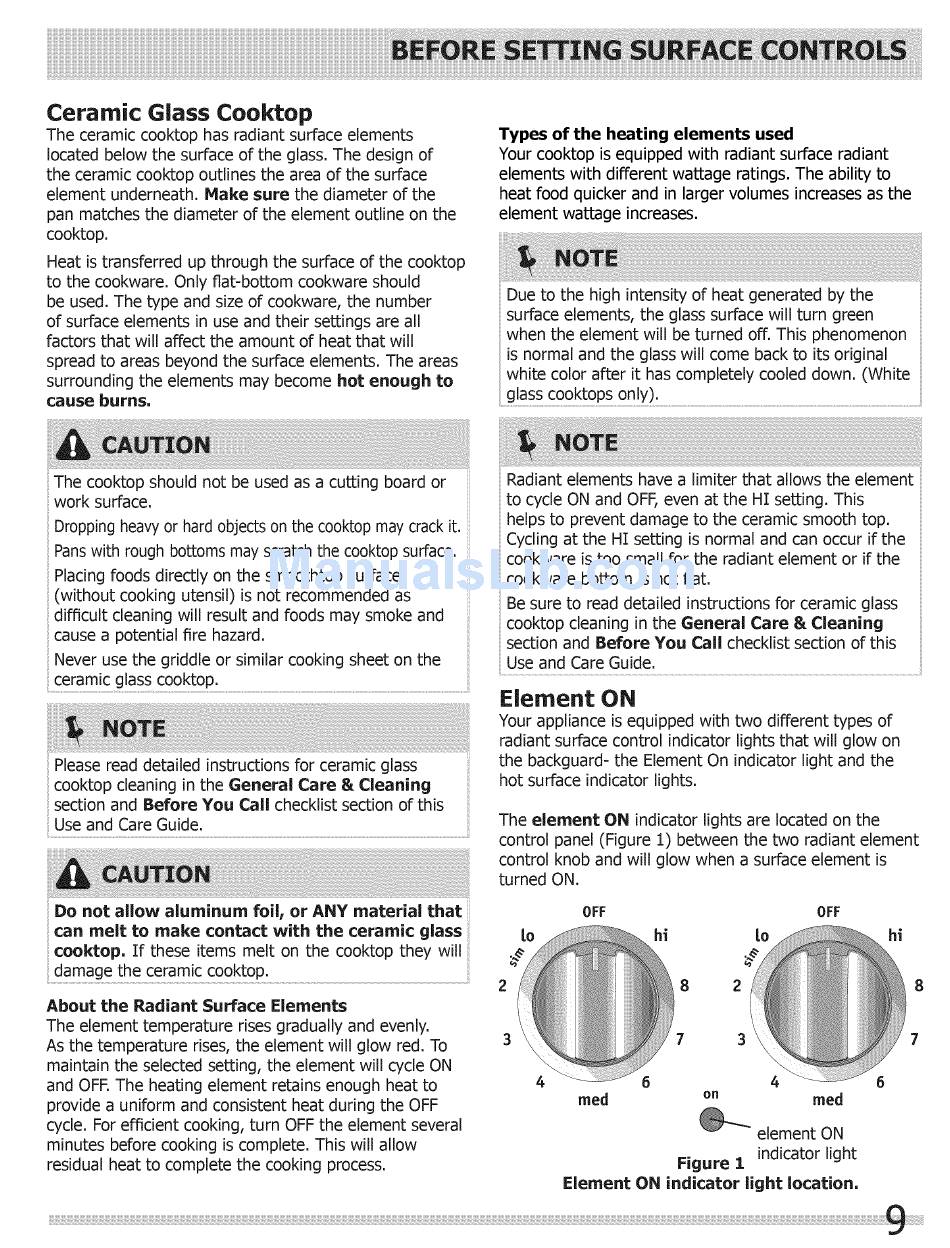

Ceramic Glass Cooktop - Frigidaire CFES3035LS2 Use & Care Manual

Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements
located below the surface of the glass, The design of
the ceramic cook'top outlines the area of the surface
element underneath. Make sure the diameter of the
pan matches the diameter of the element outline on the
cooktop.
Heat is transferred up through the surface of the cooktop
to the cookware. Only fiat-bottom cookware should
be used. The type and size of cookware, the number
of surface elements in use and their settings are all
factors that will affect the amount of heat that will
spread to areas beyond the surface elements. The areas
surrounding the elements may become hot enough to
cause burns,
Types of the heating elements used
Your cooktop is equipped with radiant surface radiant
elements with different wattage ratings. The ability to
heat food quicker and in larger volumes increases as the
element wattage increases.
Due to the high intensity of heat generated by the
surface elements, the glass surface will turn green
when the element will be turned off. This phenomenon
is normal and the glass will come back to its original
white color after it has completely cooled down. (White
glass cooktops only).
The cooktop should not be used as a cutting board or
work surface.
Dropping heavy or hard objects on the cooktop may crack it.
Panswith rough bottoms may scratch the cooktop surface.
Placing foods directly on the smoothtop surface
(without cooking utensil) is not recommended as
difficult cleaning will result and foods may smoke and
cause a potential fire hazard.
Never use the griddle or similar cooking sheet on the
Please read detailed instructions for ceramic glass
cooktop cleaning in the General Care 8=Cleaning
section and Before You Call checklist section of this
Do not allow aluminum foil, or ANY material that
can melt to make contact with the ceramic glass
cooktop, If these items melt on the cooktop they will
About the Radiant Surface Elements
The element temperature rises gradually and evenly,
As the temperature rises, the element will glow red. To
maintain the selected setting, the element will cycle ON
and OFF. The heating element retains enough heat to
provide a uniform and consistent heat during the OFF
cycle. For efficient cooking, turn OFF the element several
minutes before cooking is complete. This will allow
residual heat to complete the cooking process.
Radiant elements have a limiter that allows the element
to cycle ON and OFF, even at the HI setting. This
helps to prevent damage to the ceramic smooth top.
Cycling at the HI setting is normal and can occur if the
cookware is too small for the radiant element or if the
cookware bottom is not fiat.
Be sure to read detailed instructions for ceramic glass
cooktop cleaning in the General Care 8=Cleaning
section and Before You Call checklist section of this
Use and Care Guide.
Element ON
Your appliance is equipped with two different types of
radiant surface control indicator lights that will glow on
the backguard- the Element On indicator light and the
hot surface indicator lights.
The element ON indicator lights are located on the
control panel (Figure 1) between the two radiant element
control knob and will glow when a surface element is
turned ON.
OFF OFF
8
7 3
4
6 4 6
reed on reed
element ON
indicator light
Figure 1
Element ON indicator light location,
