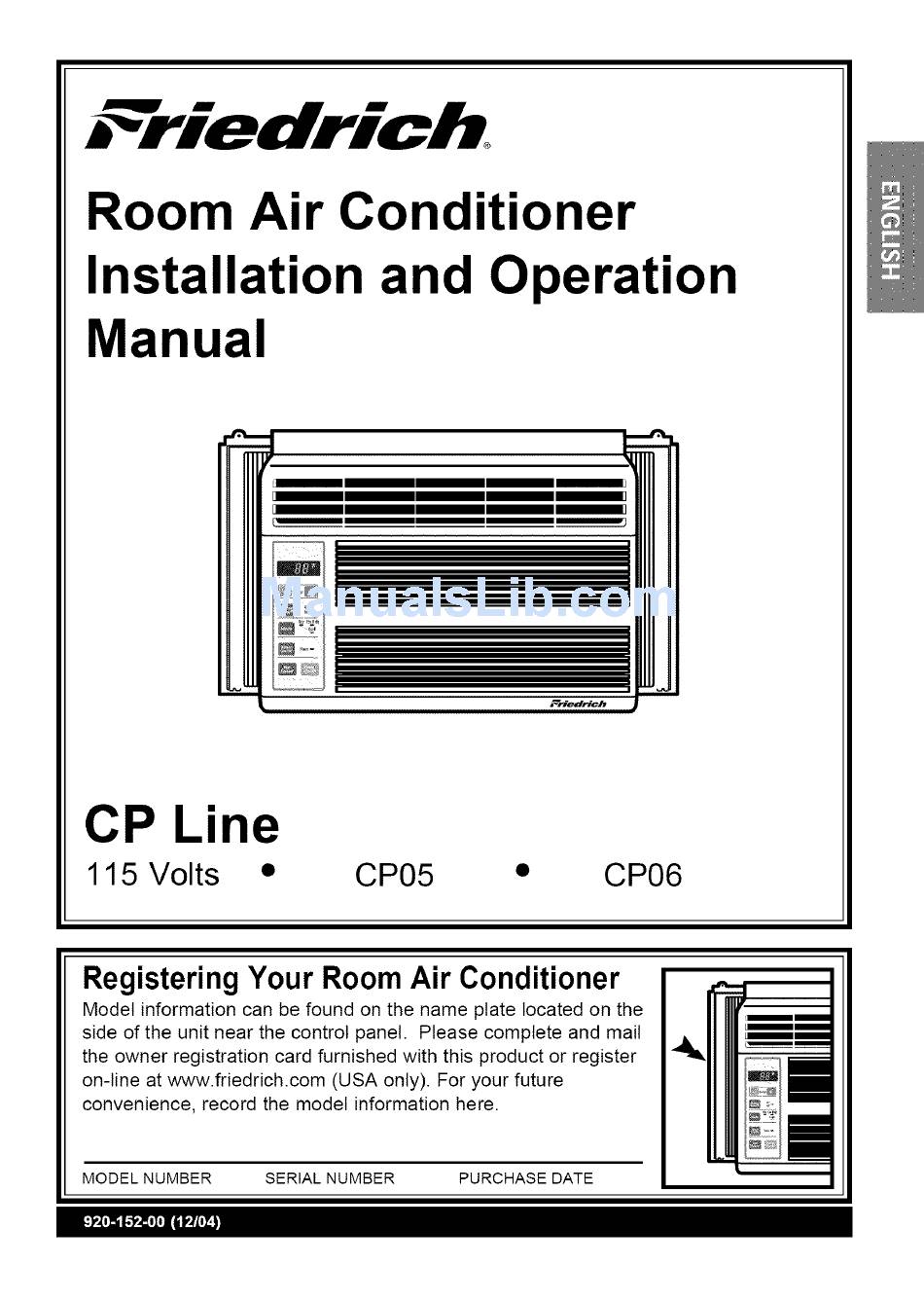

Room Air Conditioner

Installation and Operation

Manual

CP Line

115Volts

•

CP05

•

CP06

Registering Your Room Air Conditioner

Model information can be found on the name plate located on the

side of the unit near the control panel.

Please complete

and mail

the owner registration

card furnished

with this product

or register

on-line at www.friedrich.com

(USA only). For your future

convenience,

record the model information

here.

MODEL

NUMBER

SERIAL

NUMBER

PURCHASE

DATE

Table of Contents

Need help?

Do you have a question about the CP05 and is the answer not in the manual?

Questions and answers

Summary of Contents for Friedrich CP05

Page 1 Model information can be found on the name plate located on the side of the unit near the control panel. Please complete and mail the owner registration card furnished with this product or register on-line at www.friedrich.com (USA only). For your future convenience, record the model information here. MODEL NUMBER SERIAL...
Page 2: Table Of Contents
Your Friedrich unit is designed for maximum comfort and quietness. Table of Contents Introduction .................. 3 Safety Precautions ............... 4 How to operate your Friedrich ........... 6 Features and Installation ............. 8 Installation Instructions ............... 9 Troubleshooting Tips ..............13 Warranty ..................14...
Page 3: Introduction
Introduction Before Operating Your Unit Make sure the wiring is adequate for your unit. If you have fuses, they should be of the time delay type. Before you install or relocate this unit, be sure that the amperage rating of the circuit breaker or time delay fuse does not exceed the amp rating listed in figure 1. DO NOT use an extension cord.
Page 4: Safety Precautions
• If the power cord is damaged, it must generation. be reptaced by the manufacturer or a Friedrich-certified service agent. • It will cause electric shock or fire • It will cause electric shock.
Page 5 CAUTION t • They are sharp and may cause • Water may enter the unit and • Since the fan rotates at high an injury. degrade the insulation. It may speed during operation, it may cause an electric shock. cause an injury. •...
Page 6: How To Operate Your Friedrich
How to operate your Friedrich The controls will look like the following. Control and Remote Control Operations TEMPERATURE SETTING • These buttonscontrol the temperature of the room. The temperaturecan be set within a range of 60°Fto 86°F, in incrementsof I°F.
Page 7 (condensor coil) should be checked periodically and cleaned if clogged with soot or dirt from the atmosphere. Consult a certified Friedrich service agent for more information. Fig. 3 • HOW TO REMOVE THE FRONT GRILLE 1. Pull the inlet grille forward.
Page 8: Features And Installation
Features and Installation Learning the key components will help you properly install the unit. Features 1. CABINET 6. AIR FILTER 2. HORIZONTAL AIR DEFLECTOR 7. CONTROL BOARD 3. COOL AIR DISCHARGE 8. AIR INTAKE 4. FRONT GRILLE 9. UPPER GUIDE 5.
Page 9: Installation Instructions
Installation Instructions Window Requirements NOTE: All supporting parts should be firmly secured to wood, or metal. 1. This unit is designed for installation in standard double hung windows with actual opening widths of 22" to 36". The upper and lower sash must open sufficiently to allow a clear vertical opening of 14" from the bottom of the sash to the window sill.
Page 10 A. BEFORE INSTALLATION 1. Insert the guide panels into the guides of the air conditioner. Fasten the curtains to the unit with TYPE A screws (TYPE A) as shown Fig. 6. 2. Cut the adhesive-backed seal strip (TYPE D) to match the window width.
Page 11 WINDOW FRAME b. While steadying the air conditioner, carefully bring the UPPER GUIDE .--SEAL window sash down behind the upper guide of the air conditioner, as shown in Fig. 11. ABOUT1/4" 4. SECURE THE GUIDE PANELS BOTTOM Extend the guide panels (TYPE F) to fill the window GUIDE [_ -- opening using 4 screws (TYPE B) to secure them, as...
Page 12 Electrical Safety Electrical Data 115V~ Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.
Page 13: Troubleshooting Tips
Troubleshooting Tips Troubleshooting Tips save time and money! Review the chart below first and you may not need to call for service. Normal Operation • You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high.
Page 14: Warranty
FRIEDRICH will pay a labor allowance and parts necessary to repair the Sealed Refrigeration System; PROVIDED FRIEDRICH will not pay the cost of diagnosis of the problem, removal, freight charges and transportation of the air conditioner to and from the Service Agency, and the reinstallation charges associated with repair of the Sealed Refrigeration System.
Page 15 FRIEDRICH AIR CONDITIONING Visit our web site at www.friedrich.com Post Office Box 1540 • 4200 N. Pan Am Expressway • San Antonio, Texas 78295-1540 • (210) 357-4400 • FAX (210) 357-4490 P/NO.: 3828A21016B...
