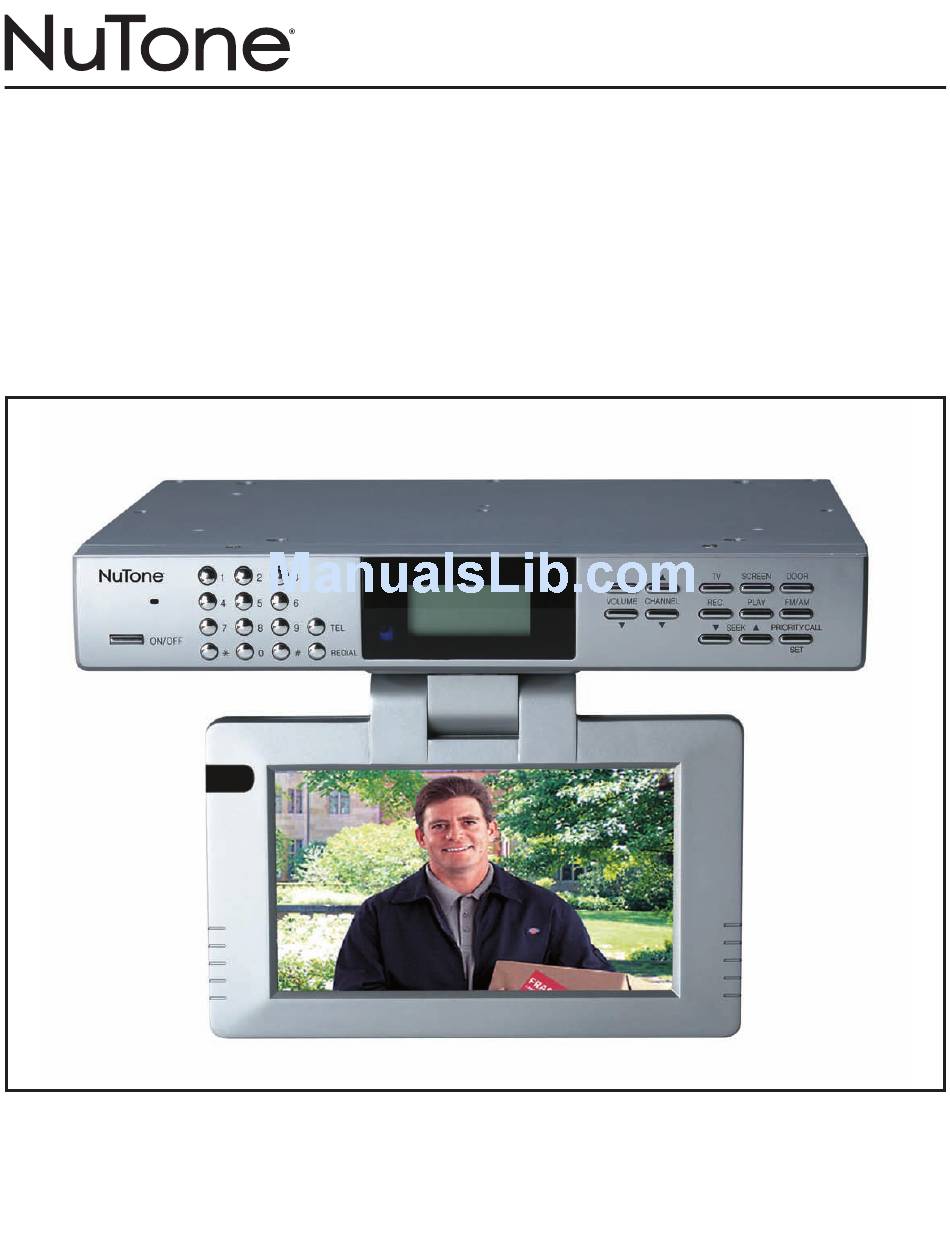

Video Door Answering System
Model VSUC4RK

INSTALLATION INSTRUCTIONS

This booklet contains information for installing the TV/Monitor.
All system wiring and rough-in frames should be installed
before mounting and wiring the master station. Refer to the
installation instructions packaged with the rough-in frames
for detailed wiring information.
READ & SAVE THESE INSTRUCTIONS!
For more detailed information on wiring and mounting other
system components (i.e., optional camera, rough-in.), refer
to the installation instructions packaged with the separate
components.
INSTALLATION INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSUC4RK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NuTone VSUC4RK

Summary of Contents for NuTone VSUC4RK

  • Page 1: Installation Instructions

    READ & SAVE THESE INSTRUCTIONS! INSTALLATION INSTRUCTIONS Video Door Answering System Model VSUC4RK INSTALLATION INSTRUCTIONS This booklet contains information for installing the TV/Monitor. For more detailed information on wiring and mounting other All system wiring and rough-in frames should be installed system components (i.e., optional camera, rough-in.), refer before mounting and wiring the master station.

  • Page 2: Important Safety Instructions

    Caution RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS READ THESE INSTRUCTIONS — All the safety and will fit into the power outlet only one way. This is a safety operating instructions should be read before the product feature. If you are unable to insert the plug fully into the is operated.
  • Page 4 dangerous voltage or other hazards. Refer all servicing to F. When the product exhibits a distinct change in perform- qualified service personal. ance — this indicates a need for service. 21. DAMAGE REQUIRING SERVICE — Unplug this product 22. REPLACEMENTS PARTS — When replacement parts from the wall outlet and refer servicing to qualified service are required, be sure the service technician has used personnel under the following conditions.

  • Page 5: Table Of Contents

    Table of Contents VSUC4RK REPRESENTATIVE WIRING ILLUSTRATION ........6 INSTALLATION .

  • Page 6: Vsuc4Rk Representative Wiring Illustration

    VSUC4RK SERIES REPRESENTATIVE WIRING ILLUSTRATION INSTALLATION AM loop Antenna with 34" lead FM Antenna with 20 foot lead CONTENTS OF CARTON FM Antenna with 5 foot lead Check (_) for following VSUC4RK carton contents: FM Antenna Balun TV right angle coax extension VSUC4RK TV/Monitor Telephone cable VSUC4RK Hardware bag assembly containing:...

  • Page 7: Precautions And Guidelines

    The VSUC4RK and camera is designed to be used with category 5 or category 6; no other cable should be used. The use of wire other than category 5 or category 6 cable will void all NuTone warranties and may result in faulty installation and improper operation.

  • Page 8: Fm Antenna Installation And Connection

    Under the Cabinet Mounting Fasten the plastic frame of the loop antenna using screws, nails, or staples (not supplied) in an open space under the cabinet. Attach the two wire lead-in cable from the loop antenna to the AM-ANT terminals on the back of the TV/Monitor.
  • Page 9 FM Folded Dipole Antenna with 20 foot lead-in The folded dipole antenna with a 20' lead is designed to be mounted in the homes attic. If additional lead-in length is needed, additional 300 ohm “twin lead” cable can be attached. Use one of the following methods to install the FM antenna.
  • Page 10 Ceiling Joist When attic space is limited, staple antenna to ceiling joists. Nail or Staple Through Center Twin-Lead Connection 1. Run the 20 foot twin lead to the location where the TV/Monitor will be mounted. 2. Keep twin lead at least 12" away from metal and other wiring. 3.

  • Page 11: Optional Fm Antenna Connection

    (not supplied by NuTone) An optional FM antenna (not supplied by NuTone) can be connected to the TV/Monitor. Follow the direction supplied by the antenna manufacture when locating and mounting the antenna. Used RG-6 coax cable to connect the anten- na to the FM-ANT “F”...

  • Page 12: Telephone Connection

    AVOID RUNNING INTERCOM WIRES PARALLEL TO A.C. POWER WIRING. Maximum Number of Camera’s The VSUC4RK is supplied with one (1) VSC4R camera. An optional second camera; NuTone model VSC4R recessed mount camera, or VSC4S surface mount camera can be added.
  • Page 13 3. Separate and strip approx. 1/2" of insulation from each of the eight wires in the cable. Twist the following cables together: • OR and OR/WH • GR and GR/WH • BL and BL/WH • BR and BR/WH 4. Attach each of the twisted pair of wires to the corresponding terminal on the back of the camera. Tighten each screw securely.

  • Page 14: Connecting Camera 1 At The Tv/Monitor

    Connecting Camera 1 at the TV/Monitor 1. Strip approx 2" of outer protective jacket from the category 5 or category 6 cable. 2. Separate and strip approx. 1/2" of insulation from each of the eight wires in the cable. Twist the following cables together: •...

  • Page 15: Wiring And Mounting The Tv/Monitor

    Wiring and Mounting the TV/Monitor Locate the TV/Monitor unit where the camera, TV, AM, FM and Telephone cables were previously ran. Depending on the depth of the cabinet, decide if you need to make all the connections to the back of the TV/Monitor before fastening the TV/Monitor to the bottom of the cabinet.
  • Page 16 • Insert the remaining 3 mounting screws (supplied) and tighten. • Complete all the connections on the back of the TV/Monitor, if they were not made before attaching the TV/Monitor to the cabinet. Using #8 Machine Screws and Threaded Mounting Shafts •...

  • Page 17: Powering Up The System

    • Position the round plastic spacer at each mounting hole location. To help hold the spacers in-place, position the small diameter end of the spacer towards the TV/Monitor case. Lift, align the screws onto the spacers and hold the TV/Monitor in position. •...

  • Page 18: Camera Volume Adjustment

    Camera Volume Adjustment The VSC4R door camera is provided with a volume level adjustment set screw. The adjustment has been pre-set at the fac- tory to provide the optimal volume level at the door camera. The volume level can be adjusted if your specific application requires the level to be either increased or decreased.
  • Page 19 Bank Road, Cincinnati, Ohio 45227 or dial 1-800-543-8687 that is also compliant. or visit www.nutone.com. If the equipment is causing harm to the telephone network, the telephone company may request The REN is used to determine the number of devices that that you disconnect the equipment until the problem is may be connected to a telephone line.

  • Page 20: Warranty

    Product specifications subject to change without notice. 4820 Red Bank Road, Cincinnati, Ohio 45227 Printed in Korea, Rev. 09/2005, Part No. 100908...
