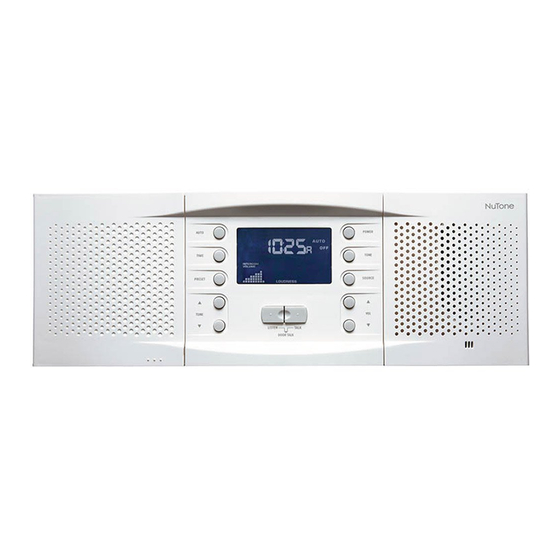

NuTone Nm100WH Installation Manual

Nm100 series
system iNstallatioN
read aNd save tHese iNstructioNs
cautioN
to reduce tHe risk of fire, electric sHock, or iNjury
to persoNs, observe tHe folloWiNg:
1. Read all instructions carefully before installing or using the
NM100 System.
2. The NM100 must be installed by a qualified dealer or installer,
and must conform to all local building and electrical codes.
3. For continued protection against risk of fire replace the fuse
in the power switch module only with the same type 3 Amp,
250 Volt fuse.
4. Adhere to all warnings on the NM100 and in these instructions.
Follow all operating and installation instructions.
!
WarNiNg
tHese iNstallatioN iNstructioNs are for use by
qualified persoNNel oNly. to reduce tHe risk of
electric sHock, do Not perform aNy serviciNg
otHer tHaN tHat coNtaiNed
iNstructioNs uNless you are qualified to do so.
• Do not attempt to service the NM100 yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be
of sufficient magnitude to constitute a risk of shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.
• Locate the system away from heat sources such as radiators,
heat registers, stoves, or other heat producing products.
• Do not locate the NM100 master or remote stations in an
outside wall.
• Do not expose the NM100 to moisture. Doing so can create fire
or shock hazards and void the warranty.
• Do not place the NM100 master or remote stations in any wall
cavity with any other electrical wiring in the cavity.
• I nstall the NM100 system after application of the wall
covering material.
• Do not expose the outdoor remote station speakers to significant
water contact. The outdoor remote speakers are weatherproof
but not waterproof. Continuous direct water exposure will cause
system problems.
iN tHe operatiNg
• Do not connect a remote or door station wire if you are unsure
of its terminating point. Connecting a door station to a remote
station may result in system damage.
• Do ensure that all rough-in instructions have been followed
before power is applied to the NM100 system.
• Do not splice cables. Splices are unreliable and defeat the signal
isolation properties of the cable.
• Do not attach devices unauthorized for use with this system.
Authorized devices include:
Audio components connected via a line level input
NC300 6-disc player
• If extra cables have been run for future speaker additions, care
must be taken to ensure these cables are not connected to the
NM100 master unit. Un-terminated cables (no station) connected
to the NM100 master may cause electrical feedback that will
damage the master station.
• Do not over-tighten the screws for the remote stations or master
as the plastic face panels may crack or strip out.
• Use only NuTone certified replacement parts and have
them installed by a NuTone dealer or installer. Unauthorized
substitutions can result in fire, electric shock, or other hazards.
• Upon completion of any service or product repair, have the
dealer or installer conduct a safety check to ensure the system
is in proper operating condition.
• Use only a damp cloth to clean the NM100 master and remote
stations. Do not use liquid cleaners or aerosol cleaners.
cautioN: WiriNg
• A qualified electrician must run a 120V AC line to the NM100
retrofit transformers.
• Individual wire runs should not exceed more than 350 FEET
of wire from any single remote station to the NM100 master or
1000 total feet for the entire system.
• Label all wiring runs. Connecting the wires to the NM100 master,
remote station or door stations incorrectly may result in system
damage.
• Run a single cable from the master unit location to each remote
station and door station in a "home run" fashion. Do not loop
cable from one remote station to another.
• Do not staple cables. Staples cause shorts.
• Do not splice cables. Splices are unreliable and defeat the signal
isolation properties of the cables.
• Do not run electrical wires through the rough-ins. If you encounter
120VAC wires running through a rough-in during a retrofit you
must have a qualified electrician rerun those wires around the
rough-in.
100
model Nm WH
Page
