RADIO-INTERCOM SYSTEM
This booklet contains information for installing the Master
Station. All system wiring and rough-in frames should be
installed before mounting and wiring the master station.
Refer to the installation instructions packaged with the
rough-in frame for detailed wiring information.

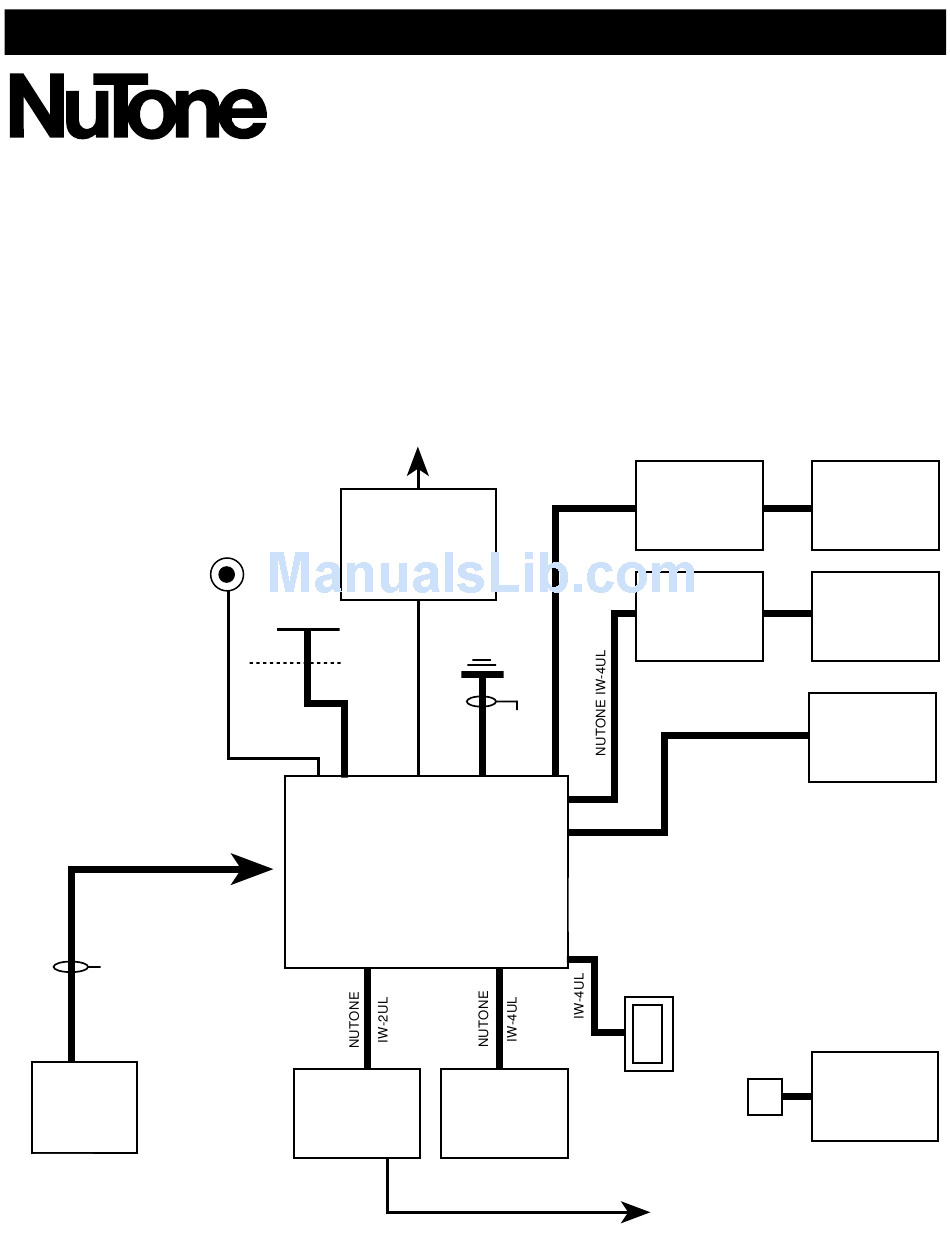

IM-3204 SERIES REPRESENTATIVE WIRING ILLUSTRATION
PUSHBUTTON FOR
OPTIONAL CHIME
IN
SHIELDED
AUDIO
CABLE
OPTIONAL
MUSIC
SOURCE
®
MODEL: IM-3204 Series Master Station
14/2 WITH GROUND
(OBSERVE LOCAL CODES)
120V 60HZ (CLASS 1)
TRANSFORMER
MODULE
SECONDARY:
16V., 15VA
INSIDE
ANTENNA
ATTIC
300' MAX
NUTONE IW-2UL
IM-3204
MASTER
STATION
DOOR
SPEAKER
For more detailed information on wiring and mounting other
system components (i.e. speakers, remote controls, etc.),
refer to the installation instructions packaged with each
separate component.
NUTONE
IW-4UL
105T
EARTH
GROUND
14 GA
5" PATIO
SPEAKER
W/CONTROLS
S143 (18/2) 300' MAX FOR
ELECTRO-MECHANICAL &
ELECTRONIC CHIME
INSTALLATION
INSTRUCTIONS
USE THIS DIAGRAM FOR REFERENCE ONLY –
SEE IR-103 ROUGH-IN FRAME INSTALLATION
INSTRUCTIONS FOR DETAILED WIRING
OUTSIDE
REMOTE
CONTROL
INSIDE
REMOTE
CONTROL
NUTONE
IW-4UL
IA-6C
RECEPTACLE
IA-6
PLUG
DOOR SPEAKER MODELS WITH CHIME
PUSHBUTTON ALSO REQUIRES 18/2
(S-143) TO CHIME LOCATION OR IW-2UL TO
MASTER IF CHIME MODULE IS USED.
OUTSIDE
SPEAKER
IW-2UL
WITHOUT
CONTROLS
INSIDE
IW-2UL
SPEAKER
WITHOUT
CONTROLS
5" INSIDE
SPEAKER
W/CONTROLS
DESKTOP
FRAME WITH
5" REMOTE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NuTone IM-3204 Series
Summary of Contents for NuTone IM-3204 Series
- Page 1 ® INSTALLATION INSTRUCTIONS RADIO-INTERCOM SYSTEM MODEL: IM-3204 Series Master Station This booklet contains information for installing the Master For more detailed information on wiring and mounting other Station. All system wiring and rough-in frames should be system components (i.e. speakers, remote controls, etc.), installed before mounting and wiring the master station.
-
Page 2: Table Of Contents
Connecting Optional Accessories ....... .7 • The IM-3204 is designed to be used with NuTone specified wire;... -
Page 3: Remote Station Wiring
• Never use 4-wire telephone cable or other 4-wire cable. Use only NuTone IW-4UL flat ribbon cable. The use of telephone cable or other 4-wire cable will reduce intercom monitor/volume and cause squealing/noise. -
Page 4: Mounting The Master Station
INSTALLATION (Continued) Mounting the Master Station Refer to Figure 3 1. Use two (2) #6 x 3/8" screws to attach each of the two (2) mounting brackets to the rough-in frame. Before tightening the screws at each mounting bracket, slide the bracket so it is flush with the wall surface (flush with rough-in frame if the rough-in is installed after the wall board). -
Page 5: Connecting The Remote Wiring
1- 6 terminal on circuit board. Tighten screw. will ensure the panel and panel mounting hinges will not be damaged due to excessive down force on the panel Only one 25 ohm NuTone speaker may be connected to hinges. each volume control. Each volume control/speaker counts as a remote station (6 maximum). -
Page 6: Connecting The Power Transformer
INSTALLATION (Continued) Connecting the Antenna WHITE WIRE Refer to Figure 12 1. Plug the AM/FM antenna (supplied with the IR-103 rough-in frame) to the 2-pin connector located in the upper right corner of the main circuit board. AM/FM ANTENNA GRAY WIRE FIGURE 10 Connecting the Power ANTENNA... -
Page 7: Connecting Optional Accessories
INSTALLATION (Continued) Connecting Optional Accessory Refer to Figure 14 1. To connect an external audio source (cassette player, stereo system, VCR, TV, etc. with low level audio output) to the IM-3204 master station, locate the CD/TAPE input on the CD/TAPE JACK lower center of the master station’s main circuit board. -
Page 8: System Operating Controls
SYSTEM OPERATING CONTROLS Master Station Controls 10. MICROPROCESSOR RESET: Initiates a reset of the microprocessor. NOTE: A reset of the microprocessor will erase the system’s memory. 1. END CALL: Ends intercom communication and returns system to audio source. 11. MEMORY SET: Stores desired radio frequencies into a selected memory location. -
Page 9: Operational Checkout
SYSTEM OPERATING CONTROLS (Continued) Operational Checkout Setting Program Audio Controls If the system does not operate according to the following instructions, refer to the installer’s Troubleshooting Guide. Set STATION STATUS SWITCHES to RADIO/IP position. The volume levels required at each station may vary with the location of the speaker and the size of the room where the Set the MASTER VOLUME control to maximum. -
Page 10: Diagnostic Tests
To Activate: Press and HOLD The following diagnostic tests have been incorporated into the 2. END CALL key NuTone IM-3204 Radio Intercom to assist in troubleshooting. Resetting the Microprocessor 1. Master station and remote station keyboard test. 2. Display test. - Page 11 INSTALLER'S TROUBLESHOOTING GUIDE TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY IU is displayed continuously Shorted IW-4UL remote speaker Remove all Copper wires from the CONTROL screw terminal on Master Station. Reconnect each copper wire one at a time until IU is in the LCD display. wiring or improper wire connection at master or remote displayed in LCD display.
-
Page 12: Warranty
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this two year period, NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS OR TUBES, FILTERS, DUCT, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING.
