- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) 8−06 Printed In U.S.A. (kdr) Part No. 8214767...
-
Page 2: Cabinet Parts

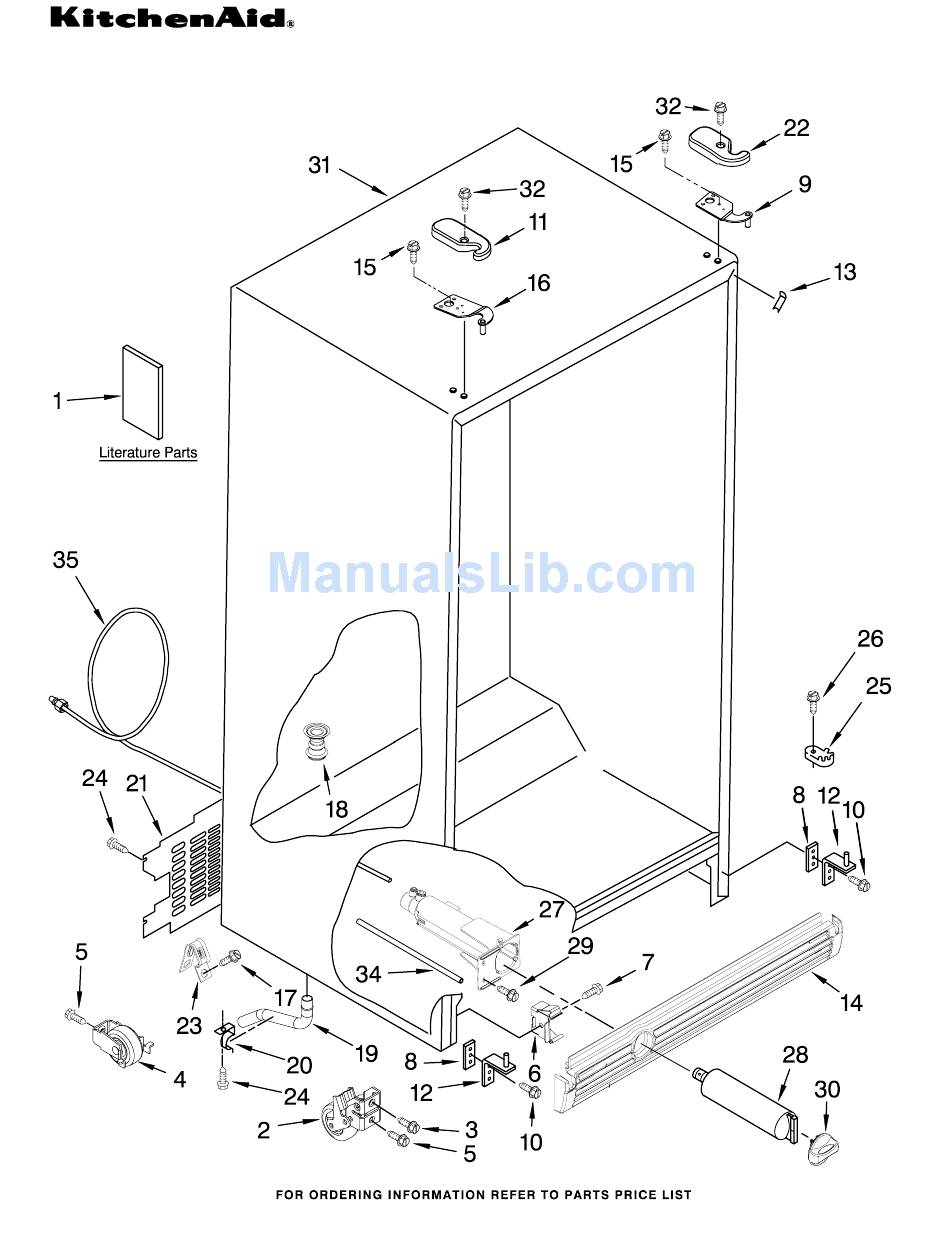

CABINET PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Filler, Wrapper 489084 Screw Literature Parts 2196094 White 2155311 Door Closer, 2315214 Use & Care Guide 2196097 Black Lower Cam (2) 2255385 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2255612 Escutcheon, Meat Pan Control 2301339 Slide Meat Pan Control 2257741 Louver 2256035 Bracket, Dual Crisper Lights 2256037 Wire Harness, Dual Crisper Lights 2206273 Ladder, Shelf (2) 486298 Screw (2) -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2195975 Frame Assembly, Slide Out (2) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14 & 15) 2305595 Snack Pan (Includes #7) 2179243 Trim, Handle... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) 8214767... - Page 6 FREEZER LINER PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 2301190 Basket, Tall Track, Basket−Dual 2301293 Right Side 2301294 Left Side 2211746K Shelf, Slide Out Upper 2305580K Basket, Front Track, Basket 2301289 Right Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) 8214767... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2198573 Ice Bin 2255580 Crusher Bin 2258222 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) 8214767... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2301184W White 2301184B Black 2301184T Biscuit 2301486 Door, Compartment 2193409K Beverage Holder(2) 2165792K Butter Dish Handle 2304832W White 2304832B Black 2304832T Biscuit Door Gasket, Magnetic 2221302 Mist Beige...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) 8214767... - Page 12 FREEZER DOOR PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2255407W White 2255407B Black 2255407T Biscuit Handle 2304832W White 2304832B Black 2304832T Biscuit 3 W10010140 Screw 2219698 Stud 3400012 Screw 488208 Screw 2171070K Shelf Bin (3)
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) 8214767... - Page 14 DISPENSER FRONT PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White 2206670B Black 2206670T Biscuit...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2188824 Bi−Metal, Defrost 2220569 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evap Cover (2) 2176759 Fan Grommet (2) -
Page 16: Control Parts
CONTROL PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8201785 Control Box 2172906 Grommet, Light Bar 1115375 Clip, Wiring 2196001 Tube Barrier, 2161466 Slide, Thermostat 2161308 Connecting Rod Thermostat 489084 Screw (2) 489391 Fastner, Push−On 489214 Screw (3) 2179920 Light Bar (RC) -
Page 17: Unit Parts
UNIT PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) 8214767... - Page 18 UNIT PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2225834 Fan, Blade 1105523 Tray, Evaporator 2172840 Strap 2223953 Condenser 2304289 Heat Shield 489427 Screw Assembly Drier 488649 Screw 489464 Screw 2199167 Production 2209709 Connector, Water 2208280 Clip, Wire...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) 8214767... - Page 20 ICEMAKER PARTS For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 628379 Clip, Fuse 489084 Screw 2256096 Tube, Water 489478 Screw 2304757 Valve, Solenoid 489385 Tube Clip 2174358 Cover 488649 Screw 2255835 Mold & Heater Assembly (Also Order 542638 628356 Cup, Water Fill 627843 Ejector 2198598 Ice Striper...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRG25FKWH17, KSRG25FKBL17, KSRG25FKBT17 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous PAINT, BULK (1 qt.) PAINT, PRESSURIZED SPRAY (12 oz.) 212643 Sealer, Gum 799340 Black 350942 Primer, White (4 Feet) 799344 White 350939 Black 479502 Tape, Vinyl...
