- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) (Black) (Biscuit) 5−06 Printed In U.S.A. (mek) Part No. 8198120...
-
Page 2: Cabinet Parts

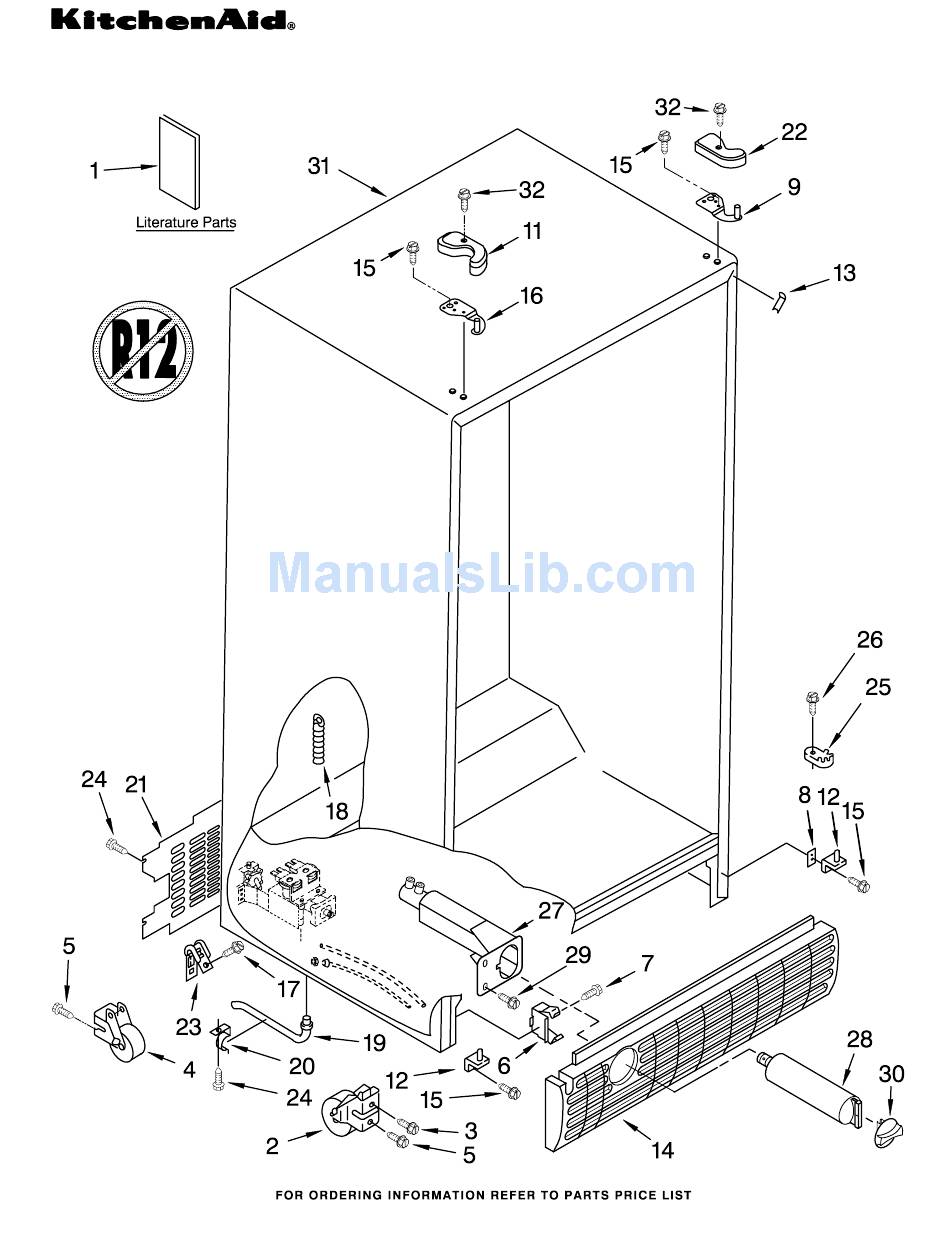

For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 Illus. Part DESCRIPTION LITERATURE PARTS LIT2254906 Use & Care Guide LIT2220109 Service & Wiring Sheet LIT2220281 Energy Label LIT2220407 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2) 489427 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 8198120 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2196485 Stud Assembly 3400894 Screw 2196483 Stud Assembly... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) (Black) (Biscuit) Illus. Part 2195975 Shelf Assembly, 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan 2209677 Snack Pan 2179243 Trim, Handle 2189526 Glass, Cover 2174250 Cover, Crisper... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) (Black) (Biscuit) 8198120... - Page 6 FREEZER LINER PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2181765 Basket, Tall Track, Basket−Dual 2216106 Right Side 2216107 Left Side 2211746 Shelf, Slide Out...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) (Black) (Biscuit) 8198120... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) Illus. Part 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2198591 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) (Black) (Biscuit) 8198120... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2207327W White 2207327B Black 2207327T Biscuit 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Insert, Handle 2173825 White 2173829 Black 2186863T Biscuit Door Gasket,...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) (Black) (Biscuit) 8198120... - Page 12 FREEZER DOOR PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2216569W White 2216569B Black 2216569T Biscuit Retainer, Insert 2194777W White 2194777B Black 2194777T Biscuit End Cap (2) 2194778W White 2194778B Black...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) (Black) (Biscuit) 8198120... - Page 14 DISPENSER FRONT PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489000 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White...
-
Page 15: Air Flow Parts
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan Evaporator, And Heater, Bi−Metal... -
Page 16: Control Parts
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 Illus. Part DESCRIPTION 8201785 Control Box 2196001 Tube Barrier, Thermostat 489214 Screw (3) 2149705 Light Switch 2161282 Thermostat 2213489 Adaptive Defrost Control 489398 Screw (2) 2200096 Cover, Light Lens 627068 Screw 2181741 Slide, Air Control... -
Page 17: Unit Parts
UNIT PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) (Black) (Biscuit) 8198120... - Page 18 For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 Illus. Part DESCRIPTION 486692 Speed Nut 2190685 Fan, Blade 2204484 Condenser Assembly 489464 Screw 2208280 Clip, Wire 2205765 Tube Suction 2161302 Sleeve 2158826 Dampener 2216997 Bracket, Insert 8281160 Screw 4387731 Cover (Service Compressor Only) 4387835 Overload,...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) (Black) (Biscuit) 8198120... - Page 20 ICEMAKER PARTS For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 (White) Illus. Part DESCRIPTION 2198677 Connector, Water Tube 2198578 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2211507 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White (12 Oz. Spray Can) 350939 Enamel, Black (12 Oz. Spray Can) 350930 Enamel, White (12 Oz. Spray Can) 350956 Enamel, Almond (12 Oz.
