CABINET PARTS
REFRIGERATOR
For Models: KSRG25FKSS05
(Stainless Steel)
5−06 Printed In U.S.A. (dmz)
1
Part No. 8198611

Advertisement

loading

  Summary of Contents for KitchenAid ksrg25fkss05

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSRG25FKSS05 (Stainless Steel) 5−06 Printed In U.S.A. (dmz) Part No. 8198611...
  • Page 2: Cabinet Parts

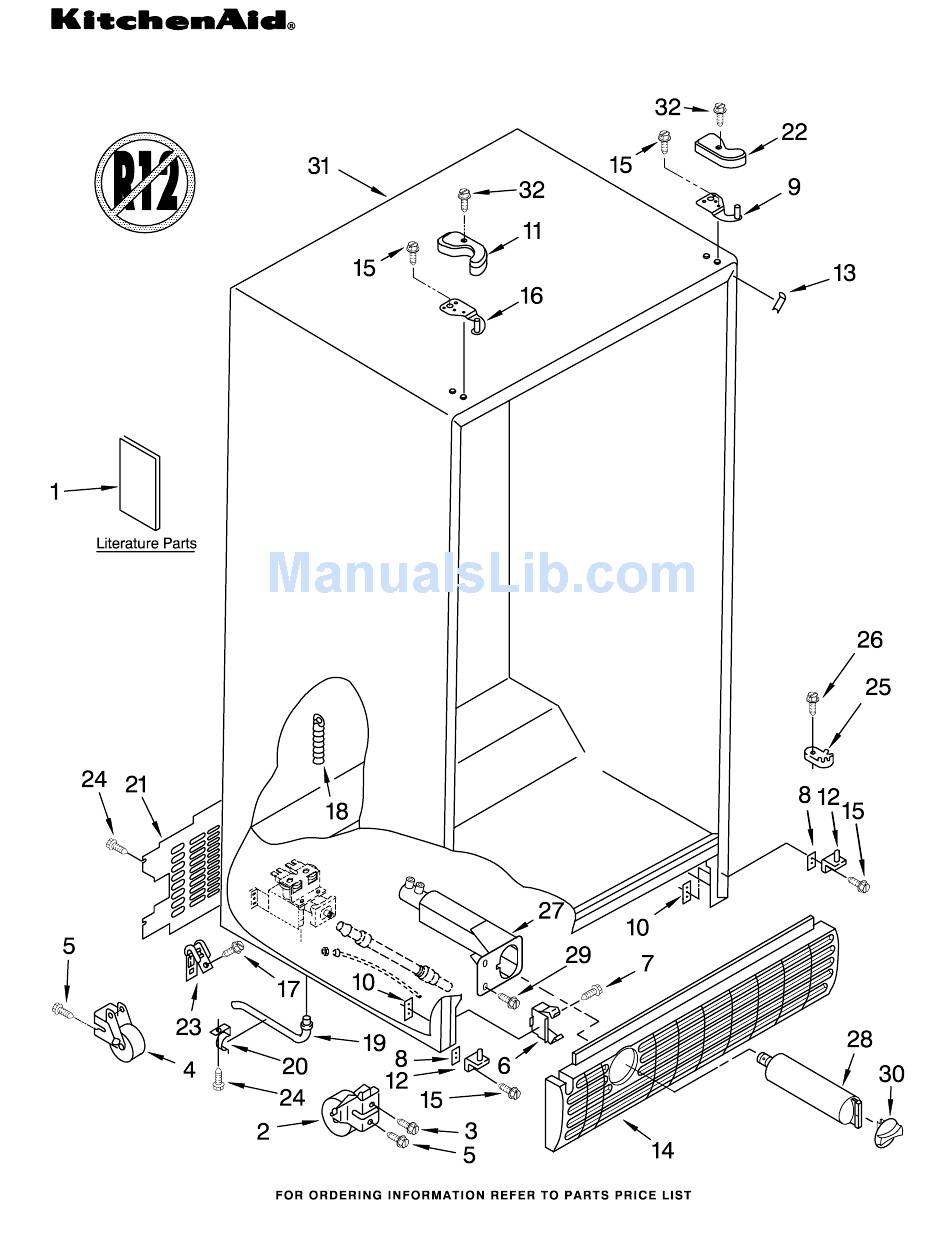

    CABINET PARTS For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION LITERATURE PARTS LIT2254906 Use & Care Guide LIT2255385 Service & Wiring Sheet LIT2260957 Energy Label LIT2220407 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2)
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS 8198611 For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2256035 Bracket, Dual Crisper 2256037 Wire Harness, Dual Crisper 2206273 Ladder, Shelf (2)
  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION 2195975 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14 & 15) 2188669 Snack Pan (Includes #7)
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSRG25FKSS05 (Stainless Steel) 8198611...
  • Page 6 FREEZER LINER PARTS For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2223539 Basket, Tall Track, Basket−Dual 2223708 Right Side 2223709 Left Side 2211746 Shelf, Slide Out Upper...
  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKSS05 (Stainless Steel) 8198611...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKSS05 Illus. Part 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary...
  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSRG25FKSS05 (Stainless Steel) 8198611...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2219830S Stainless Steel 2218122 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Handle 2188635S Stainless Steel Door Gasket, Magnetic 2221313 Black 98654 Screw 2203690 Stud, Handle...
  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSRG25FKSS05 (Stainless Steel) 8198611...
  • Page 12 FREEZER DOOR PARTS For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2216569S Stainless Steel Handle 2188635S Stainless Steel 2203690 Stud, Handle 488208 Screw 3400012 Screw 98654 Screw 2171070 Shelf Bin (4) Door Gasket,...
  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSRG25FKSS05 (Stainless Steel) 8198611...
  • Page 14 DISPENSER FRONT PARTS For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670B Black 2209718 Water Fitting...
  • Page 15: Air Flow Parts

    2176759 Fan Grommet (2) 2206504 Harness, Fan Evaporator, And Heater, Bi−Metal 2155789 Gasket Cover 2172840 Wire Tie 2203876 Gasket 2206314 Cover, Evaporator 489355 Screw 489478 Screw 2203595 Support, R.S 2203596 Support, L.S 8198611 AIR FLOW PARTS For Models: KSRG25FKSS05 (Stainless Steel)
  • Page 16: Control Parts

    2149705 Light Switch 2161282 Thermostat 2213489 Adaptive Defrost Control 489398 Screw (2) 2200096 Cover, Light Lens 627068 Screw CONTROL PARTS For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION 2181741 Slide, Air Control 2172906 Grommet, Light Bar 2161466 Slide, Thermostat 489084 Screw (2)
  • Page 17: Unit Parts

    UNIT PARTS For Models: KSRG25FKSS05 (Stainless Steel) 8198611...
  • Page 18 Compressor Capacitor 999532 (Production) 4387764 (Service) 2255798 Tube, Condenser to Heat Loop 509812 Screw Grommet 2216914 Clip, Condenser UNIT PARTS For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION 489478 Screw 2209611 Evaporator 2161324 Clamp 2206005 Fan, Motor 1105523 Tray, Evaporator...
  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSRG25FKSS05 (Stainless Steel) 8198611...
  • Page 20 ICEMAKER PARTS For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION 2256096 Fitting, Water Tube 2255012 Tube, Filter Outlet 2188744 Tube, Filter Inlet 628379 Clip, Fuse 489478 Screw 2188746 Valve, Solenoid 2208136 Tube Clamp 2174358 Cover 488649 Screw 628228 Mold & Heater...
  • Page 21 (Black) 4392899 Brush Touch−Up Kit (Biscuit) Important: The spray paint is not to be used where the paint may make contact with the door gaskets. 8198611 For Models: KSRG25FKSS05 (Stainless Steel) Illus. Part DESCRIPTION Miscellaneous 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4 x 108")
