Icemaker Parts
Table of Contents
CABINET PARTS
REFRIGERATOR
For Models: KSRG25FKSS04
(Stainless Steel)
5−06 Printed In U.S.A. (kdj)
Part No. 8198306
1

Advertisement

loading

  Related Manuals for KitchenAid KSRG25FKSS04

  Summary of Contents for KitchenAid KSRG25FKSS04

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSRG25FKSS04 (Stainless Steel) 5−06 Printed In U.S.A. (kdj) Part No. 8198306...

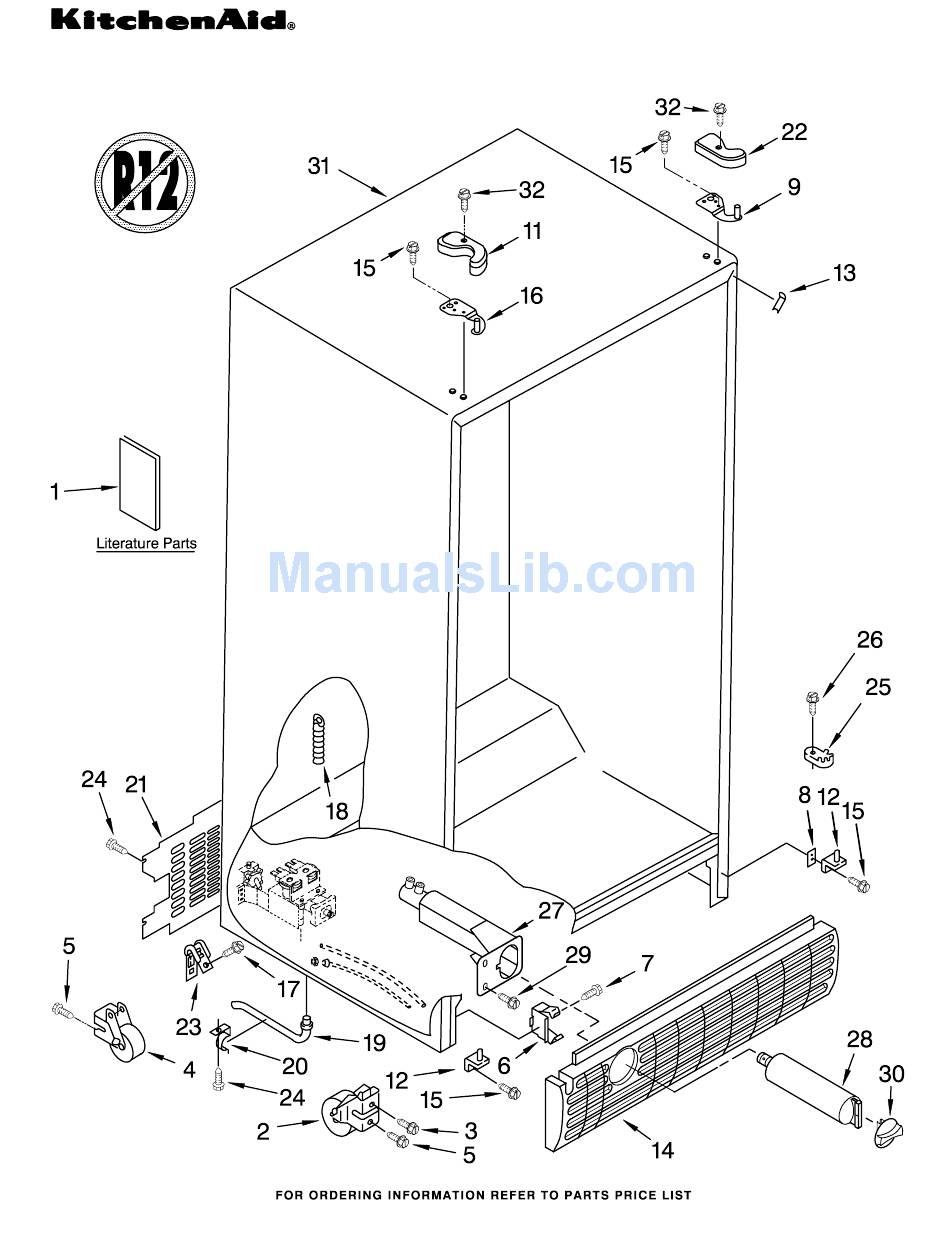

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION LITERATURE PARTS LIT2254906 Use & Care Guide LIT2255385 Service & Wiring Sheet LIT2220281 Energy Label LIT2220407 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2) 489427 Screw 2155013 Clip, Grille 489478 Screw...

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2196485 Stud Assembly 2206273 Ladder, Shelf (2) 3400894 Screw 486298 Screw (2) 487539 Screw 2179404 Rack, Wine &...

  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION 2195975 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14 & 15) 2209677 Snack Pan (Includes #7) 2179243 Trim, Handle 2255144 Glass, Cover 2223356 Cover, Crisper...

  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSRG25FKSS04 (Stainless Steel) 8198306...
  • Page 6 FREEZER LINER PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2181765 Basket, Tall Track, Basket−Dual 2216106 Right Side 2216107 Left Side 2211746 Shelf, Slide Out Upper 2171766 Basket, Front Shelf Track 2181760 Right Side...

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKSS04 (Stainless Steel) 8198306...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...

  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSRG25FKSS04 (Stainless Steel) 8198306...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2219830S Stainless Steel 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Handle 2188635S Stainless Steel Door Gasket, Magnetic 2221313 Black 98654 Screw 2203690 Stud, Handle 488208 Screw 2182178 Door Closer, Upper Cam...

  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSRG25FKSS04 (Stainless Steel) 8198306...
  • Page 12 FREEZER DOOR PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2216569S Stainless Steel Handle 2204454S Stainless Steel 2203690 Stud, Handle 489463 Screw 3400012 Screw 98654 Screw 2171070 Shelf Bin (4) Door Gasket, Magnetic 2221314 Black 2219982 Trim, Door Shelf...

  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSRG25FKSS04 (Stainless Steel) 8198306...
  • Page 14 DISPENSER FRONT PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196165 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670B Black 2209718 Water Fitting Assembly (Includes Water Tube) Lever, Ice...

  • Page 15: Air Flow Parts

    AIR FLOW PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan Evaporator, And Heater, Bi−Metal 2155789 Gasket Cover...

  • Page 16: Control Parts

    CONTROL PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2172906 Grommet, Light Bar 1115374 Clip, Wiring 8201785 Control Box 2161466 Slide, Thermostat 2196001 Tube Barrier, 1115375 Clip, Wiring Thermostat 489084 Screw (2) 2161308 Connecting Rod 489214 Screw (3) 2179920 Light Bar (RC) 489391 Fastner, Push−On...

  • Page 17: Unit Parts

    UNIT PARTS For Models: KSRG25FKSS04 (Stainless Steel) 8198306...
  • Page 18 UNIT PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2161324 Clamp 2186495 Guard, Fan 486692 Speed Nut 2206005 Fan, Motor 2172840 Strap 2190685 Fan, Blade 1105523 Tray, Evaporator 489427 Screw 2204484 Condenser 2149294 Heat Shield 488649 Screw Assembly 2199167 Drier...

  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSRG25FKSS04 (Stainless Steel) 8198306...
  • Page 20 ICEMAKER PARTS For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part DESCRIPTION 2198677 Connector, Water Tube 2198578 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2200083 Nut, Compression 2211507 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression 489385 Tube Clamp 2174358 Cover...
  • Page 21 PARTS NOT ILLUSTRATED For Models: KSRG25FKSS04 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum 799340 Enamel, Black (4 Feet) (1 Qt. Uncut) Customer Touch−Up Material 479502 Tape, Vinyl 799344 Enamel, White (3/4 x 108")
