- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Part No. 8198008 5−06 Printed In U.S.A. (mek)

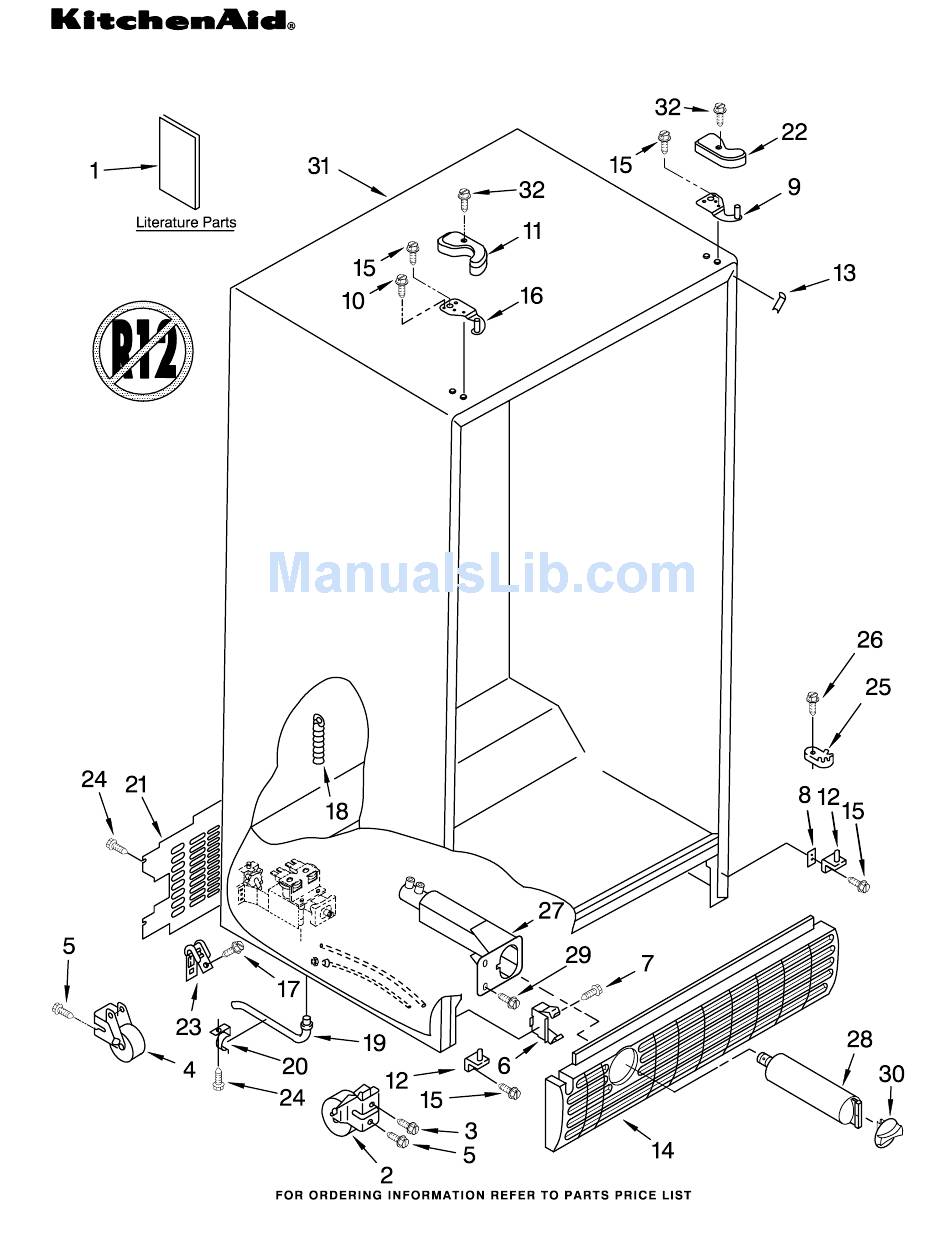

- Page 2 CABINET PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2217075 Hinge Bottom (2) 549193 Clamp, Service LITERATURE PARTS Filler, Wrapper Cord 2196094 White 489084 Screw LIT2220276 Use & Care Guide 2196097 Black 2155311 Door Closer, LIT2220109 Service &...
- Page 3 REFRIGERATOR LINER PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2196485 Stud Assembly 3400894 Screw 2196483 Stud Assembly 2206273 Ladder, Shelf (2) 8281158 Screw 486298 Screw (2) 487539 Screw...
-
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2195975 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15) 2209677 Snack Pan 2179243 Trim, Handle 2189526 Glass, Cover 2174250 Cover, Crisper... - Page 5 FREEZER LINER PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) 8198008...
- Page 6 FREEZER LINER PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2181765 Basket, Tall Track, Basket−Dual 2216106 Right Side 2216107 Left Side 2211746 Shelf, Slide Out Upper 2171766 Basket, Front Shelf Track...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) 8198008... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2198591 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary 2198602 Block, Blade...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) 8198008... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2207327W White 2207327B Black 2207327T Biscuit 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Insert, Handle 2173825 White 2173829 Black 2186863T Biscuit Door Gasket, Magnetic 2221302 Mist Beige...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) 8198008... - Page 12 FREEZER DOOR PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2216569W White 2216569B Black 2216569T Biscuit Retainer, Insert 2194777W White 2194777B Black 2194777T Biscuit End Cap (2) 2194778W White 2194778B Black 2194778T Biscuit 489463 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) 8198008... - Page 14 DISPENSER FRONT PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Lever, Ice Overlay, Front Housing, Dispenser Dispenser Cover (Not Serviced) 2180259 White (Not Available, 489000 Screw 2180261 Black Order #23) 2194719 Retainer, Levers 2186850 Biscuit 2187406 Wire Assembly...
- Page 15 AIR FLOW PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan Evaporator, And Heater, Bi−Metal...
- Page 16 CONTROL PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8201785 Control Box 2181741 Slide, Air Control 2181741 Slide, Air Control 1115374 Clip, Wiring 1115374 Clip, Wiring 2196001 Tube Barrier, 2196001 Tube Barrier, 2172906 Grommet, Light Bar 2172906 1115375 Clip, Wiring...
- Page 17 UNIT PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) 8198008...
- Page 18 UNIT PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8281232 Screw 2209611 Evaporator 486692 Speed Nut 2186495 Guard, Fan 2161324 Clamp 2190685 Fan, Blade 2172840 Strap 2206005 Fan, Motor 2204484 Condenser 489427 Screw 1105523 Tray, Evaporator Assembly...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) 8198008... - Page 20 ICEMAKER PARTS For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2198677 Connector, Water Tube 2198578 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2211507 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression 489385 Tube Clamp 2174358 Cover...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRG25FKWH02, KSRG25FKBL02, KSRG25FKBT02 (White) (Black) (Biscuit) Illus. Part Illus. Part DESCRIPTION DESCRIPTION Miscellaneous Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum (4 Feet) Customer Touch−Up Material 479502 Tape, Vinyl (3/4 x 108") 350942 Primer, White 876370 Kit, Insulation (12 Oz.
