- Page 1 CABINET PARTS REFRIGERATOR For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) 6−03 Litho In U.S.A. (kdj) Part No. 8198598...
-

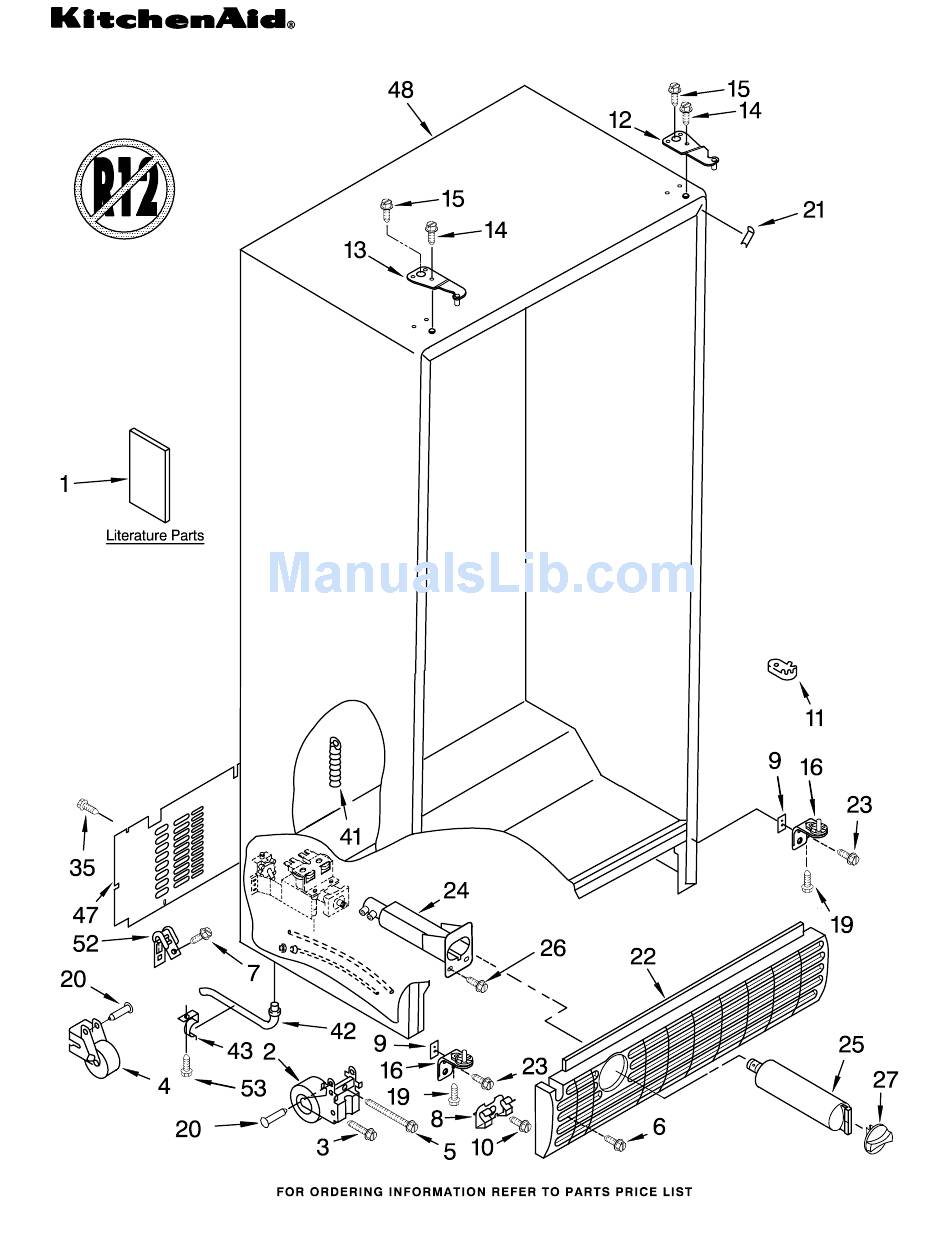

Page 2: Cabinet Parts
CABINET PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489497 Screw Hinge Top, RC LITERATURE PARTS 2199840 Housing, Water 2203124W White Filter LIT2221544 Use & Care Guide 2203124T Biscuit 2203220 Water Filter LIT2221548 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1116793 Cover, Thermistor 2213442 Thermistor 2209204 Clip, Thermistor 2220377 Air Baffle 2181796 Ladder, Shelf 489478 Screw 2179404 Rack, Wine & Egg 2214367 Air Diffuser Assembly 2162085 Socket... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2203054 Shelf Assembly Cantilever 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side 2203034 Cover, Meat Pan (Includes Items 13, 14 & 19) 2203038 Glass, Cover 2174250 Cover, Crisper (Includes 2, 3, 4,... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) 8198598... - Page 6 FREEZER LINER PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2209204 Clip, Thermistor 2199860 Door, Ice Compartment 2196485 Stud Assembly 2174478 Eyelet, Roller 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 2213442 Thermistor 2199867 Trim, Basket...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) 8198598... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2214579 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2206503 Wiring Assembly, Ice Dispenser 489399 Screw 2205716 Coupling, Motor 489355 Screw 2162085 Socket, Light 2199895 Ice Container...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) 8198598... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #8) 2210773W White 2210773T Biscuit 2210773B Black 2218122 Door, Compartment 2256010 Trim, Door Shelf 3196537 Screw 2199986 Bin, Door Trim, Door (Top) 2207312W White 2207312T Biscuit...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) 8198598... - Page 12 FREEZER DOOR PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes Item #8 And Dispenser Front Parts) 2214473W White 2214473T Biscuit 2214473B Black Retainer, Handle 2207309W White 2207309T Biscuit 2207309B Black 2207309S Stainless Steel 3400012 Screw 3196537 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) 8198598... - Page 14 DISPENSER FRONT PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3369138 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2180323 White 2186860 Biscuit...
-
Page 15: Unit Parts
UNIT PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) 8198598... - Page 16 UNIT PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 2223393 Compressor 2190685 Fan, Blade Following Parts Not Illustrated (Includes Items 2205983 Condenser 12 & 27) and Optional Parts Not Included Assembly (Also Order...
-
Page 17: Air Flow Parts
AIR FLOW PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2210746 Air Scoop 2208184 Block, Fan Scroll 2199931 Air Duct Freezer 2259385 Fan Motor 2169142 Fan Blade 2208959 Fan Grommet 2182146 Duct, Icemaker 2187710 Harness, Fan... -
Page 18: Control Parts
CONTROL PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2203081 Overlay 2221538 Retainer, Circuit Board 2214765 Circuit Board, Interface 2199717 Control Box 2203108 Light Lens 940014 Hole Plug 2162085 Light Socket 850166 Light Bulb 2214376 Control Box Harness 8198598... -
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) 8198598... - Page 20 ICEMAKER PARTS For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2203127 Tube, Filter Outlet 2214613 Tube, Filter Inlet 628379 Clip, Fuse 2181940 Tube, Water 2181939 Insert, Tube 489478 Screw 2199838 Valve, Solenoid 627018 Nut, Compression 2208136 Clip, Water Tube 2203024 Tube, Water Inlet...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSBS25FKWH02, KSBS25FKBT02, KSBS25FKBL02, KSBS25FKSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Refinishing Material Miscellaneous Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum 799340 Enamel, Black (4 Feet) (1 Qt.
