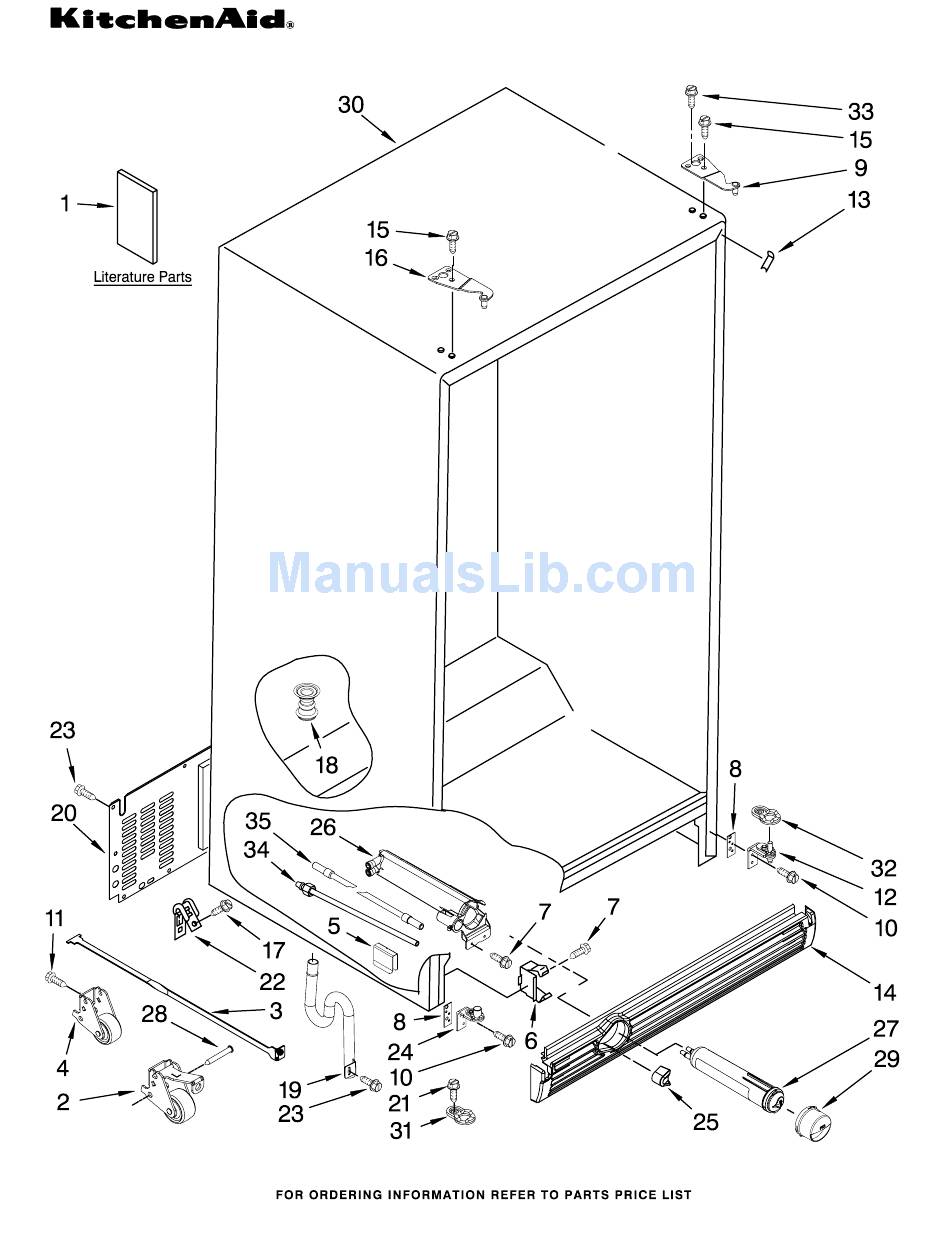

CABINET PARTS
REFRIGERATOR
For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01
(White)
(Black)
(Stainless Steel)
02−09 Printed In U.S.A. (jdc) (eeb)
1
Part No. W10251941 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSBS25IVBL01 and is the answer not in the manual?

Questions and answers

Summary of Contents for KitchenAid KSBS25IVBL01

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) (Black) (Stainless Steel) 02−09 Printed In U.S.A. (jdc) (eeb) Part No. W10251941 Rev. A...
  • Page 2: Cabinet Parts

    For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 Illus. Part DESCRIPTION Literature Parts W10162462 Use & Care Guide W10142175 Service & Wiring Sheet W10194146 Energy Guide 2220407 Modular Icemaker Service Sheet 2223996 Installation Instructions Front Roller Asm 2306950 Left Side 2306951 Right Side...
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 W10251941 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223524 Escutcheon, Meat Pan Control 2223339 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2)
  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 1 W10235943 Shelf Assembly, 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan 2301023 Snack Pan 2301548 Right Side 2301549 Left Side...
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) (Black) (Stainless Steel) W10251941...
  • Page 6 FREEZER LINER PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2223691 Basket, Deep (2) 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket 2224053 Front−Frzr.Basket Shelf Track 2223787 Right Side...
  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) (Black) (Stainless Steel) W10251941...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) Illus. Part 2223317 Ice Bin 2317256 Crusher Bin 2317240 Auger 2258220 Washer 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) (Black) (Stainless Steel) W10251941...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2307195W White 2307195B Black 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can Trim, Top 2224096W White 2224096B Black 2224096S Stainless Steel Door Gasket,...
  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) (Black) (Stainless Steel) W10251941...
  • Page 12 FREEZER DOOR PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10214263W White W10214263B Black Handle 2223817W White 2223817B Black 2223817S Stainless Steel Trim, Top 2224095W White 2224095B Black 2224095S Stainless Steel...
  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) (Black) (Stainless Steel) W10251941...
  • Page 14 DISPENSER FRONT PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 4 W10224328 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow W10189531 White...
  • Page 15: Air Flow Parts

    For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket (2) 2223986 Fan Grommet (2)
  • Page 16: Control Parts

    CONTROL PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) Illus. Part DESCRIPTION 1 W10175589 Control Box (Includes #3) 2223882 Heat Shield Asm 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb (Black) (Stainless Steel) W10251941...
  • Page 17: Unit Parts

    UNIT PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) (Black) (Stainless Steel) W10251941...
  • Page 18 For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 Illus. Part DESCRIPTION 777070 Screw 2 W10139483 Fan, Blade 3 W10131059 Condenser Assembly 4 W10171469 Screw 3400524 Screw (6) 2223703 Housing, Control Board 2223351 Tube Suction 2161302 Sleeve 2215676 Cover, Terminal 2319835 Grommet−Cond.(4) 2185788 Clamp, Cable...
  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) (Black) (Stainless Steel) W10251941...
  • Page 20 ICEMAKER PARTS For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 (White) Illus. Part DESCRIPTION 489084 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 5 W10210603 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 9 W10122527 Mold & Heater Assembly (Also...
  • Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSBS25IVWH01, KSBS25IVBL01, KSBS25IVSS01 Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 4392901 Biscuit 8171357 Graphite PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392899 Biscuit 80051 Graphite W10134625 Apollo Grey...
