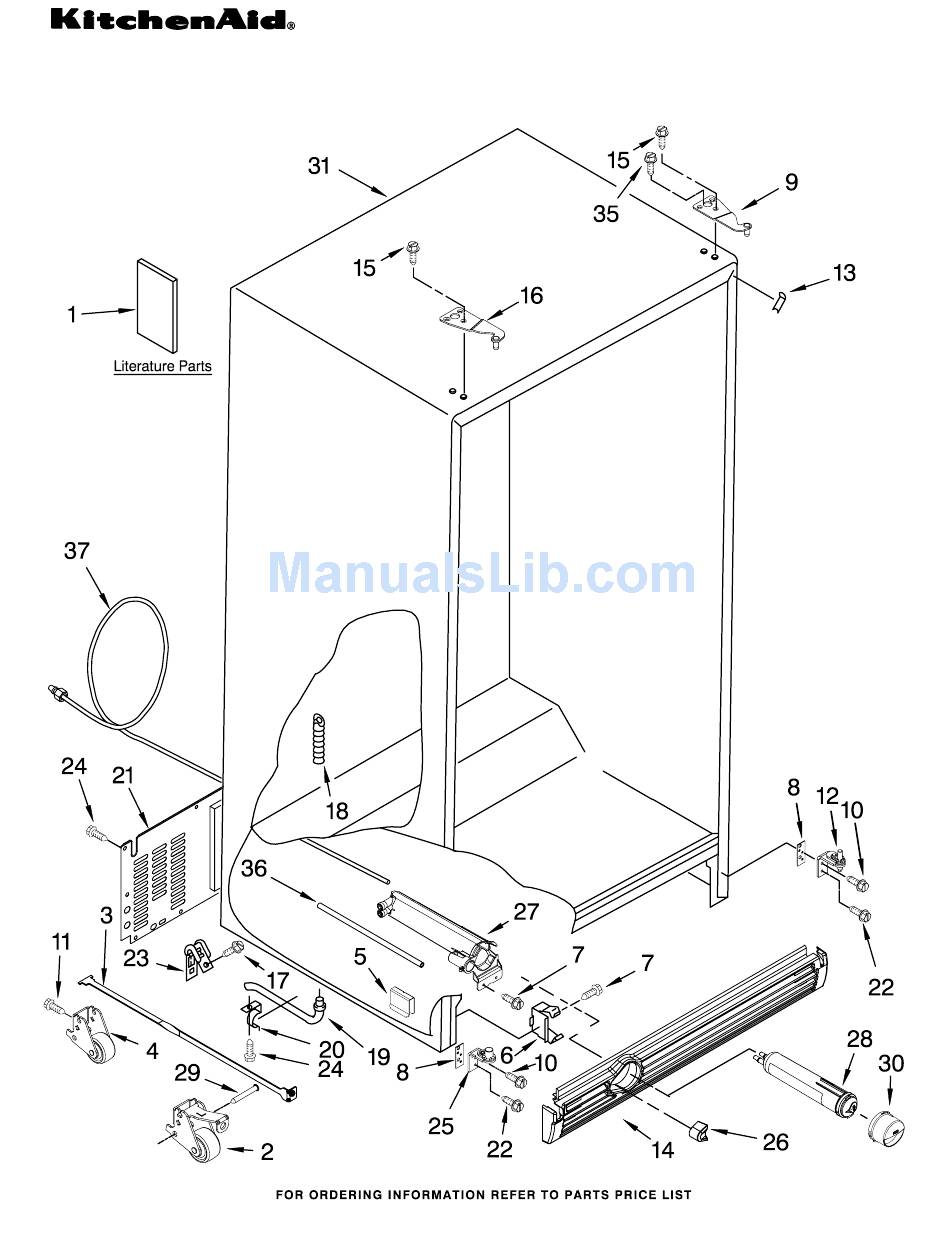

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) (Black) (Stainless Steel) 11−05 Printed In U.S.A. (kdr) Part No. 8214628...
-
Page 2: Cabinet Parts
For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 Illus. Part DESCRIPTION Literature Parts 2315217 Use & Care Guide 2223419 Service & Wiring Sheet 2315150 Energy Guide 628370 Modular Icemaker Service Sheet 2223996 Installation Instructions Front Roller Asm 2306950 Left Side 2306951 Right Side... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 8214628 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part 2224061 Shelf Assembly, 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2223525 Cover, Meat Pan 2301023 Snack Pan 2301548 Right Side 2301549 Left Side... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) (Black) (Stainless Steel) 8214628... - Page 6 FREEZER LINER PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) Illus. Part 2223777 Spacer, Slide (2) 2223691 Basket, Deep (2) 2223500 Shelf Assembly, 2224053 Front, Basket 2223787 Right Side 2223788 Left Side 2223681 Shelf, Fixed 2223694 Basket, Lower 486298 Screw...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) (Black) (Stainless Steel) 8214628... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) Illus. Part 2223317 Ice Bin 2255580 Crusher Bin 2258222 Auger 2258220 Washer 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) (Black) (Stainless Steel) 8214628... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) Illus. Part 2223825W White 2223825T Biscuit 2223825B Black 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2165792K Butter Dish 2224096W White 2224096T Biscuit 2224096B Black 2224096S Stainless Steel...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) (Black) (Stainless Steel) 8214628... - Page 12 FREEZER DOOR PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) Illus. Part 2223921W White 2223921T Biscuit 2223921B Black 2223817W White 2223817T Biscuit 2223817B Black 2223817S Stainless Steel 2224095W White 2224095T Biscuit 2224095B Black 2224095S Stainless Steel 3196537 Screw 3400012 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) (Black) (Stainless Steel) 8214628... - Page 14 DISPENSER FRONT PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) Illus. Part 3196537 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism 2205686 Mechanism Delay 2206670W White 2206670T Biscuit 2206670B Black 2221562 Water Fitting...
-
Page 15: Air Flow Parts
For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2188824 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2223986 Fan Grommet (2) -
Page 16: Control Parts
CONTROL PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) Illus. Part 2306989 Control Box 2223882 Heat Shield Asm 2307037 Control Board Asm 2223506 Light Lens, 2223857 Light Socket 2223678 Light Bulb (Black) (Stainless Steel) DESCRIPTION (Includes #6) Control Box... -
Page 17: Unit Parts
UNIT PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) (Black) (Stainless Steel) 8214628... - Page 18 For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 Illus. Part DESCRIPTION 777070 Screw 2225834 Fan, Blade 2223315 Condenser Assembly 8281197 Screw 3400524 Screw (6) 2223703 Housing, Control Board 2223351 Tube Suction 2161302 Sleeve 2301979 Plate, Mounting 8281196 Screw 2215676 Cover, Terminal 2185788 Clamp, Cable...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) (Black) (Stainless Steel) 8214628... - Page 20 ICEMAKER PARTS For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 (White) (Biscuit) Illus. Part 489084 Screw 2256096 Fitting, Water 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold & Heater 628356 Cup, Water Fill...
-
Page 21: Optional Parts
For Models: KSBS25INWH01, KSBS25INBT01, KSBS25INBL01, KSBS25INSS01 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White (12 Oz. Spray Can) 350939 Enamel, Black (12 Oz. Spray Can) 350930 Enamel, White (12 Oz. Spray Can) 4392901 Enamel, Biscuit (12 Oz.
