CABINET PARTS
REFRIGERATOR
For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01
(White)
(Biscuit)
(Black)
8−03 Litho In U.S.A. (kdj)
Part No. 8198035 Rev. A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSBS25FKBL01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSBS25FKBL01

Summary of Contents for KitchenAid KSBS25FKBL01

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01 (White) (Biscuit) (Black) 8−03 Litho In U.S.A. (kdj) Part No. 8198035 Rev. A...

  • Page 2: Cabinet Parts

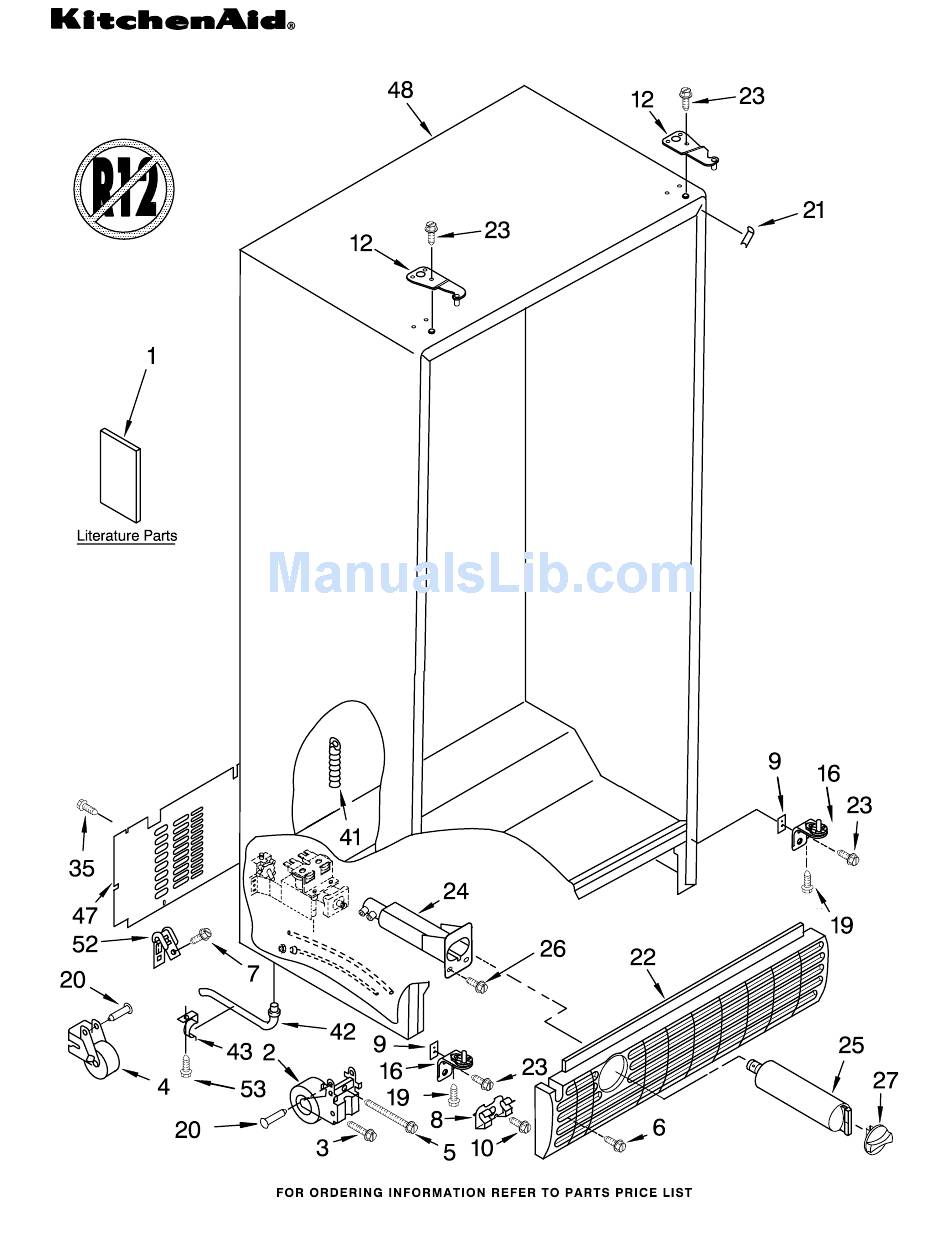

    CABINET PARTS For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01 (White) (Biscuit) (Black) Illus. Part DESCRIPTION LITERATURE PARTS LIT2221516 Use & Care Guide LIT2214447 Service & Wiring Sheet LIT2220332 Energy Label LIT628370 Modular Icemaker Service Sheet 2203007 Front Roller (2) 3400512 Bolt 2203008 Roller (Rear) (2) 3400511 Bolt 488649 Screw 489478 Screw...
