- Page 1 CABINET PARTS REFRIGERATOR For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) 3−07 Printed In U.S.A. (rrm) Part No. W10118474 Rev. A...
-
Page 2: Cabinet Parts

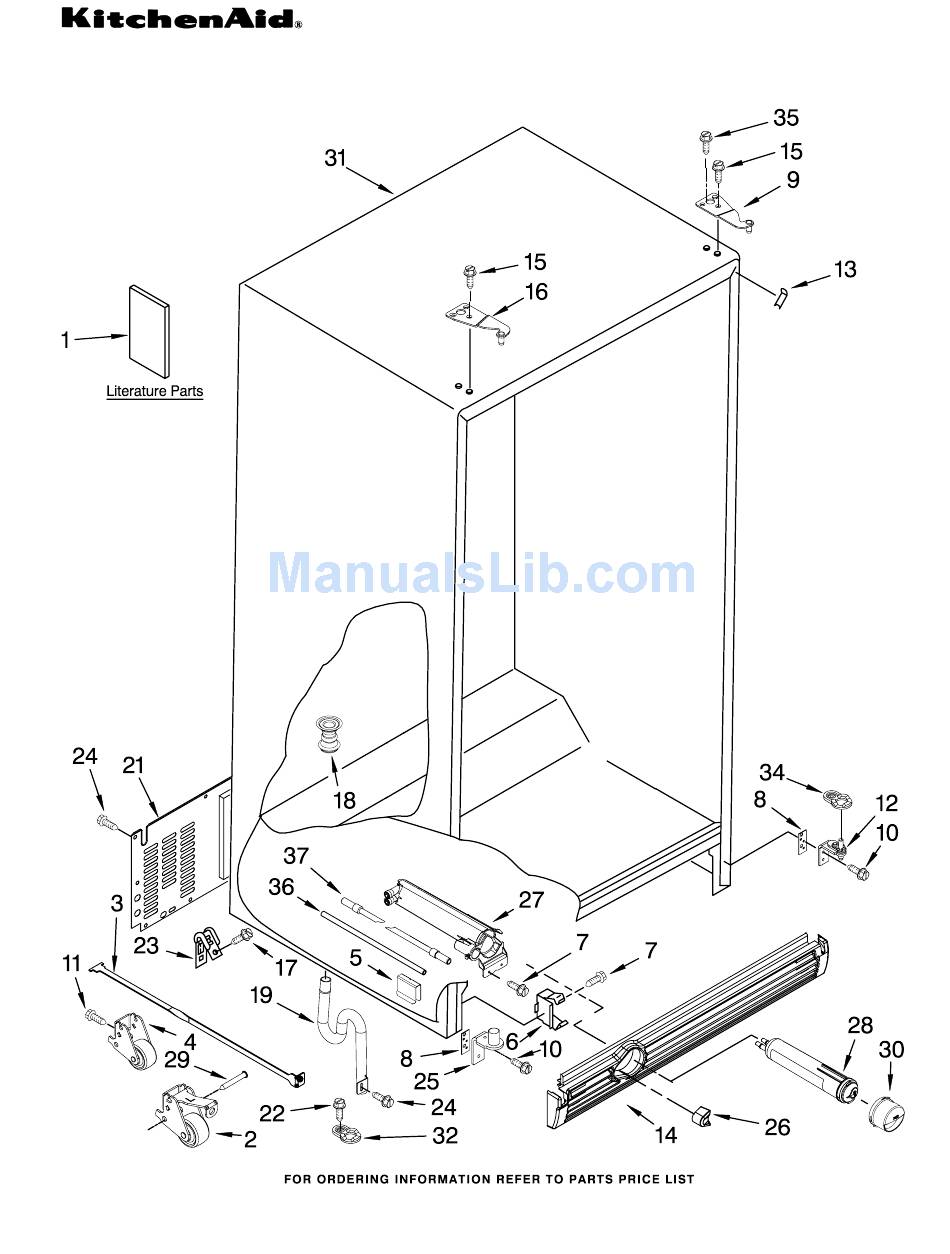

CABINET PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2307152 Hinge Assembly, Literature Parts 2307179 Hinge Assembly, Bottom−FC 2318583 Use & Care Guide Bottom−RC Includes # (34) Includes # (32) 2223419 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door Control 489084 Screw... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 & 20) 2301023 Snack Pan (Includes 30 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) W10118474... - Page 6 FREEZER LINER PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2223811 Basket, Deep (2) 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket Shelf Track 2223787 Right Side 2223788 Left Side 2223681 Shelf, Fixed...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) W10118474... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2223317 Ice Bin 2255580 Crusher Bin 2258222 Auger 2258220 Washer 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) W10118474... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2307195W White 2307195T Biscuit 2307195B Black 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2165792K Butter Dish Trim, Top 2224096W White 2224096T Biscuit 2224096B Black...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) W10118474... - Page 12 FREEZER DOOR PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2320116W White 2320116T Biscuit 2320116B Black Handle 2223817W White 2223817T Biscuit 2223817B Black 2223817S Stainless Steel Trim, Top 2224095W White 2224095T Biscuit...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) W10118474... - Page 14 DISPENSER FRONT PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White 2206670T Biscuit...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2319914 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket (2) 2223986 Fan Grommet (2) -
Page 16: Control Parts
CONTROL PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2319753 Control Box (Includes #6) 2223882 Heat Shield Asm 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2223678 Light Bulb W10118474... -
Page 17: Unit Parts
UNIT PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) W10118474... - Page 18 UNIT PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 777070 Screw 2223398 Tray, Evaporator Following Parts Not Illustrated 2225834 Fan, Blade 2224022 Heat Shield and Optional Parts Not Included 2223315 Condenser 2317845 Drier Assembly...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) W10118474... - Page 20 ICEMAKER PARTS For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 489084 Screw 2256096 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold & Heater Assembly (Also Order 542638 628356 Cup, Water Fill...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSBS25INWH02, KSBS25INBT02, KSBS25INBL02, KSBS25INSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY Miscellaneous Refinishing Material (12 oz.) 212643 Sealer, Gum 799340 Black 350942 Primer, White (4 Feet) 799344 White 350939 Black...
