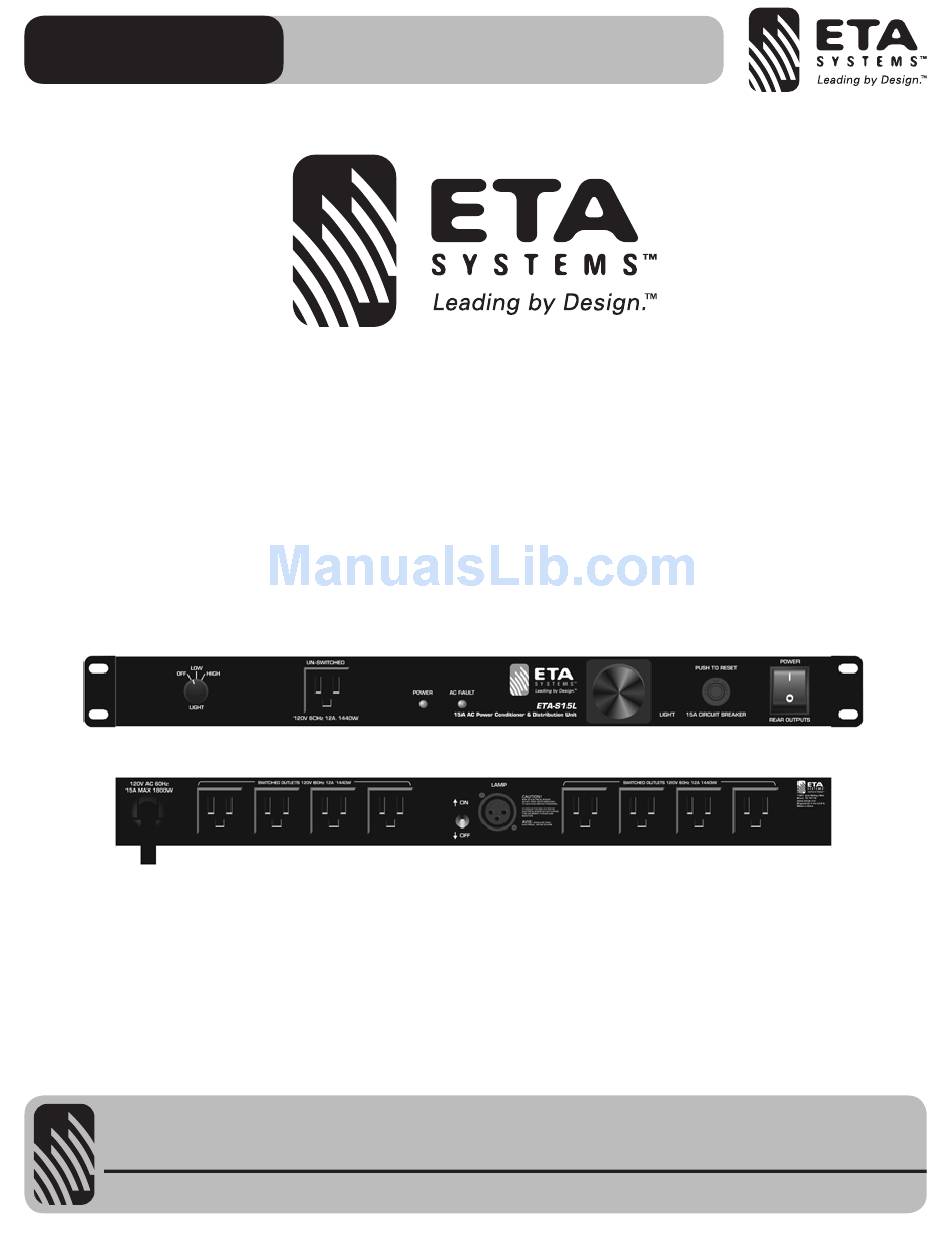

- Page 1 ETA-S15L Power Conditioner & Distribution Unit ETA-S15L Power Conditioner & Distribution Unit 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 1 – ETAsys.com Specifications are subject to change without notice.
-
Page 2: Table Of Contents
ETA-S15L Power Conditioner & Distribution Unit TABLE OF CONTENTS Safety Instructions ...3 Introduction ...5 Key Features ...5 Applications...5 Front Panel Features...6 Rear Panel Features...6 Installation ...6 Specifications ...7 Warranty ...8 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 –... -
Page 3: Safety Instructions
This appliance shall not be exposed to dripping or splashing water and that no object filled with liquids such as vases shall be placed on apparatus. 17. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the receptacle. 18. The mains plug of the power supply cord shall remain readily operable. - Page 4 • Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact ETA Systems. Do not to attempt to continue operation of the product as this may cause fire or electric shock.
-
Page 5: Introduction
ETA-S15L Power Conditioner & Distribution Unit INTRODUCTION Thank you for purchasing the ETA Systems ETA-S15L AC Power Conditioner & Distribution Unit. The ETA-S15L has been designed to meet most installation requirements for AC power distribution and equipment power protection. To light your rack, the ETA-S15L has incorporated a front panel pull-out dimmable LED tube light. The rear of the rack can be illuminated by the optional Atlas Power 16” gooseneck LED lamp (AP-GNL18) connected via an XLR style socket. LED lamps are far superior in longevity along with heat reduction when compared to traditional incandescent lamps and the XLR base mounts offer a better connection point over commonly used BNC type bases. The ETA-S15L features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are incorporated to reduce noise from Electromagnetic Interference (EMI) from such items as electric motors and switching power supplies. The benefit of these filters can be seen on video products or audibly by reducing static pops and external signal interference. -
Page 6: Front Panel Features
REAR PANEL FEATURES 1. AC Mains Input – Connect the 9' (3m) power cord to a 15A 120VAC outlet to provide power to the ETA-S15L. 2. AC Power Outlets – These eight outlets are “Live” when the front panel power switch is activated. 3. XLR Light Socket – A 12VDC XLR light socket provides power for the optional, Atlas Power, AP-GNL18 light. 4. Light Socket Power Switch – This switch turns the XLR light socket ON / OFF. INSTALLATION Before installing, we strongly suggest you read the entire manual to ensure you benefit from all the features of the ETA-S15L. The ETA-S15L can be placed on a shelf or rack mounted in a standard 19" width rack. When rack mounted, placement within the rack is... -
Page 7: Specifications
5.5lbs (2.49kg) Power Consumption 8 watts Agency Listings MET (UL 1449 Code) 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. ETA-S15L Power Conditioner & Distribution Unit Telephone: 800-321-6699 • Fax: 800-996-3821 – 7 – Specifications are subject to change without notice. ETAsys.com... -
Page 8: Limited Warranty
This warranty shall extend from the date of purchase for a period of one year. Additionally, fuses and lamps carry no warranty. ETA Systems will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
