ETA Systems ETA-PD8A Quick Start Manual

Ac power conditioner & distribution unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

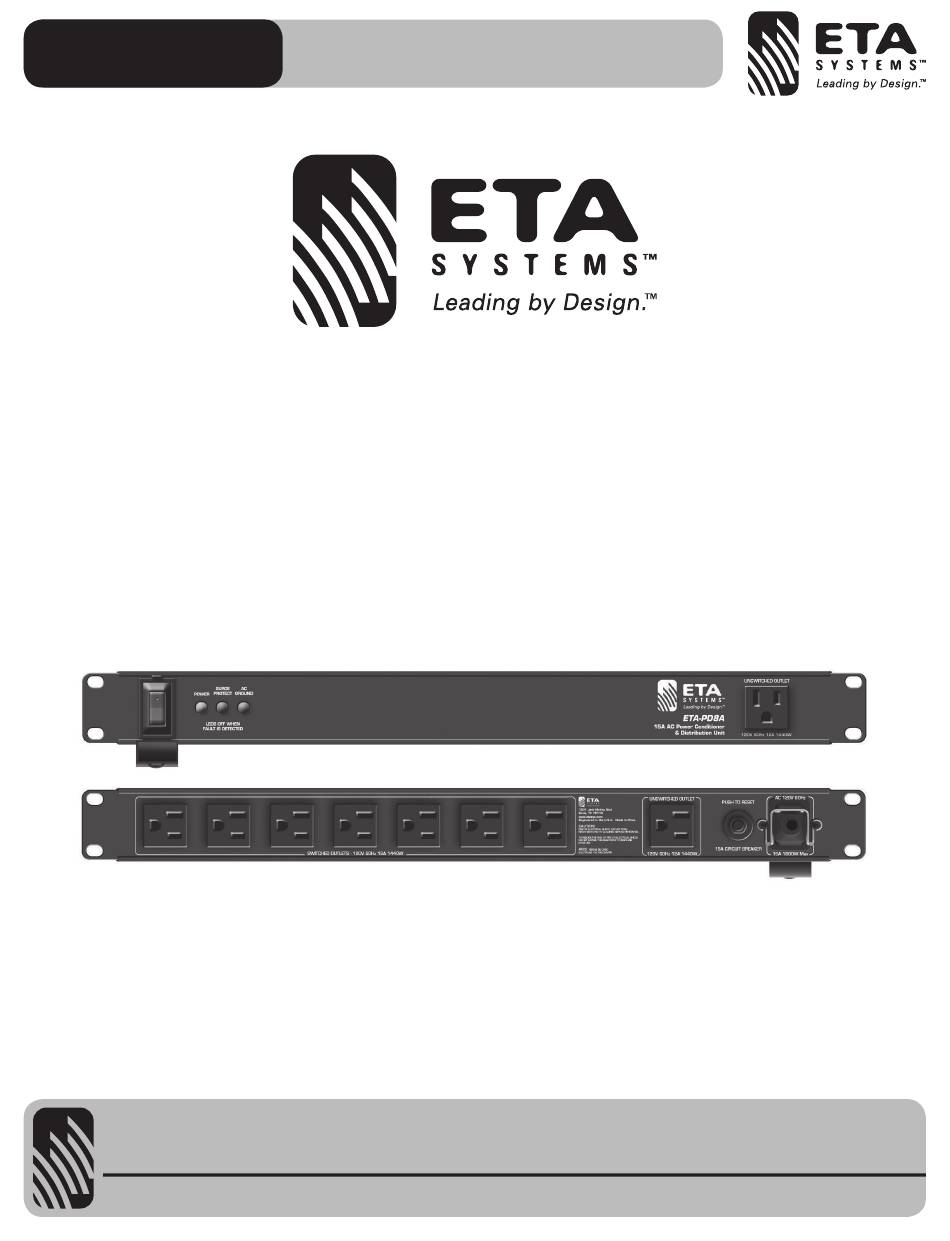

ETA-PD8A
AC Power Conditioner & Distribution Unit
ETA-PD8A
AC Power Conditioner & Distribution Unit
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800-321-6699 • Fax: 800-996-3821
– 1 –
ETAsys.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETA-PD8A and is the answer not in the manual?

Questions and answers

Related Manuals for ETA Systems ETA-PD8A

Summary of Contents for ETA Systems ETA-PD8A

  • Page 1 ETA-PD8A AC Power Conditioner & Distribution Unit ETA-PD8A AC Power Conditioner & Distribution Unit 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 1 – ETAsys.com Specifications are subject to change without notice.

  • Page 2: Table Of Contents

    ETA-PD8A AC Power Conditioner & Distribution Unit TABLE OF CONTENTS Important Safety Instructions ........................3 Introduction ............................5 Key Features and Applications ....................... 6 Front Panel Description ........................... 7 Rear Panel Description ..........................8 Installation .............................. 9 AC Power Cord Retainer System ......................9 Specifications ............................

  • Page 3: Important Safety Instructions

    ETA-PD8A AC Power Conditioner & Distribution Unit IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 4 Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact ETA Systems. Do not to attempt to continue operation with the product as this may cause fire or electric shock: •...

  • Page 5: Introduction

    The ETA-PD8A is unique in that the integrator can select the power cord length that is required for the installation. A removable 12' IEC power cord with a retainer bracket is supplied with the unit. A shorter or longer cord can be purchased separately if needed.

  • Page 6: Key Features And Applications

    APPLICATIONS The ETA-PD8A was designed to be flexible with features that allow it to be used in a variety of applications. The ETA-PD8A can be used solely for protection against voltage surges or for AC distribution. If fuzzy video or frequent static pops occur, the AC power conditioning may eliminate or reduce those inconveniences.

  • Page 7: Front Panel Description

    2. Power Switch & Cover To turn the ETA-PD8A On or Off, press the switch to the On or Off position. When in the On position and AC voltage is present the power LED will illuminate. The ETA-PD8A incorporates a power switch cover to prevent accidental pressing of the power switch.

  • Page 8: Rear Panel Description

    The 15A rated breaker will open if the combined draw of all AC outlets exceeds 15A. Note: The breaker is designed to exceed its rating for a short period of time. If the breaker is tripped, the load must first be removed from the ETA-PD8A before pushing to reset.

  • Page 9: Installation

    AC POWER CORD RETAINER SYSTEM Connect the IEC 14 Gauge 12' (4m) power cord to a 15A 120VAC outlet to provide power to the ETA-PD8A by aligning the pins of the cord to the pins on the chassis and inserting the cord. Press firmly to assure a good connection.
  • Page 10 ETA-PD8A AC Power Conditioner & Distribution Unit NOTES 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 10 – ETAsys.com Specifications are subject to change without notice.

  • Page 11: Specifications

    ETA-PD8A AC Power Conditioner & Distribution Unit SPECIFICATIONS Type Power Conditioner & Suppressor Load Rating Safety Listings ETL (UL 60065 Standard) Front Panel Outlets 1 Unswitched Activation Switch Rocker with Security Cover Indicators AC Power On, Outlets Active, AC Fault, Ground...

  • Page 12: Warranty

    This warranty shall extend from the date of purchase for a period of one year. Additionally, fuses and lamps carry no warranty. ETA Systems will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
