Chapter 10. Locations

This chapter presents the location of ThinkPad W700, W700ds, W701, and W701ds features and hardware.

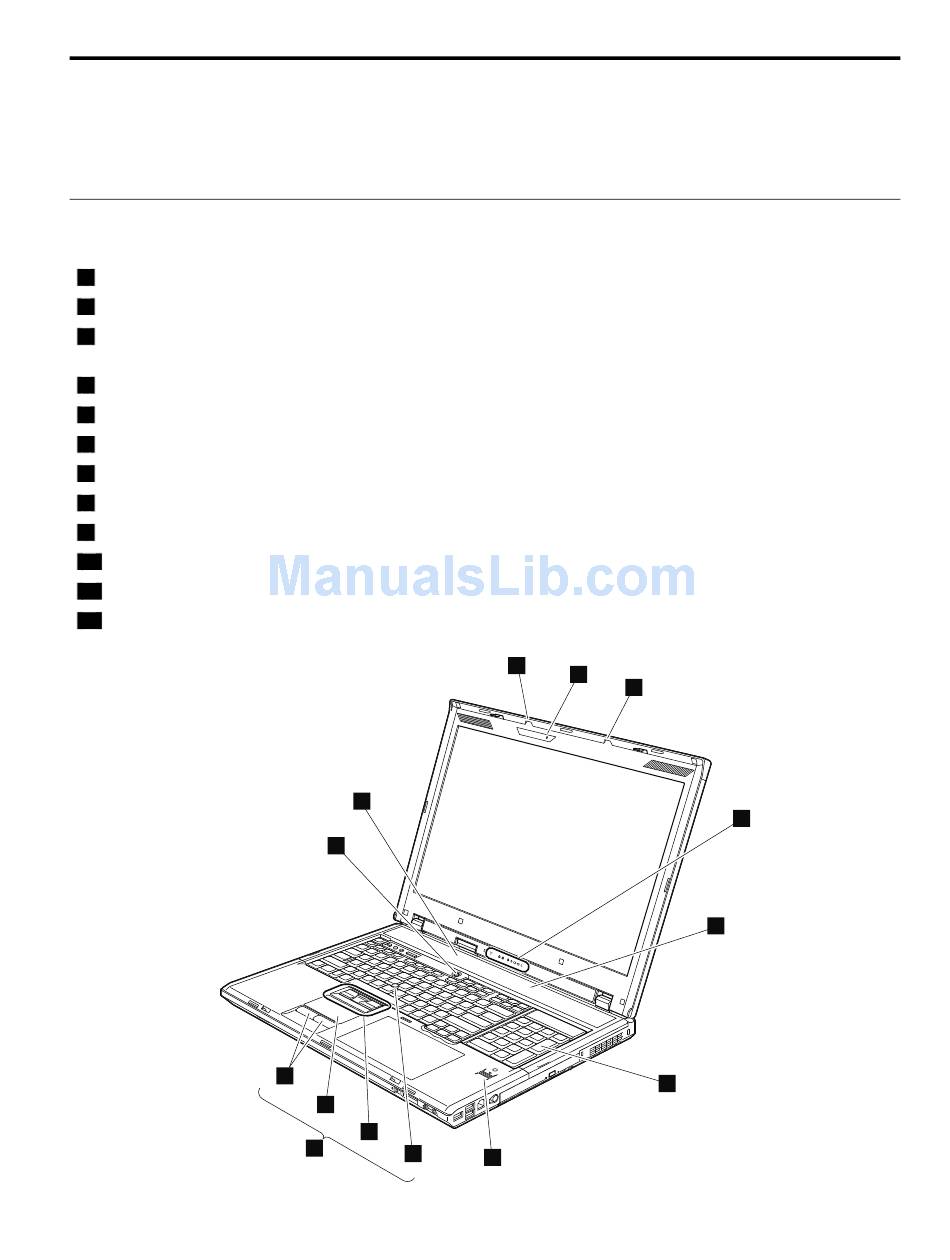

Front view (for ThinkPad W700 and W701)

1
ThinkLight
2
Integrated camera (for some models)
3
Status indicators
Note: For the description of each indicator, see Chapter 6 "Status indicators" on page 55.
4
Stereo speakers
5
Numeric keypad
6
Fingerprint reader
7
TrackPoint pointing stick
8
TrackPoint buttons
9
Touch pad
10
Touch pad buttons
11
UltraNav
12
Power switch
© Copyright Lenovo 2008, 2011
4
12
10
9
8
11
7
1
2
1
5
6
3
4
