Table 34. Removal steps of VGA thermal device/fan (continued)
Table 35. Installation of the VGA thermal device/fan in ThinkPad W700 and W700ds
When installing:

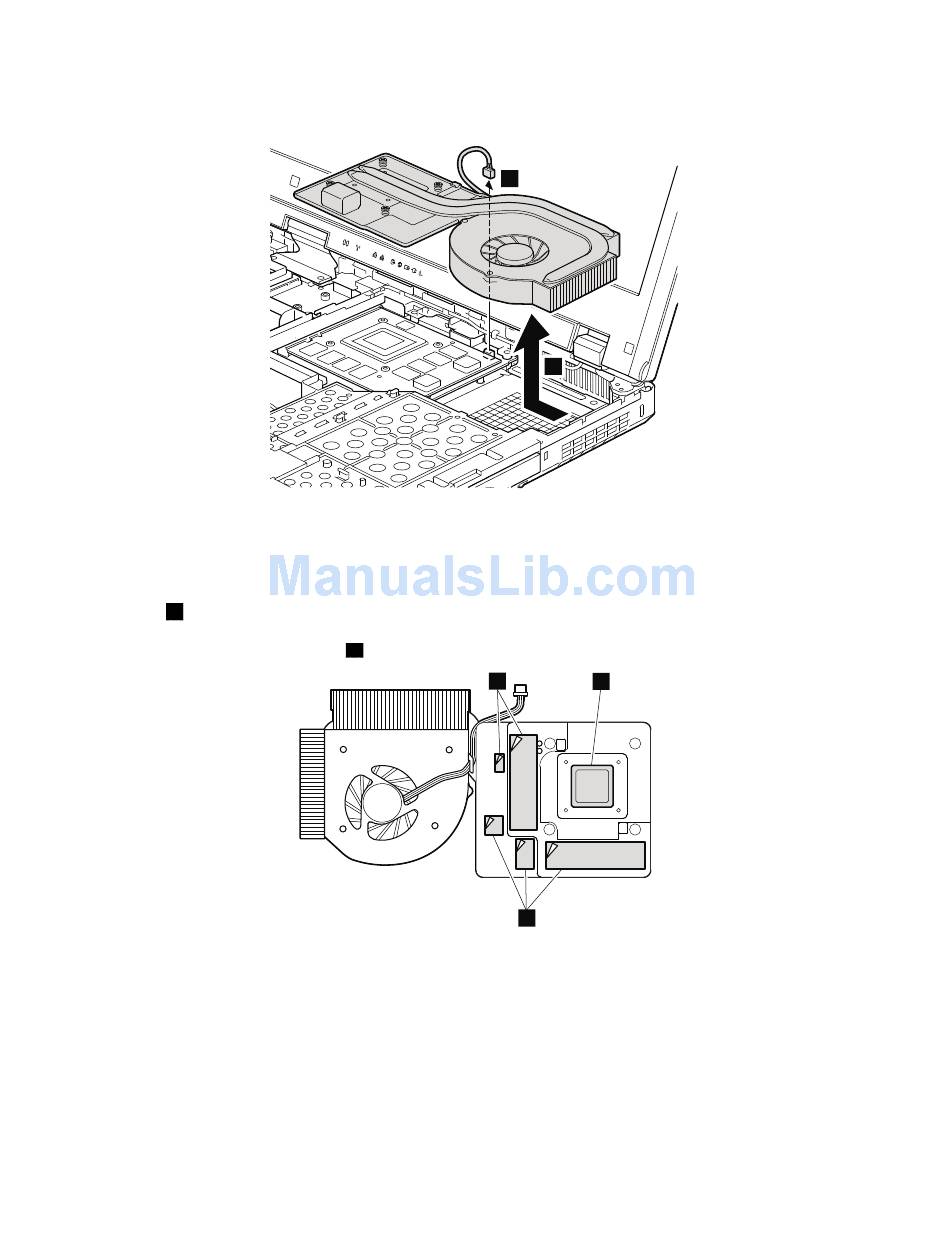

• Before you attach the fan assembly to the computer, apply thermal grease, at an amount of 0.2 grams, on the
b
part marked as in the following figure. Either too much or too less application of grease can cause a thermal
problem due to imperfect contact with a component. For the new VGA thermal device/fan, you need to peel the
thin films off from the rubbers marked
• Make sure that the fan connector is attached firmly.
104
ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual
6
a
.
a
a
7
b
