Prepare the Disk Array

To install the disk array, the HP service representative performs the following tasks:

1. Assemble final hardware.

2. Load the microprogram updates for SCSI/Fibre Channel support.

3. Install the SCSI or Fibre Channel adapters and cabling.

4. Install and format the logical devices using the disk array's service processor (SVP).

The disk array ports have special modes that must be set for certain middleware

environments; for example, IRIS FailSafe or SGI Advanced Cluster Environment

(ACE) software. Use the LUN Configuration Manager software to set the host mode

for each port.

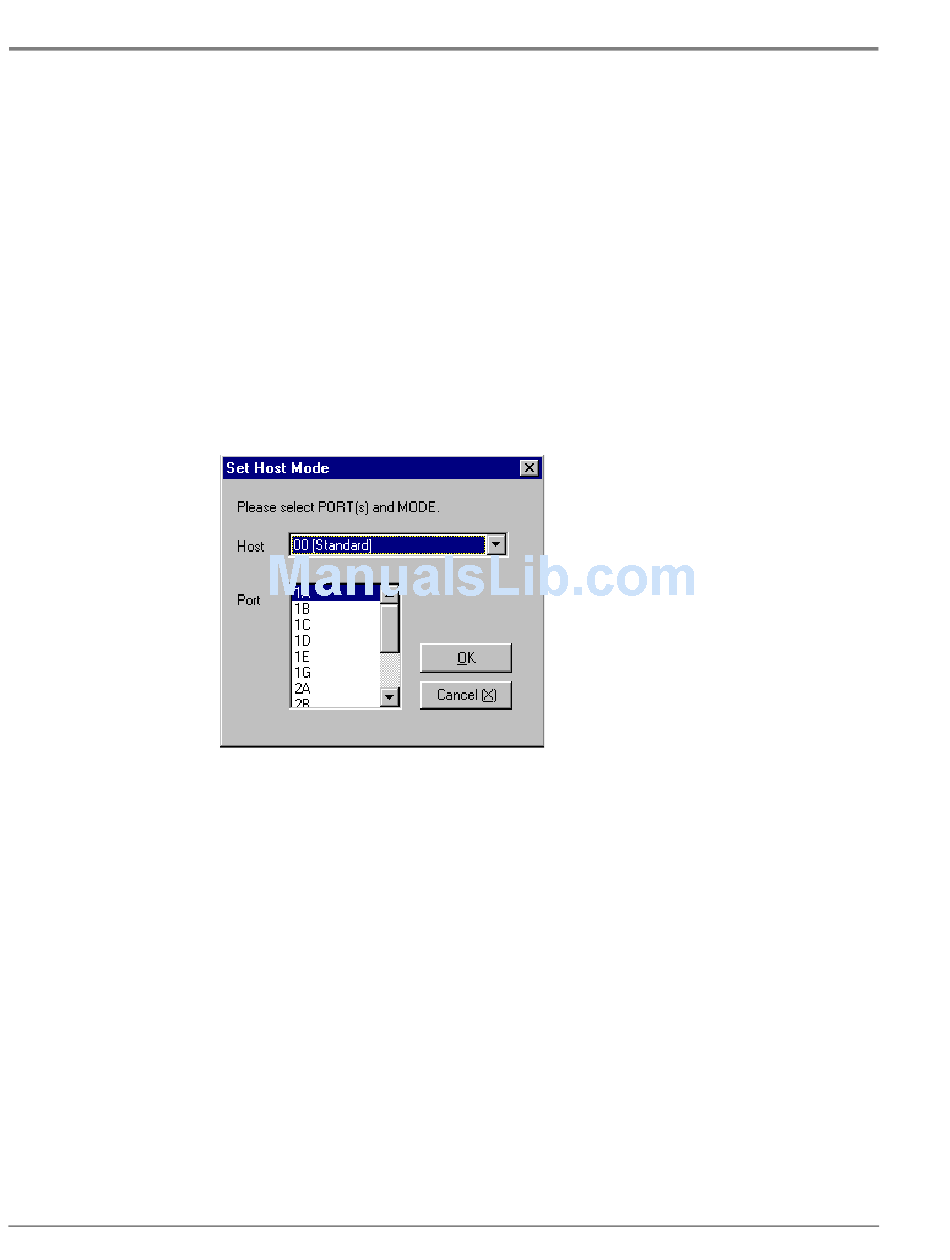

Figure 1. LUN Configuration Manager Set Host Mode Dialog Box

The required host mode setting for IRIX operations is 00.

You must configure the disk array Fibre Channel ports to define the Fibre Channel

parameters and port addresses. Use the Fibre Parameter window in LUN Configuration

Manager to configure the disk array Fibre Channel ports.

hp surestore disk array xp operating system configuration guide: SGI IRIX
