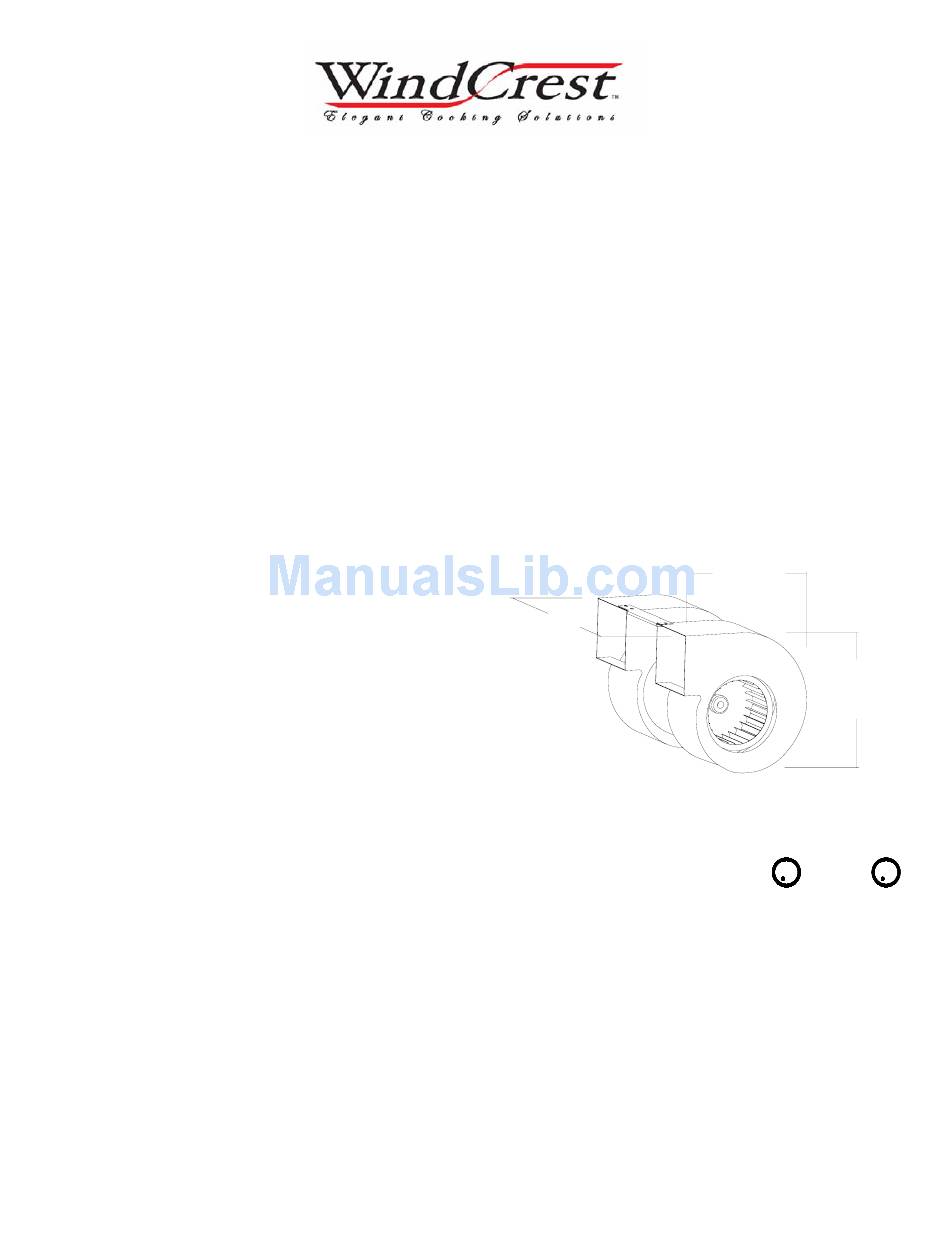

Wind Crest VEN060I Install Quick Specs

Internally Mounted Ventilators – Install Quick Specs
Installation Type & Discharge Direction
Mounted in hood. Can be mounted for vertical
or horizontal discharge, depending on the
hood specified (see individual hood
specifications)
CFM Rating
640 CFM – Single Blower
1280 CFM – Dual Blower applications
Minimum Duct Size
8" round @ 640 CFM
10" round @ 1280 CFM
Maximum Equivalent Straight Duct Length
50 feet
Equivalent Straight Lengths
•
1 foot of 8" or 10" duct = 1 foot
•
1 foot of 3 ¼" x 14" rectangular = 1 foot
•
8" round 90 degree Elbow = 5 feet
•
10" round 90 degree Elbow = 3 feet
•
Wall or Roof Cap = 2 feet
Standard Features
•
Adaptable to all Wind Crest hoods
•
Brushed alumized steel construction
•
Thermally protected, permanently
lubricated motor
•
Dynamically balanced 5 ½" diameter
blower wheel
•
Neoprene resilient anti-vibration mounted
•
Low RPM for very quiet performance
•
Two VEN060I internal blowers can be
mounted in the following hoods. This
requires a dual wire harness (part #10220).
o WSL and WCL hoods 48" or wider
o WER 60" wide hoods
o PSL 66" wide hoods
© 2006 Wind Crest by CNP Industries
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.
VEN060I
Ventilator Motor Ratings*
Hoods without Heat Lamps:
2.8 Amps @ 120 V AC, 60 Hz
Hoods with Heat Lamps:
7.2 Amps @ 120 V AC, 60 Hz
*For maximum power supply required, refer to
hood series selected.
Ventilator Carton Weight:
VEN060I = 23 lbs.
14"
3 /
9 "
4
1 /
9 "
4
VEN060I
U L
LISTED 7Z66 C
When installed in Wind Crest hoods
1
U L
