Wind Crest VEN150E Install Quick Specs

Externally Mounted Ventilators – Install Quick Specs
Installation Type & Discharge Direction
Mounted outside. Can be mounted on exterior
roof or wall.

CFM Rating

1500 CFM

Minimum Duct Size

10" round

Maximum Equivalent Straight Duct Length

50 feet

Equivalent Straight Lengths

•
1 foot of 8" or 10" duct = 1 foot
•
1 foot of 3 ¼" x 14" rectangular = 1 foot
•
8" round 90 degree Elbow = 5 feet
•
10" round 90 degree Elbow = 3 feet
•
Wall or Roof Cap = 2 feet

Standard Features

•
Adaptable to all Wind Crest hoods
•
Weather-resistant glavanized steel
construction
•
Thermally protected, permanently
lubricated motor
•
Dynamically balanced 12" diameter blower
wheel
•
Neoprene resilient anti-vibration mounted
•
Built-in Flashing plate for roof or wall mount
•
Easily removed blower cover for periodic
cleaning

Ventilator Motor Ratings*

Hoods without Heat Lamps:
12.0 Amps @ 120 V AC, 60 Hz
Hoods with Heat Lamps:
16.4 Amps @ 120 V AC, 60 Hz
*20 Amps @ 120 V AC, 60 Hz required when
using VEN150E ventilator.
Copyright 2006 Wind Crest by CNP Industries
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.

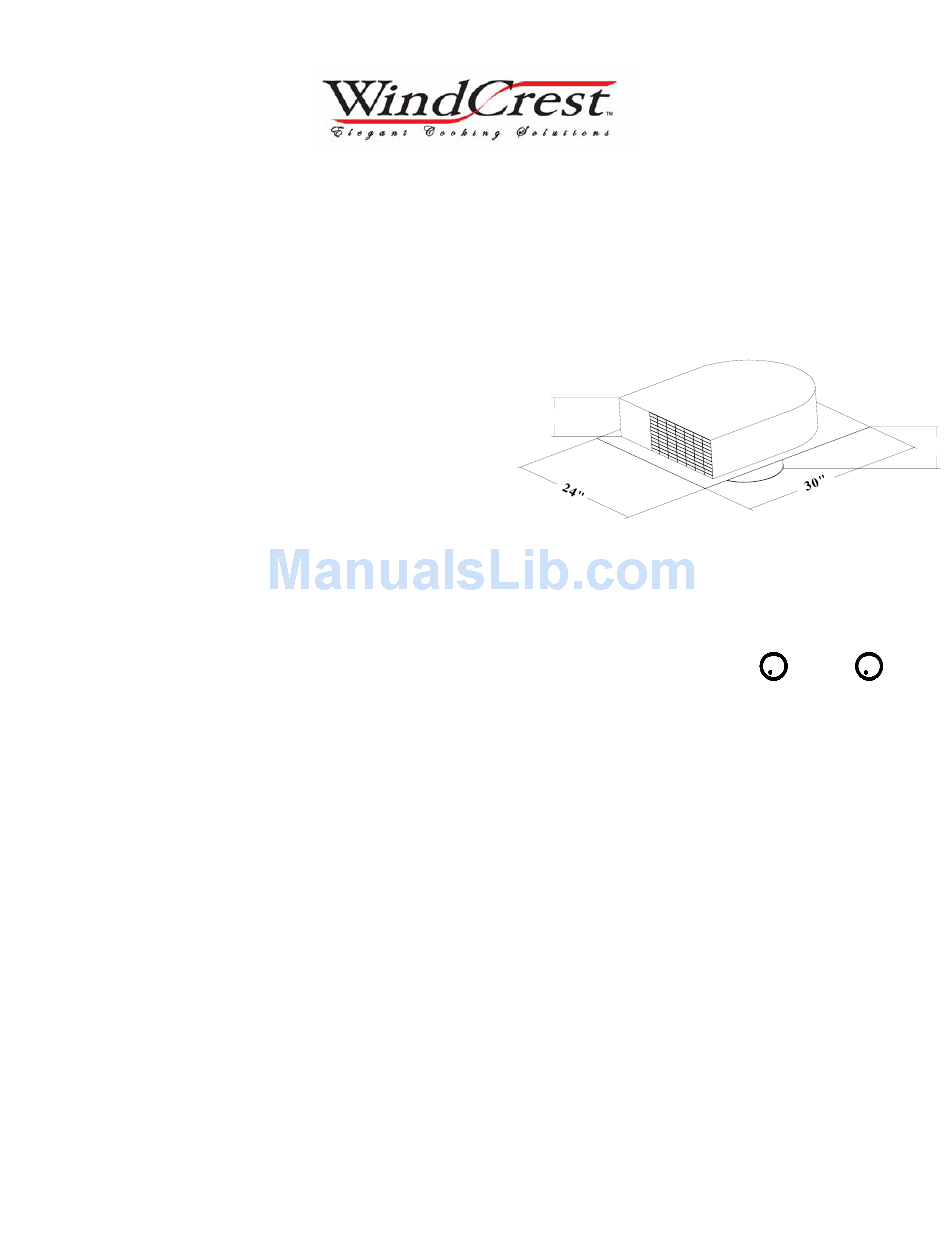

VEN150E
Ventilator Carton Weight:
VEN150E = 80 lbs.
