Wind Crest WSL Series Install Quick Specs

Installation Type & Discharge Direction
Wall – vertical discharge

Discharge Size off Hood Top

14" x 4 ¼" rectangular
Discharge Transition – purchased
separately
See "Ventilation" section for options

Standard Features

•
304 Series, 18 gauge stainless steel
•
Halogen lighting (dual 50 watt lamps 30" to
48" widths/four 50 watt lamps 54" or
greater widths) with Hi/Lo setting
•
Commercial-grade, high luster stainless
steel baffle filters
•
All Stainless Steel Finish Hoods can be
installed Indoors or Outdoors (see
Installation Instructions)
•
Widths: 30" to 60" in 6" increments

Finishes

•
Stainless Steel (S), White (W), Essence of
Copper (E) and Pewter (P)
•
Stainless Steel with Polished Chrome
Accents (SPC)

Optional Upgrades

•
250 Watt Heat Lamp Fixtures (add "H" to
hood model number) e.g. WSL304SH
•
6" or 12" Canopy Extensions in matching
finish (Model(s): 6CE30S or 12CE30S for
30" wide hood in stainless steel finish).
NOTE: Specify desired canopy height,
width and finish when ordering.
•
Chrome or Brass Rolled Pot Rails (Model:
ACCBRC or ACCBRB) –indoor use only
•
Stainless Steel Back Splash with drop-
down chrome racks supports a maximum
of 30 lbs. (BS plus width – Model: BS30)

Hood Carton Weight:

WSL304 = 68 lbs. WSL484 = 95 lbs.
WSL364 = 76 lbs. WSL544 = 100 lbs.
WSL424 = 83 lbs. WSL604 = 113 lbs.
Copyright 2006 Wind Crest by CNP Industries
Install Quick Specs are for planning purposes only. Please refer to the detailed installation instructions, prior to
.
making any cutouts

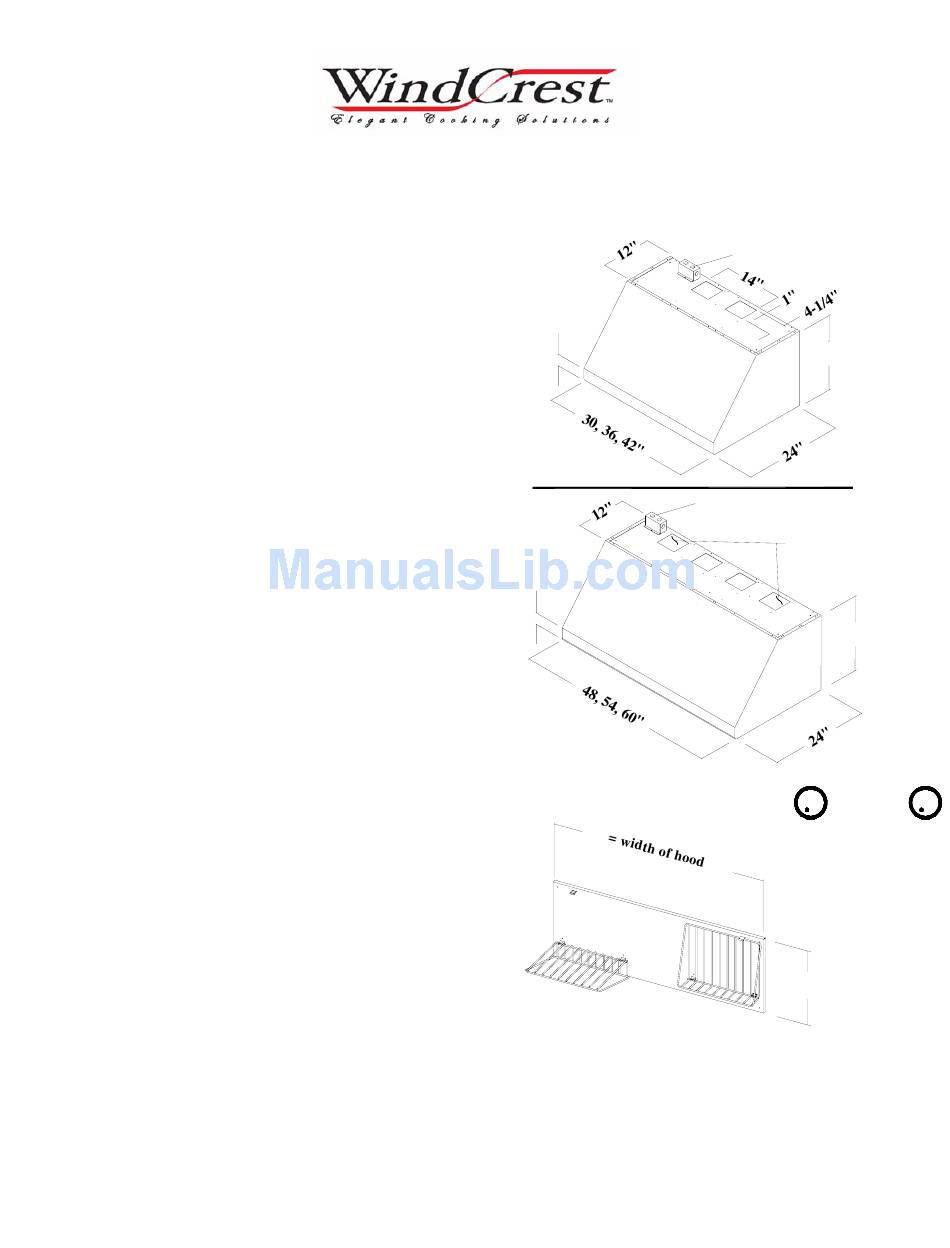

Wall Mounted Hoods – Install Quick Specs
WSL Series Hoods - 24" Depth
3"
3"
WSL Hoods
"BS" Warming Shelf Accessory with Chrome Racks
Wiring Access
18"
Wiring Access
Knockouts For
Dual Blowers
18"
U L
LISTED 7Z66 C
13"
1
U L
