Ergotron 60-578 Assembly Instructions Manual

Wm large display low profile wall mount

Hide thumbs

page of 22

/ 22
Bookmarks

Quick Links

Download this manual

www.ergotron.com

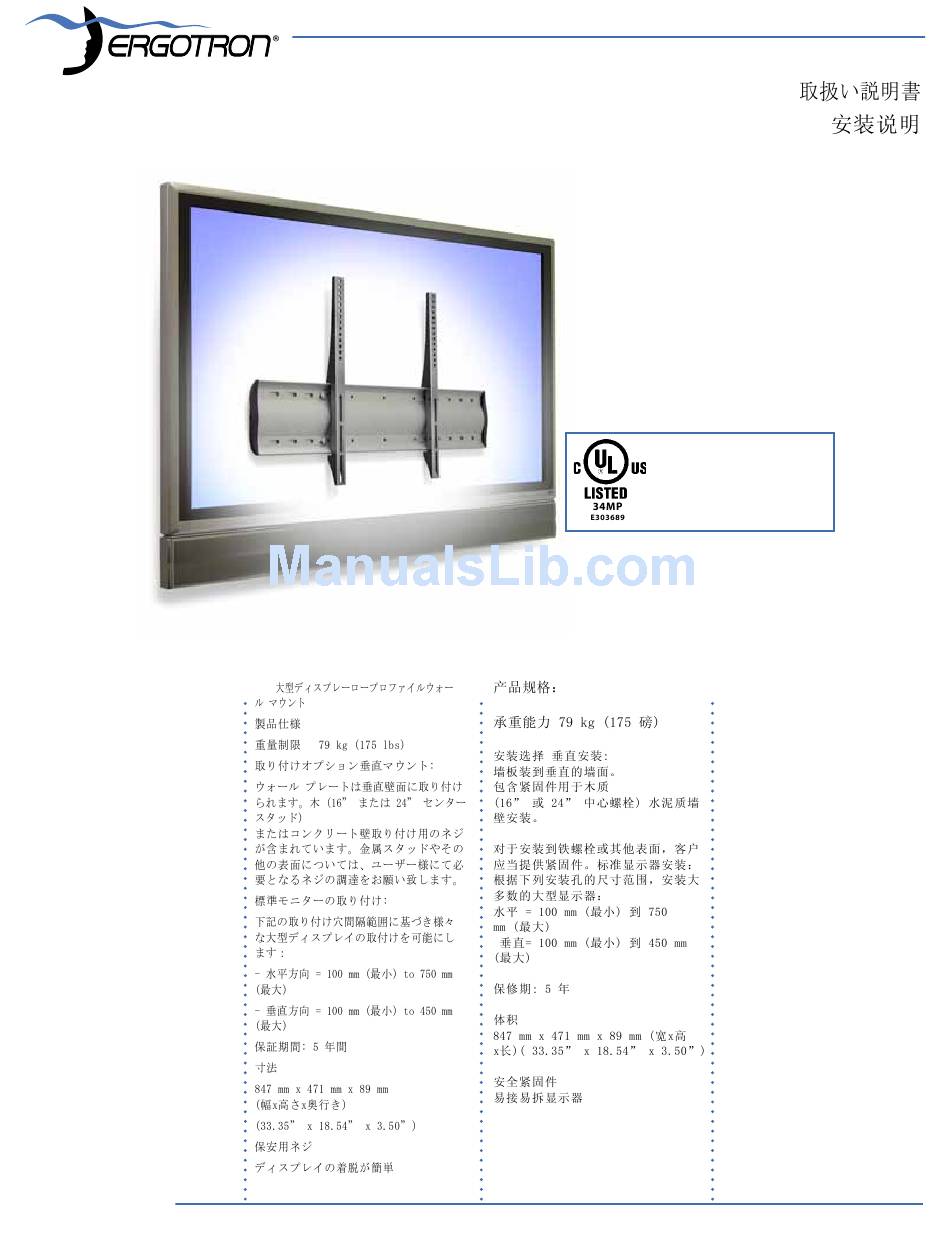

Product Speciﬁ cations

Weight Capacity 79 kg (175 lbs)

Mounting Options Verical Mount:

Wall plate attaches to vertical wall

surfaces. Includes fasteners for wood

(16" or 24" centered studs) or concrete

wall mounting. For mounting to metal

studs or other surfaces, customer must

supply fasteners.

Standards Monitor Attachment:

Attaches to most large displays based

on the mounting hole spacing range

below:

- Horizontal = 100 mm (min.) to 750

mm (max.)

- Vertical = 100 mm (min.) to 450 mm

(max.)

Warranty Terms: 5 years

Dimensions

847 mm x 471 mm x 89 mm (WxHxD)

( 33.35" x 18.54" x 3.50")

Security fasteners

Easily connect and detach display

888-60-182P-01 rev.D • 01/07

WM Large Display Low Proﬁ le Wall Mount

ASSEMBLY INSTRUCTIONS

Model 60-578

Model 60-580

Model 60-581

1 of 22

Need help?

Do you have a question about the 60-578 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ergotron 60-578

Page 1 847 mm x 471 mm x 89 mm (WxHxD) ( 33.35” x 18.54” x 3.50”) Security fasteners Easily connect and detach display 888-60-182P-01 rev.D • 01/07 WM Large Display Low Proﬁ le Wall Mount Model 60-578 Model 60-580 Model 60-581 ASSEMBLY INSTRUCTIONS 1 of 22...
Page 2 M8x80mm TOOL PENTA Stud Finder 2 of 22 M4x20mm M4x40mm M5x20mm M5x40mm M6x20mm M6x45mm M8x25mm M8x50mm Ø 3/16" (5 mm) Ø 3/8" (10 mm) Wood Concrete LONG SPACER A LONG SPACER B SHORT SPACER A SHORT SPACER B WASHER A WASHER B PENTA SCREW LOCKING SCREW...
Page 3 • Fasteners CAUTION: A stable, safe installation depends on using the correct combination of fasteners, and while Ergotron tries to provide fasteners to accommo- date most large displays, with new displays always entering the market, it is possible that your display may require special fasteners that were not included with this product.
Page 4 Ø 888-60-182P-01 rev.D • 01/07 4 of 22...
Page 5 If a stand is already attached to your display, remove it according to display manufacturer directions. Place the display on a clean, ﬂ at, padded surface or, if you prefer, lean the displ ay against a stable, vertical surface. Choosing Display Bracket Fasteners Notice that several sizes of screws and spacers have been provided...
Page 6 888-60-182P-01 rev.D • 01/07 6 of 22...
Page 7 If you are unable to ﬁ nd an appropriate sized screw for your dis- play, contact Ergotron Customer Care. If the chosen combination of fasteners is correct for your situation, mount...
Page 8 MINIMUM THREAD ENGAGEMENT 888-60-182P-01 rev.D • 01/07 8 of 22...
Page 9 ATTACH BRACKETS TO DISPLAY Place Display Brackets (with pre-de- termined fasteners) on back of display: (y) The display brackets should be centered verti- cally on the back of the dis- play - the distance between the top of the bracket (y1) and the top of the display should be the same as the distance between the bot-...
Page 10 WOOD CONCRETE Ø 3/8" (10 mm) Ø 3/16" (5 mm) Mounting to structures other than those speciﬁ ed has not been evaluated by UL. 888-60-182P-01 rev.D • 01/07 10 of 22...
Page 11 WALL PLATE MOUNTING INSTRUCTIONS Ergotron provides fasteners for mount- ing the Wall Mount to the following wall conﬁ gurations: • Wall Type I - Solid Wood Studs (2”x4”) 16” or 24” (406mm / 610mm) on center. • Wall Type II - Solid Concrete (3000 psi) - requires minimum material thickness of 4”...
Page 12 WOOD Ø 3/16" (5 mm) 888-60-182P-01 rev.D • 01/07 12 of 22...
Page 13 ATTACH RAIL TO WALL Solid Wood Studs WARNING: Ensure that the wall structure is capable of supporting four times the total weight of mounted equipment. Mounting to wall surfaces that do not meet this criteria may result in an unstable, unsafe condition which could lead to personal injury and/or property damage.
Page 14 CONCRETE 14 of 22 Ø 3/8" (10 mm) 3-1/8" (80 mm) 888-60-182P-01 rev.D • 01/07...
Page 15 ATTACH RAIL TO WALL Solid Concrete Before proceeding with this installation, consult the manufac- turer of your display for recommen- dations on choosing a mounting location that will ensure optimum performance. Location consider- ations might include: mounting height - based on size of display, viewing angle - based on room di- mensions, access to power outlets, cable connections for speakers/ac-...
Page 16 888-60-182P-01 rev.D • 01/07 16 of 22...
Page 17 Hold Rail against wall and start screws with washers. Tighten screws with 13mm socket head (power tool is recommended) in the following sequence: 1st-lower right; 2nd-upper left; 3rd-lower left; 4th-upper right. DO NOT OVERTIGHTEN SCREWS! For solid concrete applications, torque screws to 60 in-lbs (6.8 N m).
Page 18 18 of 22 Center of Display and Center of Studs Aligned - ALLOWED Center of Display Located Over Center of Stud - ALLOWED Center of Display Located Past Center of Stud - NOT ALLOWED 888-60-182P-01 rev.D • 01/07...
Page 19 HANG DISPLAY ON RAIL Hang the display on the rail, positioning it so that the center of the display is aligned between the studs (indicated by tape strips). If necessary, the display can be positioned off cen- ter as long as the center of the display doesn not extend beyond the center of either stud - see illustration! Once the display is in a suitable...
Page 20: Security Screw
At the bottom of each of the display brackets, install and tighten either Security Screws with Pentagon tool* Locking Screws with Phillips screw- driver The Pentagon tool has a special ﬁ ve- sided tip designed to deter theft - keep it in a safe place so that is available whenever needed.
Page 21 888-60-182P-01 rev.D • 01/07 21 of 22...
Page 22 888-60-182P-01 rev.D • 01/07 22 of 22...

This manual is also suitable for:

60-580 60-581
