Jet HBS-916W Operating Instructions And Parts Manual

Horizontal band saw
Hide thumbs Also See for HBS-916W:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
This .pdf document is bookmarked

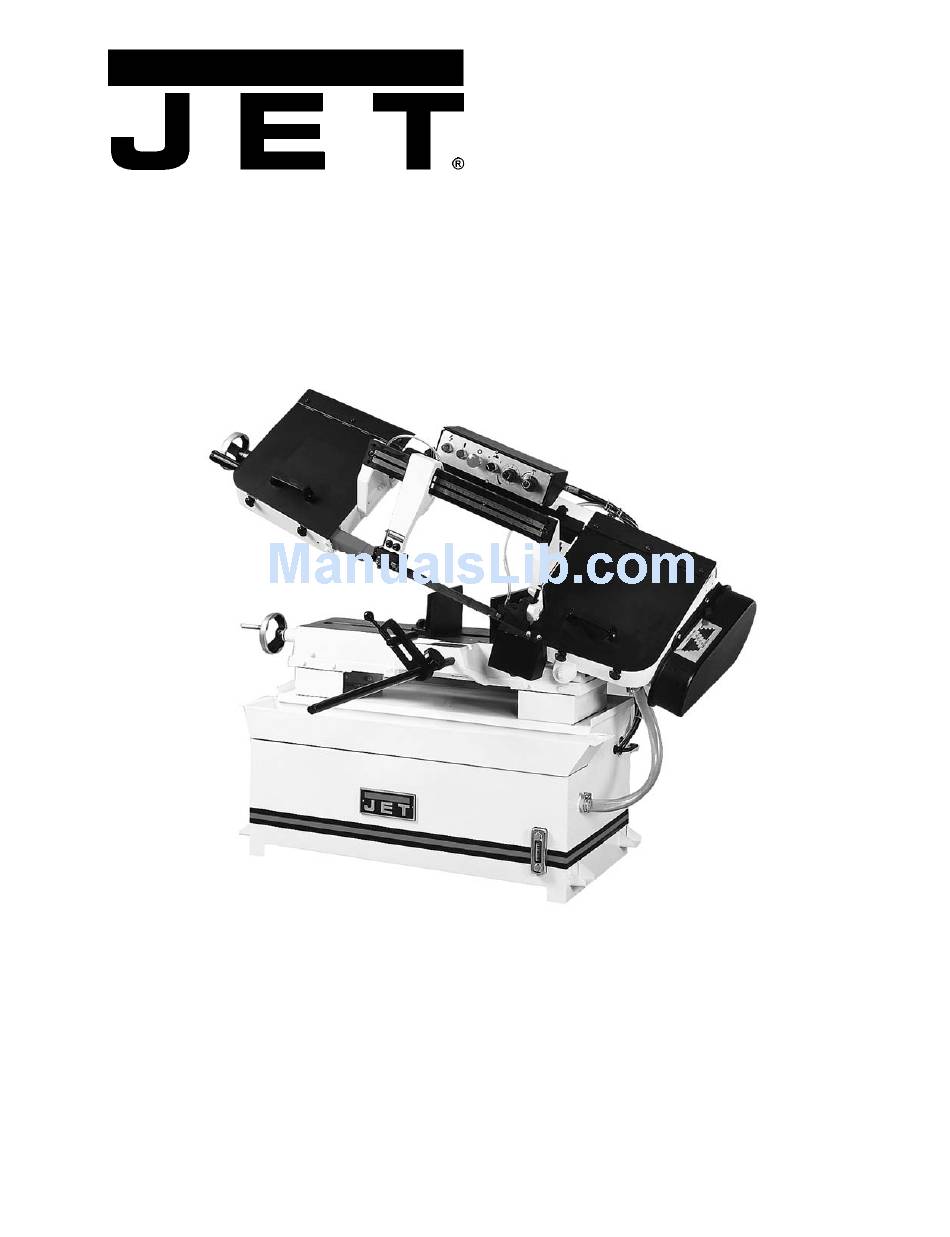

Operating Instructions and Parts Manual
Horizontal Band Saw
Models HBS-916W; HBS-1018W
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-414468
Ph.: 800-274-6848
Revision G2 07/2012
www.waltermeier.com
Copyright © 2012 Walter Meier (Manufacturing) Inc.

Advertisement

Table of Contents
loading

Related Manuals for Jet HBS-916W

Summary of Contents for Jet HBS-916W

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Horizontal Band Saw Models HBS-916W; HBS-1018W WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414468 Ph.: 800-274-6848 Revision G2 07/2012 www.waltermeier.com Copyright © 2012 Walter Meier (Manufacturing) Inc.

  • Page 2: Warranty And Service

    Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your local Walter Meier distributor, or visit waltermeier.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW = Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below.

  • Page 3: Table Of Contents

    Lubrication............................. 15 Replacement Parts ..........................15 Base and Bed Assembly ........................16 Saw Arm Assembly – HBS-916W ....................... 17 Saw Arm Assembly – HBS-1018W ..................... 18 Parts List for HBS-916W, HBS-1018W ....................19 Gear Speed Reducing Box Assembly ....................26 Parts List for Gear Speed Reducing Box Assembly ................

  • Page 4: Warning

    Warning 1. Read and understand the entire owner’s manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3.

  • Page 5: Introduction

    Introduction This manual is provided by Walter Meier (Manufacturing) Inc., covering the safe operation and maintenance procedures for a JET Model HBS-916W or HBS-1018W Band Saw. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown. This machine has been designed and constructed to provide years of trouble free operation if used in accordance with instructions set forth in this manual.

  • Page 6: Specifications

    Specifications Model Number ............HBS-916W........... HBS-1018W Stock Number..............414468..........414473 Capacity (in.): Round at 90° ................ 9............10 Round at 45° ..............6-1/8............7-3/4 Rectangle at 90° ..........4 x 16 – 9 x 12....... 6-1/2 x 18 – 10 x 16 Rectangle at 45°...

  • Page 7: Uncrating And Cleanup

    Uncrating and Cleanup Note: Read and understand the entire manual before attempting setup or operation. 1. Finish uncrating the saw and inspect for damage. Should any have occurred, contact your local distributor. 2. Remove all bolts attaching machine to shipping base. 3.

  • Page 8: Electrical Connections

    Disconnect machine from power source before changing any voltage components! The HBS-916W Band Saw is rated at 115/230V single phase, and is pre-wired 115 volt from the factory. The HBS-1018W is rated at 230V only, single phase. Confirm that power available at the saw’s location matches that for which the...

  • Page 9: Controls

    To convert the HBS-916W from 115V to 230V, the following items will have to be changed: Main Motor – follow diagram inside junction box cover. Coolant Pump – Remove chip pan on front of saw, remove junction box cover on pump, and follow diagram inside junction box cover.

  • Page 10: Adjustments

    7. Material to be cut must be securely held in vise. 8. Check to see that coolant level is adequate and turn on coolant pump if material to be cut requires it. Machine should be filled with four gallons of the proper coolant mixture. Follow the directions on the product maker’s label and fill the coolant tank through the chip tray area.

  • Page 11: Adjusting Feed Rate

    Adjusting Feed Rate Rate of feed is adjusted by turning the cutting pressure control knob on the control panel. Rate of feed is important to band saw performance; excessive pressure may break the blade or stall the saw. Insufficient pressure rapidly dulls the blade.

  • Page 12: Blade Tracking Adjustment

    9. Tension blade to approximately 25,000 lbs. of blade tension, as indicated on the blade tension indicator found on the tension wheel shaft housing. 10. Attach wire brush to the wire brush post with screw and washer. Adjust wire brush post so that brush just comes into contact with blade teeth.

  • Page 13: Automatic Shut-Off Adjustment

    2. Loosen two hex socket cap screws (A, Figure 9). Note: Left guide roller has two hex socket cap screws; right guide roller has one (HBS-916W only). The HBS-1018W has two screws on each guide. 3. Move guide seat (B) up or down until a clearance of .003”...

  • Page 14: Bow Weight Adjustment

    4. Place one end of a fish-type scale under the blade tension handle and lift the saw with the other end. The scale should indicate approximately 18-20 lbs. for the HBS-916W. For the HBS-1018W, it should indicate 22- 24 lbs.

  • Page 15: Maintenance

    Maintenance Before doing maintenance on the machine, disconnect it from the electrical supply by pulling out the plug or switching off the main switch! Failure to comply may cause serious injury. Keep the band saw and the motor clean. If the power cord is worn, cut, or damaged in any way, have it replaced immediately.

  • Page 16: Base And Bed Assembly

    Base and Bed Assembly...

  • Page 17: Saw Arm Assembly - Hbs-916W

    Saw Arm Assembly – HBS-916W...

  • Page 18: Saw Arm Assembly - Hbs-1018W

    Saw Arm Assembly – HBS-1018W...

  • Page 19: Parts List For Hbs-916W, Hbs-1018W

    Parts List for HBS-916W, HBS-1018W Index No. Part No. Description Size 1 ....HBS916W-01 ...Base (S/N 8081108 and lower) .............. 1 ....HBS916W-01A..Base (S/N 8081109 and higher) ............. 1 ....HBS1018W-01 ..Base (S/N 808718 and lower) ..............1 ....HBS1018W-01A..Base (S/N 808719 and higher) ............... 1 2 ....
  • Page 20 Index No. Part No. Description Size 39 ..... TS-1490041 .....Hex Cap Bolt ............M8x25 ......1 39-1 ..TS-1551081 .....Lock Washer ............8mm ......1 39-2 ..TS-1550061 .....Washer...............8mm ......1 40 ..... HBS916W-40 ...Motor Tilt Plate ..................1 ....HBS1018W-40 ..Motor Tilt Plate ..................1 40-1 ..
  • Page 21 Index No. Part No. Description Size 70 ..... HBS916W-70 ...Electrical Panel Cover (S/N 8081108 and lower HBS-916W) ....1 ....HBS1018W-70 ..Electrical Panel Cover (S/N 808718 and lower HBS-1018W) ....1 ....HBS916W-70A..Electrical Panel Cover (S/N 8081109 and higher HBS-916W) ....1 ....
  • Page 22 ....HBS916W-124A..Guide Bracket Assembly - left ..............1 ....HBS1018W-124A ..Guide Bracket Assembly - left ..............1 124-1 ..TS-1504031 .....Hex Socket Cap Screw (HBS-916W) ....M8x16 ......3 ....TS-1504031 .....Hex Socket Cap Screw (HBS-1018W) ....M8x16 ......6 125 ... TS-1540061 .....Washer...............M8 ......4 126 ...
  • Page 23 130-2 ..TS-2361061 .....Lock Washer ............M6 ......4 131 ... HBS916W-131 ..Blade Guide ..................4 132 ... TS-1504081 .....Hex Socket Cap Screw (HBS-916W) ....M8x40 ......2 ....TS-1504081 .....Hex Socket Cap Screw (HBS-1018W) ....M8x40 ......4 133 ... TS-1551081 .....Lock Washer (HBS-916W) ........M8 ......2 ....
  • Page 24 (S/N 911986 and lower; HBS-1018W) ....HBS916W-165S-K ...Knob for On/Off Valve................1 ....HBS916W-165S-1 ...Speed Control Valve (S/N 9111420 and lower; HBS-916W) ....1 ....HBS1018W-165S-1 ...Speed Control Valve (S/N 911986 and lower; HBS-1018W) ....1 ....HBS916W-165S-1-K ..Knob for Speed Control Valve ..............1 ....
  • Page 25 214 ... HBS1018W-214 ..Clamp....................2 215 ... HBS916W-215 ..Cu Connector ..................1 ....HBS1018W-215 ..Cu Connector ..................2 215-1 ..HBS916W-215-1 ..Cu Connector (HBS-916W) ..............1 216 ... TS-1504051 .....Hex Socket Cap Screw ........M8x25 ......2 217 ... HBS916W-217 ..Slide Bracket ..................1 218 ...

  • Page 26: Gear Speed Reducing Box Assembly

    Gear Speed Reducing Box Assembly...

  • Page 27: Parts List For Gear Speed Reducing Box Assembly

    Parts List for Gear Speed Reducing Box Assembly Index No. Part No. Description Size 1 ....HBS916W-94-01 ..Oil Seal ..............35x55x8 mm ....1 2 ....HBS916W-94-02 ..Bearing...............30207 ......1 3 ....HBS916W-94-03 ..Bearing...............6207 ......1 4 ....HBS916W-94-04 ..Shaft ..................... 1 5 ....

  • Page 28: Electrical Connections - Hbs-916W

    Electrical Connections – HBS-916W...

  • Page 29: Electrical Connections - Hbs-1018W

    Electrical Connections – HBS-1018W NOTES...
  • Page 32 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.waltermeier.com...
