Operating Instructions and Parts Manual
Horizontal Band Saw
Models HBS-916W; HBS-1018W


JET
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-414468
Ph.: 800-274-6848
Revision G4 03/2014
www.jettools.com
Copyright © 2014 JET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBS-916W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jet HBS-916W

Summary of Contents for Jet HBS-916W

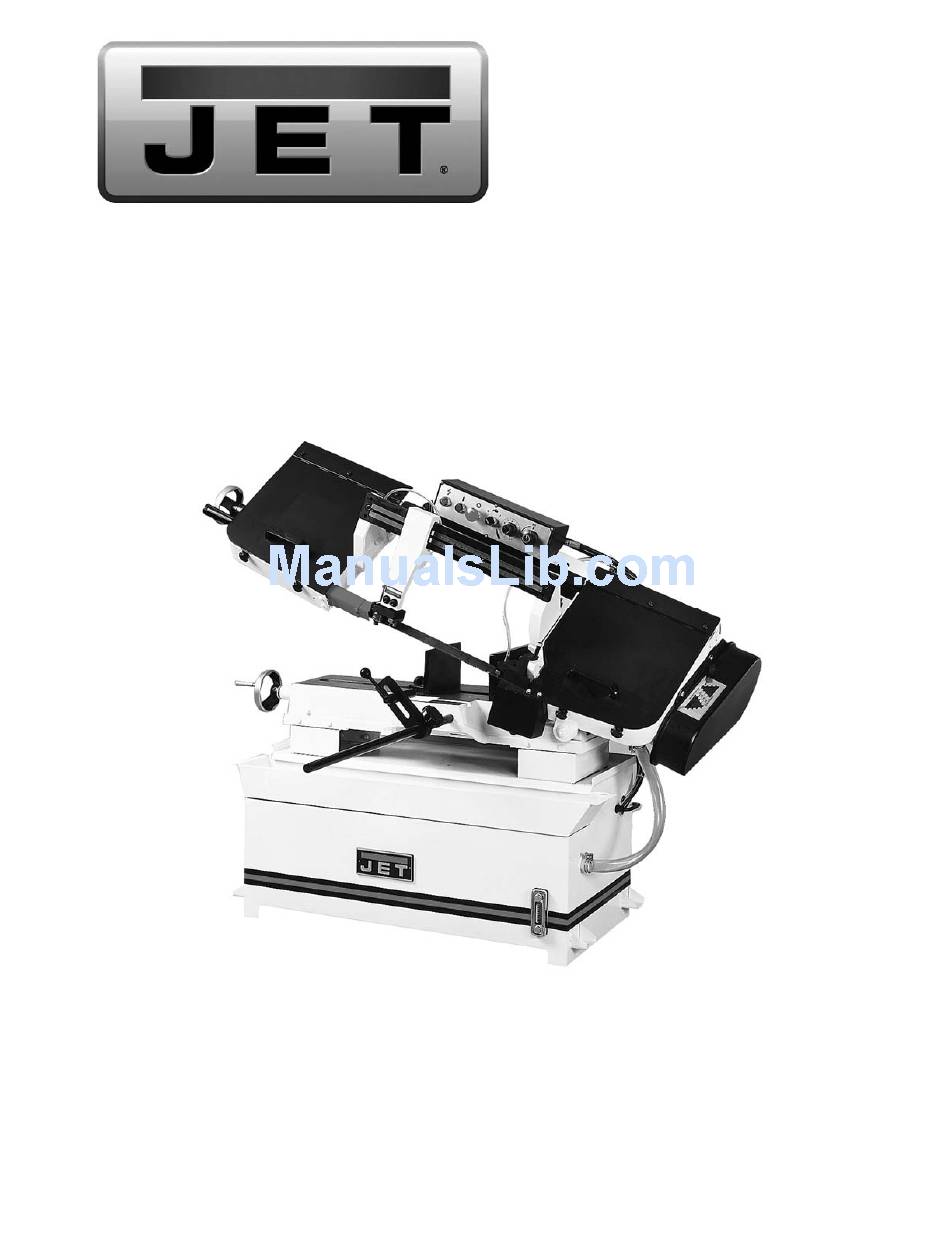

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Horizontal Band Saw Models HBS-916W; HBS-1018W     427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414468 Ph.: 800-274-6848 Revision G4 03/2014 www.jettools.com Copyright © 2014 JET...

  • Page 2: Warranty And Service

    JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®...

  • Page 3: Table Of Contents

    13.1 Lubrication .............................. 12   14.0 Replacement Parts ............................. 12   14.1.1 HBS-916W & HBS-1018W – Base and Bed Assembly – Exploded View ........... 13   14.1.2 HBS-916W only – Saw Arm Assembly – Exploded View ..............14   14.1.3 HBS-1018W only – Saw Arm Assembly – Exploded View ..............15  ...

  • Page 4: Safety Warnings

    5. Do not use this band saw for other than its intended use. If used for other purposes, JET disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use.

  • Page 5: Introduction

    If there are any questions or comments, please contact either your local supplier or JET. JET can also be reached at our web site: www.jettools.com.

  • Page 6: Specifications

    Shipping Weight – approx. (lbs.) ........... 704 ............. 864 The above specifications were current at the time this manual was published, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations.

  • Page 7: Uncrating And Cleanup

    8.0 Assembly 6.0 Uncrating and cleanup 1. Unbolt the motor assembly from the shipping Note: Read and understand the entire manual crate bottom. before attempting setup or operation. 2. Remove nut and washer from the motor 1. Finish uncrating the saw and inspect for support shaft.

  • Page 8: Electrical Connections

    3. Set blade holder guides for approximately wired. .003” to .005” clearance between guides and blade. To convert the HBS-916W from 115V to 230V, the following items will have to be changed: 4. Check for slight clearance between back up rollers and back of blade.

  • Page 9: Adjustments

    8. Check to see that coolant level is adequate when finger pressure on the belt between the and turn on coolant pump if material to be cut two pulleys causes approximately a 1/2" requires it. Machine should be filled with four deflection.

  • Page 10: Blade Tracking Adjustment

    5. Loosen lock knob and slide left blade guide arm (B) to the right as far as possible. 6. Remove old blade from both wheels and out of each blade guide. Even dull blades are sharp to the skin. Use extra caution handling band saw blades.

  • Page 11: Guide Roller Adjustment

    18-20 lbs. for the HBS-916W. For the HBS-1018W, it should indicate 22-24 lbs. 5. Adjust tension to approximately 18-20 lbs. (or 22-24 lbs.) by turning the adjustable C-bolt found at the end of the coil spring on the rear Figure 9 of the band saw.

  • Page 12: Lubrication

    If the power cord is worn, cut, or damaged in any 4. Remove filler cap (A, Figure 12) and fill gear way, have it replaced immediately. box with Mobil DTE® Oil Heavy Medium until level reaches dot in middle of sight glass. 13.1 Lubrication 5.

  • Page 13: Hbs-916W & Hbs-1018W - Base And Bed Assembly - Exploded View

    14.1.1 HBS-916W & HBS-1018W – Base and Bed Assembly – Exploded View  ...

  • Page 14: Hbs-916W Only - Saw Arm Assembly - Exploded View

    14.1.2 HBS-916W only – Saw Arm Assembly – Exploded View    ...

  • Page 15: Hbs-1018W Only - Saw Arm Assembly - Exploded View

    14.1.3 HBS-1018W only – Saw Arm Assembly – Exploded View  ...

  • Page 16: Parts List For Hbs-916W, Hbs-1018W

    14.1.4 Parts List for HBS-916W, HBS-1018W Index No. Part No. Description Size 1 ....HBS916W-01 .... Base (S/N 8081108 and lower)..............1 ....HBS916W-01A ..Base (S/N 8081109 and higher) ..............1 ....HBS1018W-01 ..Base (S/N 808718 and lower)................ 1 ....
  • Page 17 ....HBS916W-69A ..Knob (S/N 8081109 and higher) ......M6x30 ......1 69-1 ... HBS916W-69-1 ..Nut ................M6 ......... 1 70 ....HBS916W-70 .... Electrical Panel Cover (S/N 8081108 and lower HBS-916W) ......1 ....HBS1018W-70 ..Electrical Panel Cover (S/N 808718 and lower HBS-1018W) ......1 ....
  • Page 18 84 ....HBS916W-84 .... Drive Wheel ....................1 ....HBS1018W-84A ..Drive Wheel ............. 14” ......... 1 85 ..........Blade (local purchase, HBS-916W) ............... 1 ............ Blade (local purchase, HBS-1018W) ............. 1 86 ....HBS916W-86 .... Hose ......................1 87 ....
  • Page 19 ....HBS916W-124A ..Guide Bracket Assembly - left ............... 1 ....HBS1018W-124A ..Guide Bracket Assembly - left ............... 1 124-1 ..TS-1504031 ....Hex Socket Cap Screw (HBS-916W) ...... M8x16 ......3 ....TS-1504031 ....Hex Socket Cap Screw (HBS-1018W) ....M8x16 ......6 125 ....
  • Page 20 ....HBS1018W-150 ..Spring ......................1 152 .... TS-1540071 ....Hex Nut ..............M10 ....... 1 153 .... TS-1504091 ....Hex Socket Cap Screw (HBS-916W) ...... M8x45 ......2 153-1 ..HBS916W-153-1 ..Hex Socket Cap Screw (HBS-916W) ...... M8x55 ......1 153-2 ..
  • Page 21 (S/N 911986 and lower; HBS-1018W) ....HBS916W-165S-K ..Knob for On/Off Valve..................1 ....HBS916W-165S-1..Speed Control Valve (S/N 9111420 and lower; HBS-916W) ......1 ....HBS1018W-165S-1 ..Speed Control Valve (S/N 911986 and lower; HBS-1018W) ......1 ....HBS916W-165S-1-K ... Knob for Speed Control Valve ............... 1 ....
  • Page 22 215 .... HBS916W-215 ..Cu Connector....................1 ....HBS1018W-215 ..Cu Connector....................2 215-1 ..HBS916W-215-1 ..Cu Connector (HBS-916W) ................1 216 .... TS-1504051 ....Hex Socket Cap Screw ..........M8x25 ......2 217 .... HBS916W-217 ..Slide Bracket....................1 218 ....

  • Page 23: Hbs-916W & 1018W - Gear Speed Reducing Box - Exploded View

    14.2.1 HBS-916W & 1018W – Gear Speed Reducing Box – Exploded View      ...

  • Page 24: Hbs-916W & 1018W - Gear Speed Reducing Box - Parts List

    14.2.2 HBS-916W & 1018W – Gear Speed Reducing Box – Parts List Index No. Part No. Description Size 1 ....HBS916W-94-01 ..Oil Seal ..............35x55x8 mm ....1 2 ....HBS916W-94-02 ..Bearing ..............30207 ......1 3 ....HBS916W-94-03 ..Bearing ..............6207 ......1 4 ....

  • Page 25: Electrical Connections

    15.0 Electrical Connections 15.1 Electrical Connections – HBS-916W only    ...

  • Page 26: Electrical Connections - Hbs-1018W Only

    15.2 Electrical Connections – HBS-1018W only  ...
  • Page 27 This page intentionally left blank.   ...
  • Page 28       427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com  ...
