KitchenAid KSSO42QMB03 Parts List
42" built in refrigerator
Hide thumbs
Also See for KSSO42QMB03:
- Installation manual (76 pages) ,
- Installation instructions manual (76 pages) ,
- Use & care manual (64 pages)
Related Manuals for KitchenAid KSSO42QMB03
Summary of Contents for KitchenAid KSSO42QMB03

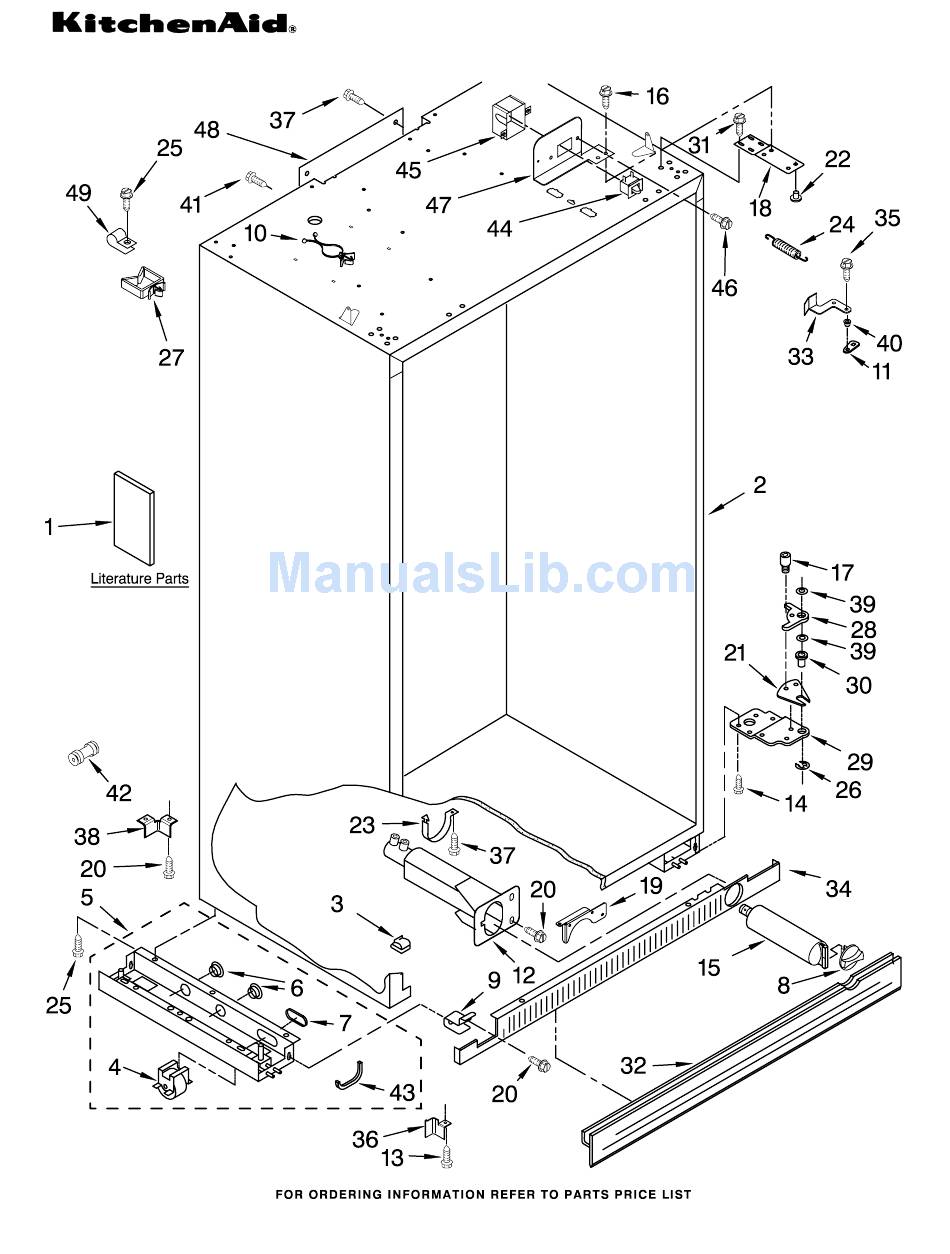

- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSO42QMB03 (Black) Part No. W10117307 Rev. A 2−07 Litho In U.S.A. (dmm)
-
Page 2: Cabinet Parts
CABINET PARTS For Model: KSSO42QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Extension Arm, 488500 Screw 2320531 Use & Care Guide Door Closer 3400525 Screw 2307358 Energy Label 2266882 Right 2255709 Filter, Water 2266881 Left 2320627 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688B Black Screw 8281252 Black 2316687 Cabinet, Trim (Bottom) 486194 Screw 2313992 Cabinet, Trim Top Cabinet Trim (Left Side) 2257689B Black 2005925 Seal−Trim, Side 489464 Screw W10117307...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION 2302868 Solid Shelf 2302883 Shelf, Fixed 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10117307... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSO42QMB03 (Black) W10117307... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid Baffle, Meat Pan 2315511 Baffle, Control Assembly...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION 2302772 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2310197 Control Box Wire Harness 2221121 Support, Control 489006 Screw 2306086 Display Board, Ingredient Care Center 2302717 Shield, Light 2162085 Socket, Light 2255743 Light Bulb 486194 Screw... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSO42QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1161548 Nut 2310194 Wire Assembly Top Grille 2003347 Screw RC/FC Light Switch Assembly Trim−Grille, Top 2215910 Grommet 2259423B Black 2259441B Black 489348 Clamp, Tube 2259320 Cover, Unit Trim−Grille,...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSO42QMB03 (Black) W10117307... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2256250 Trim, Side Glass Meat Pan 2179404 Rack, Wine 2221071 Egg Bin 2302842 Meat Pan Cover Assembly 2302835 Crisper Cover Assembly 2257582 Trim, Glass Rear 2252412 Crisper Pan Slide, Meat Pan 2302955 Right Side 2302954 Left Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42QMB03 (Black) W10117307...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 2259385 Fan Motor 2317088 Harness, Evap Fan Serviceable Part) 2198665 Tube, P.C. Board (Includes Item 55) 2302932 Tube, Vent 2169142 Fan Blade 2220241 Insulation (4) 2259025 Cover, Air Outlet...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSO42QMB03 (Black) W10117307... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION 2222965 Ice Bin 2222964 Crusher Bin 2258222 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSO42QMB03 (Black) W10117307... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Insulation) Trim, Screw Cover (Handle Side) 2259365B Black 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Bin 2222811 Door Gasket, Magnetic Trim, Screw Cover...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSO42QMB03 (Black) W10117307... - Page 18 FREEZER DOOR PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2320571B Black Trim, Screw Cover (Handle Side) 2259365B Black 2304896 Safety Barrier 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door (Top) Trim, Screw Cover (Hinge Side) 2259448B Black 2222814 Door Gasket,...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSO42QMB03 (Black) W10117307... - Page 20 DISPENSER AND FRONT PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2310199 Wire Assembly Cover, Dispenser (Not Serviced) 2304772 Spring, Torsion 2196195 Pin 2304355 Ice Door Mechanism 2180353 Door, Ice 489000 Screw Lever, Ice Dispenser 2259396B Black Switch Assembly...
- Page 21 UPPER UNIT PARTS For Model: KSSO42QMB03 (Black) W10117307...
- Page 22 UPPER UNIT PARTS For Model: KSSO42QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2304175 Inverter Box 2317982 Drier Following Parts Not Illustrated 489373 Screw, Compressor 2310207 Wire Assy. Mounting (4) (Condenser Fan) and Optional Parts Not Included 2302967 Compressor 2206036 Motor, Fan (Includes Items...
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSO42QMB03 (Black) W10117307...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSO42QMB03 (Black) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 2259353 Tube, Discharge 9791833 Clip, Thermistor 2306093 Evaporator 2306388 Heater, Defrost 1113048 Clamp, Heater (2) 2316794 Seal, Return Air...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: KSSO42QMB03 (Black) W10117307... - Page 26 ICEMAKER PARTS For Model: KSSO42QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2320600 Shield, Valve Motor, 2252228 Bracket, Icemaker Electrical (Not Serviceable− Mounting 2310191 Wire Assembly, Order Item 35) 2320636 Complete Icemaker Icemaker 628356 Cup−Water Fill Assembly 628379 Clip, Fuse 627843 Ejector 2320654 Tube, Filter Inlet...
