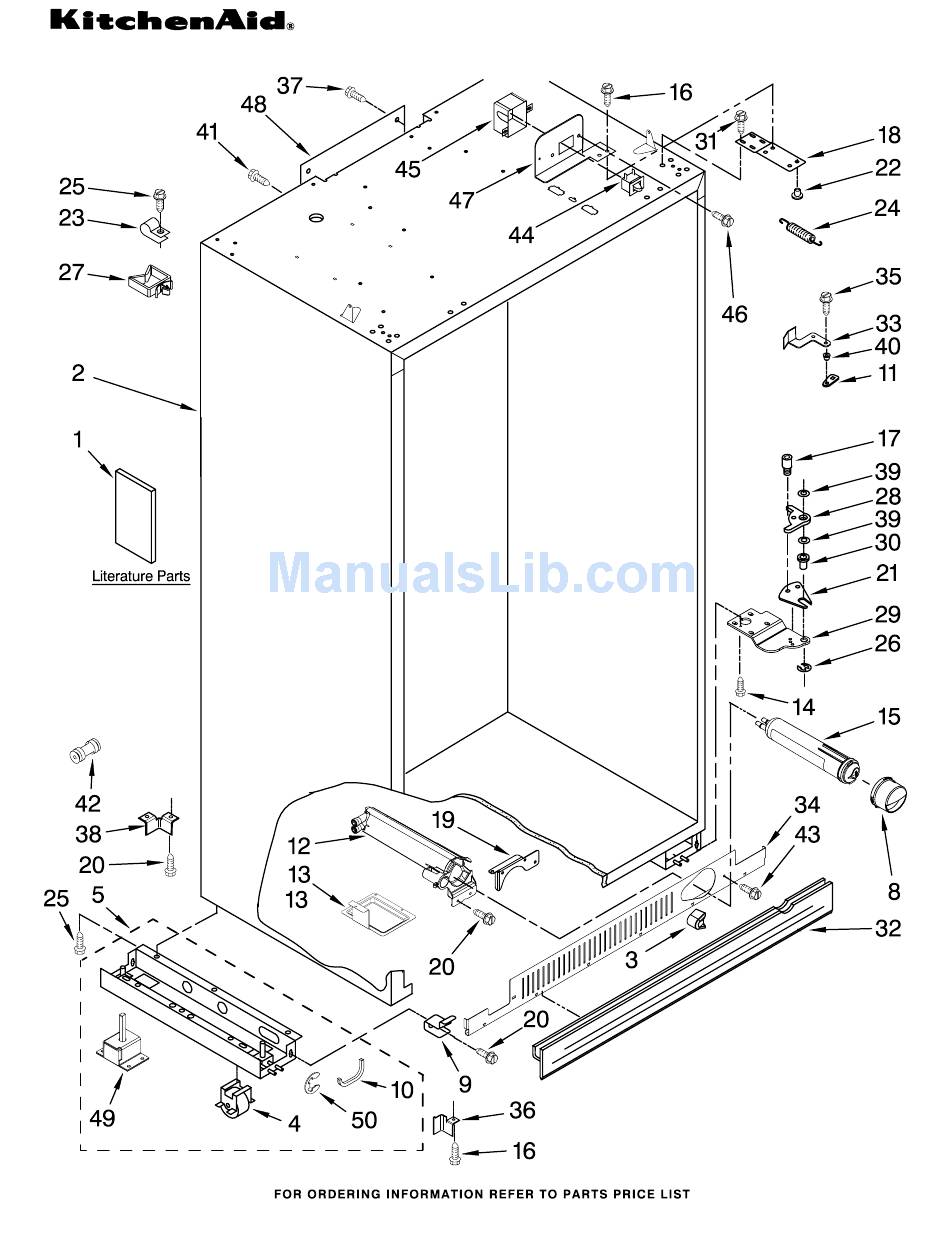

CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Models: KSSO42QTB04, KSSO42QTX04
(Black) (Etched Aluminum)
02−10 Litho In U.S.A. (mjb)(bay)
1
Part No. W10316710 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSO42QTB - 42" - Refrigerator and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSO42QTB - 42" - Refrigerator

Summary of Contents for KitchenAid KSSO42QTB - 42" - Refrigerator

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) 02−10 Litho In U.S.A. (mjb)(bay) Part No. W10316710 Rev. A...

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489399 Screw Literature Parts Grille Bottom, 3400230 Screw, Door Stop W10161714 Use & Care Guide Front Hinge (Top) W10205634 Energy Guide 2325185B Black 2252292B RC, Black W10159832 Service &...
  • Page 3 CABINET TRIM PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132410 Black W10132411 Stainless Steel 1163283 Screw 2316687 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top 2313961B Black 2313961S Stainless Steel Cabinet Trim (Left Side) W10132415 Black W10132416 Stainless Steel...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 1 W10175905 Wire, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket W10267101 Right Side W10267099 Left Side 8533928 Screw W10316710...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2003577 Guard, Air Return 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316545 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw W10316710...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Panel, Decorative Assembly 2313978B Black 2313978S Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10185625 Cover, Unit Front 487415 Screw 7 W10167456 Wire Assembly RC/FC Light Switch 2215910 Grommet...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179375 Rack, Wine 2256277 Assembly, Meat Pan Cover 2256427 Assembly, Crisper Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan W10267073 Left Side W10267075 Right Side 2302831 Trim, Glass Front 2256254 Trim, Glass Rear...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2259385 Fan Motor 2220904 Gasket (2) 2215650 Cover, Emitter 2198665 Tube, P.C. Board Evaporator Cover Liner (Not A 2169142 Fan Blade 2259493 Cover, Receiver Serviceable Part)

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222965 Ice Bin 2 W10134774 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 7 W10278733 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 10 W10278732 Blade, Rotary 2317239 Block, Blade...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 1 W10193490 Door Assy (Includes Item #9) Trim, Screw Cover (Handle Side) 2314003B Black 2314003S Stainless Steel Hinge Assy, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top & Bottom 489282 Screw Hinge Assy, Btm 2252293B Black...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 18 FREEZER DOOR PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #14) W10292456 Black W10292443 Universal Silver Hinge, Bottom 2252294B Black 2252294 Chrome 489282 Screw Hinge, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic Trim−Door,...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 20 DISPENSER FRONT PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 5 W10205979 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly...
  • Page 21 UPPER UNIT PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 22 UPPER UNIT PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10133449 Inverter Box 2259350 Power Supply, 489399 Screw 489373 Screw, Compressor Ingredient Care 2155774 Wire Tie Mounting (4) Center 21 W10175593 Drier 3 W10173296 Compressor 22 W10136614 Bracket, Fan Motor (Includes Items...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 1 W10160981 Bracket Assembly, Air Return 486194 Screw 3 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 6 W10281063 Drain Pan Assy. 7 W10151288 Cover, Wiring 8 W10153595 Cover, Box 9 W10121371 Tube, Discharge 2188820 Thermistor...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) W10316710...
  • Page 26 ICEMAKER PARTS For Models: KSSO42QTB04, KSSO42QTX04 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 20 W10122527 Mold & Heater 304392 Screw 8−18 x 1/2 626680 Module Assembly (Also Order 2320601 Shield, Valve (Includes Items 542638 Silicone 2310191 Wire Assembly, 21 &...
