Summary of Contents for KitchenAid KSSO42FMX00
- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSO42FMX00 (Etched Aluminum) 1−04 Litho In U.S.A. (mek) Part No. 8198482...
-

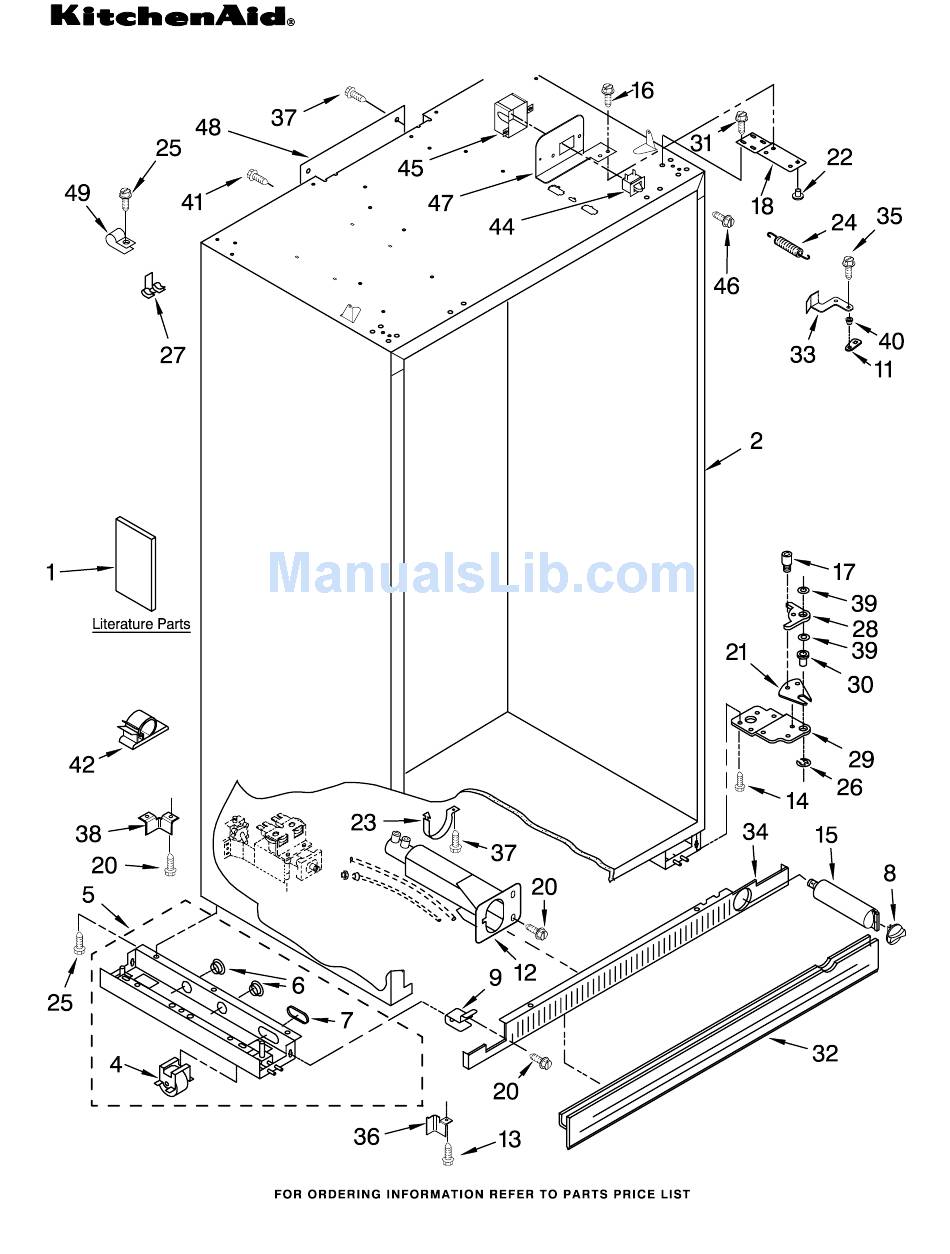

Page 2: Cabinet Parts
CABINET PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 489399 Screw Extension Arm, LIT2266808 Use & Care Guide 3400230 Screw, Door Stop Door Closer LIT2266817 Energy Label 2257644 Hinge (Top) 2221095 Right LIT2300021 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688X Etched Aluminum Screw 8281250 Stainless Steel 2254725 Cabinet, Trim (Bottom) 486194 Screw 2257367 Cabinet, Trim Top Cabinet Trim (Left Side) 2257689X Etched Aluminum 2005925 Seal−Trim, Side 489464 Screw 8198482...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2256205 Solid Shelf 8533929 Screw 2259003 Shelf, Fixed 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266934 Door, Ice 2266955 Spacer, Ice Door 2266931 Ice Bucket 2266948 Cover Shelf 8198482... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSO42FMX00 (Etched Aluminum) 8198482... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2257528 Lid Baffle, Meat Pan 2257526 Baffle, Control Assembly 2171846 Release Valve...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2215716 Control Box 2258914 Panel Control, 2302712 Clip, Retainer 2215670 Insert, Control Meat Pan 2162085 Socket, Light (2) 2221121 Support, Control 2255743 Light Bulb (2) 2252110 Circuit Board, 486194 Screw Housing Control... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Top Grille 2259420X Grille−Trim, 487415 Screw Assembly Right Side 2187429 Wire Assembly 2259423X Etched Aluminum 2259441X Grille−Trim, Top RC/FC Light Switch 2259320 Cover, Unit 2259421X Grille−Trim, 489348 Clamp, Tube...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSO42FMX00 (Etched Aluminum) 8198482... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2256277 Glass, Meat Pan Cover 2256427 Glass, Crisper Cover 2257611 Trim, Glass 2169935 Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan Slide, Meat Pan 2256246 Right Side 2256245 Left Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42FMX00 (Etched Aluminum) 8198482...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2259385 Fan Motor 2266801 Deflector, Air 2169142 Fan Blade 2155590 Retainer, Fan Motor 2155789 Gasket, Cover 2208968 Grommet 486194 Screw 2259464 Wedge, Air Duct 487294 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon 2255743 Light Bulb (2)
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSO42FMX00 (Etched Aluminum) 8198482... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Insulation) 2259448X Trim, Screw Cover (Handle Side) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Bin 2222811 Door Gasket, Magnetic 2259365X Trim, Screw Cover...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSO42FMX00 (Etched Aluminum) 8198482... - Page 16 FREEZER DOOR PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2252327 Freezer Door Panel (Includes Insulation) 2259448X Trim, Screw Cover (Handle Side) 2256390 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2259365X Trim, Screw Cover (Hinge Side) 2222814 Door Gasket, Magnetic Trim (Handle Side)
- Page 17 UPPER UNIT PARTS For Model: KSSO42FMX00 (Etched Aluminum) 8198482...
- Page 18 UPPER UNIT PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2221559 Inverter Box 857547 Wire Tie (2) Following Parts Not Illustrated 489373 Screw, Compressor 2252363 Drier Mounting (4) and Optional Parts Not Included 2206036 Motor, Fan 2223393 Compressor 2190685 Blade, Fan...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSO42FMX00 (Etched Aluminum) 8198482...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259244 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259353 Tube, Discharge 2216113 Thermistor 2257639 Clip, Thermistor 2259030 Evaporator...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSO42FMX00 (Etched Aluminum) 8198482... - Page 22 ICEMAKER PARTS For Model: KSSO42FMX00 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2259064 Cover, Fill Tube 2208136 Clamp, Nylon 627985 Thermostat 487539 Screw Valve (Also Order 2254792 Wire Assembly, 488937 Clamp Tube 542639 Cement Icemaker 489115 Fastner, Snap−In Alumilastic) 2300104 Cover−Bottom, 2257538 Cover...
