KitchenAid KWCU380JSS1 Parts List

48" professional hood
Hide thumbs

Advertisement

Quick Links

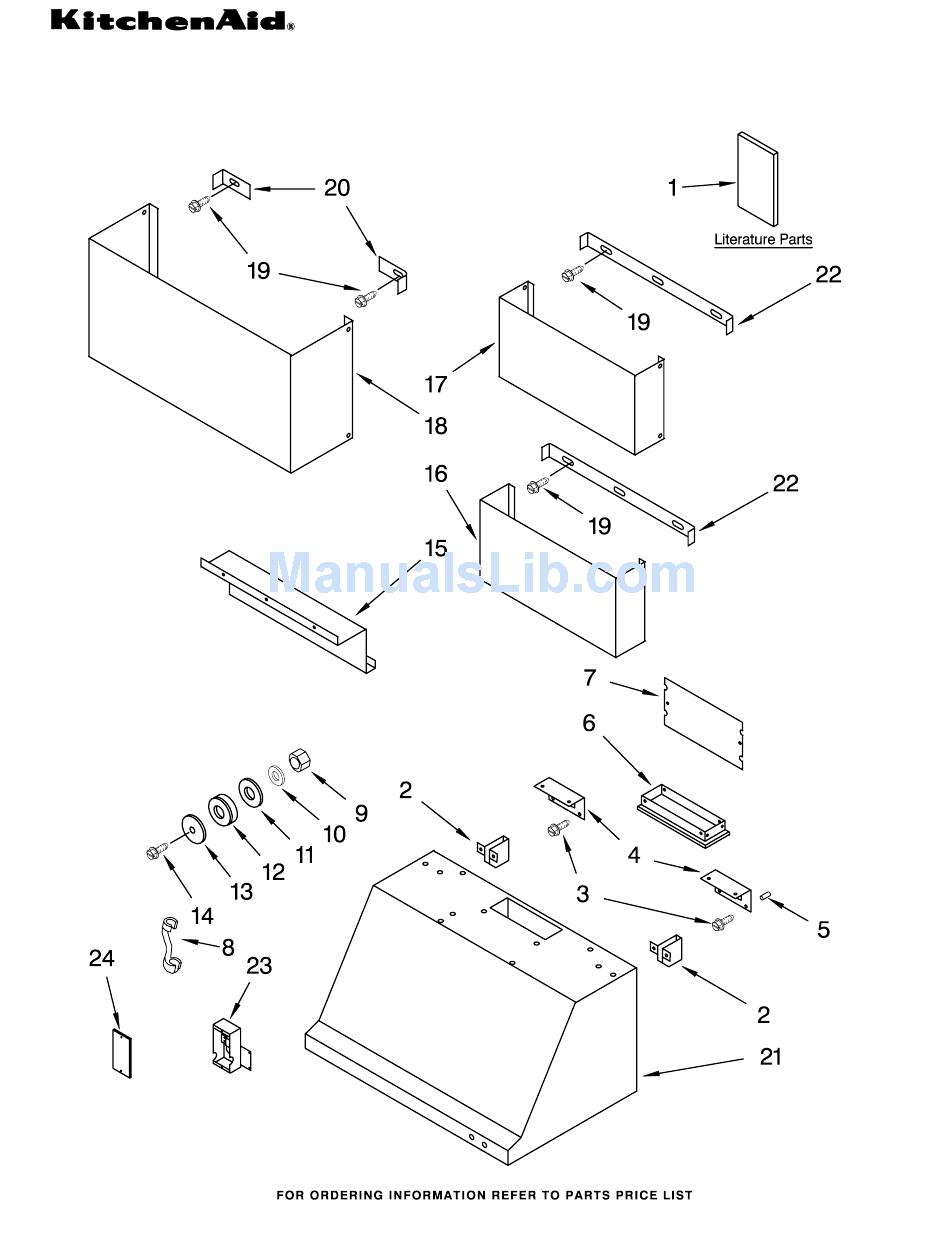

HOOD PARTS
48" PROFESSIONAL HOOD
For Model: KWCU380JSS1
(Stainless)
1
11−05 Litho in U.S.A. (jac)
Part No. 8191108

Advertisement

loading

  Also See for KitchenAid KWCU380JSS1

  Related Manuals for KitchenAid KWCU380JSS1

  Summary of Contents for KitchenAid KWCU380JSS1

  • Page 1 HOOD PARTS 48" PROFESSIONAL HOOD For Model: KWCU380JSS1 (Stainless) 11−05 Litho in U.S.A. (jac) Part No. 8191108...
  • Page 2 HOOD PARTS For Model: KWCU380JSS1 (Stainless) Illus. Part DESCRIPTION Literature Parts 9763385 Use & Care Guide 8189863 Wiring Diagram 8189612 Bracket, Hood 8189611 Screw 8189610 Bracket, Mounting 4360318 Grommet 4360001 Damper 4360190 Cover, Exhaust 4360062 Relief, Strain 8189600 Nut 4360158 Washer 8189855 Plate (Rubber) 8189856 Transformer, 120V 8189857 Plate (Nylon)
  • Page 3 VENTILATION PARTS For Model: KWCU380JSS1 (Stainless) 8191108...
  • Page 4 VENTILATION PARTS For Model: KWCU380JSS1 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4360028 Lens, Indicator 4360344 Washer, Star 8189594 Filter, Grease 8189620 Button, Mtr Speed 4360342 Spacer, Motor Support. Side 4360257 Support, Filter 4360347 Screw, Mtr Mount 8189851 Left Bracket, Diffuser 4360056 Box, Capacitor...
