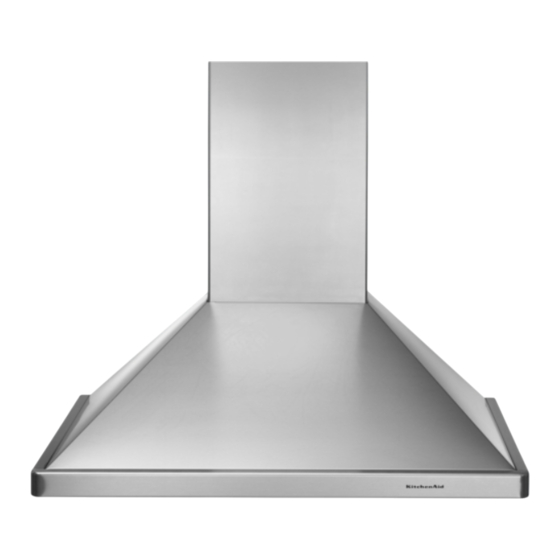

KitchenAid KWCU205HBT Parts List

30" canopy hood
Hide thumbs

Advertisement

Quick Links

HOOD PARTS
30" CANOPY HOOD
For Models: KWCU205HWH1, KWCU205HSS1, KWCU205HBT1
(White)
(Stainless)
(Biscuit)
11−05 Litho in U.S.A. (jac)
Part No. 8191106
1

Advertisement

loading

  Related Manuals for KitchenAid KWCU205HBT

  Summary of Contents for KitchenAid KWCU205HBT

  • Page 1 HOOD PARTS 30" CANOPY HOOD For Models: KWCU205HWH1, KWCU205HSS1, KWCU205HBT1 (White) (Stainless) (Biscuit) 11−05 Litho in U.S.A. (jac) Part No. 8191106...

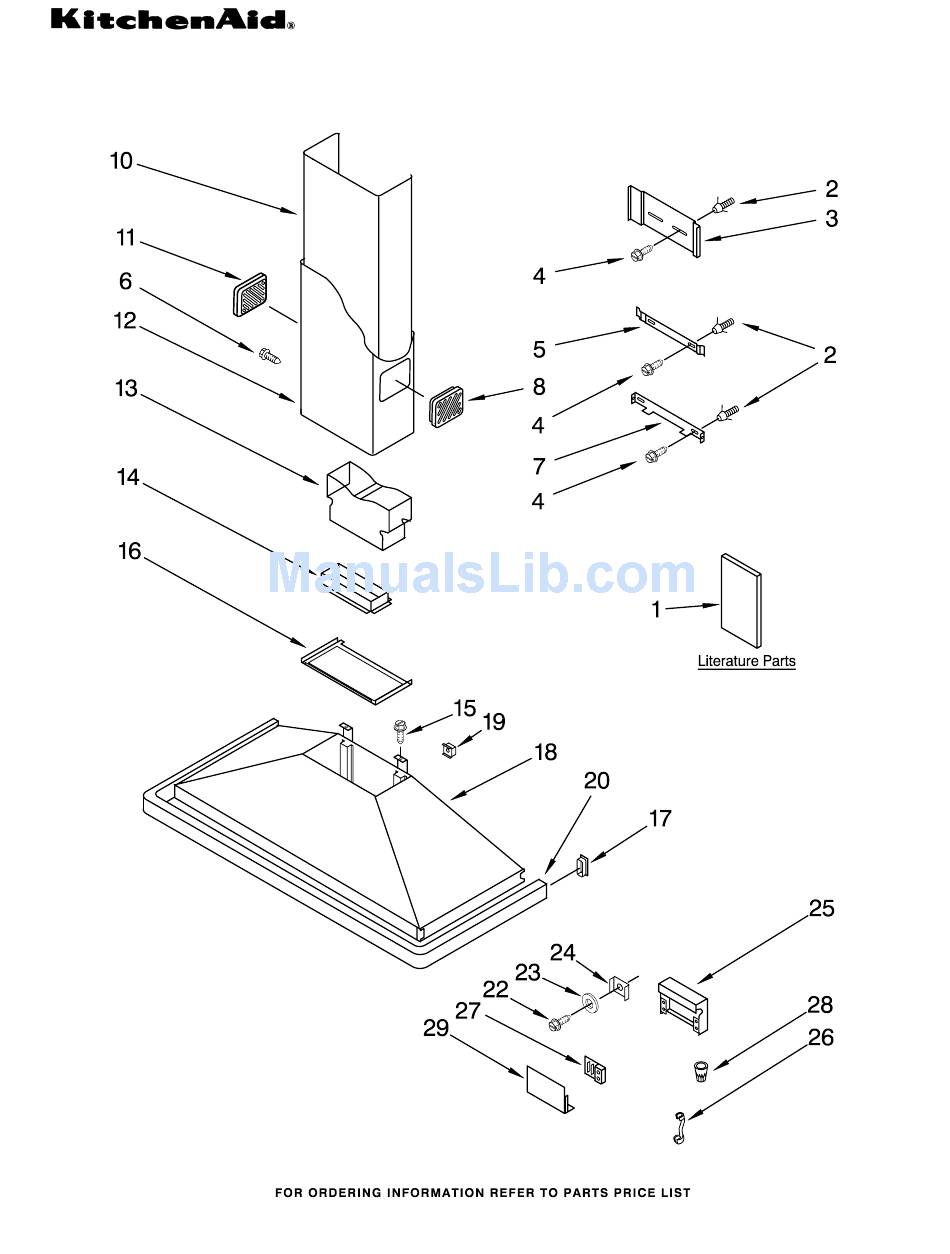

  • Page 2 For Models: KWCU205HWH1, KWCU205HSS1, KWCU205HBT1 Illus. Part DESCRIPTION Literature Parts 9763386 Use & Care Guide 4360296 Wiring Diagram 4360318 Plug 4360319 Bracket 4360320 Screw 4360321 Bracket, Middle 4360315 Screw 4360322 Bracket, Wall Air − Outlet (Right) 4360323 White Model 4360332 Stainless Model 4360400 Biscuit Model Pipe, Fitting (Upper)
  • Page 3 VENTILATION PARTS For Models: KWCU205HWH1, KWCU205HSS1, KWCU205HBT1 (White) (Stainless) (Biscuit) 8191106...
  • Page 4 For Models: KWCU205HWH1, KWCU205HSS1, KWCU205HBT1 Illus. Part DESCRIPTION 4360257 Filter, Charcoal 4360389 Bracket, Diffuser 4360188 Cover, Blower 4360180 Nut 4360187 Impeller 4360185 Motor Mount 4360416 Motor 4360059 Block Capacitor 4360176 Terminal 4360175 Capacitor 4360060 Box, Electric 4360056 Cover, Box 4360255 Extension, Diffuser 4360184 Housing, Motor 4360181 Impeller 4360179 Cover, Blower...
