Picture Adj. / Fine Picture / H Position / V Position

These adjustments are available when analog RGB signals
are input.
Usually, automatic adjustment is performed at the time of sig-
nal selection, but when automatic adjustment is not effec-
tive, these adjustments can be performed.
Note
When the image extends beyond the boundaries of the screen or
is smaller than the screen, check that the "View" → "Aspect" set-
ting is set to "Auto". See "Aspect" on Page E-51.

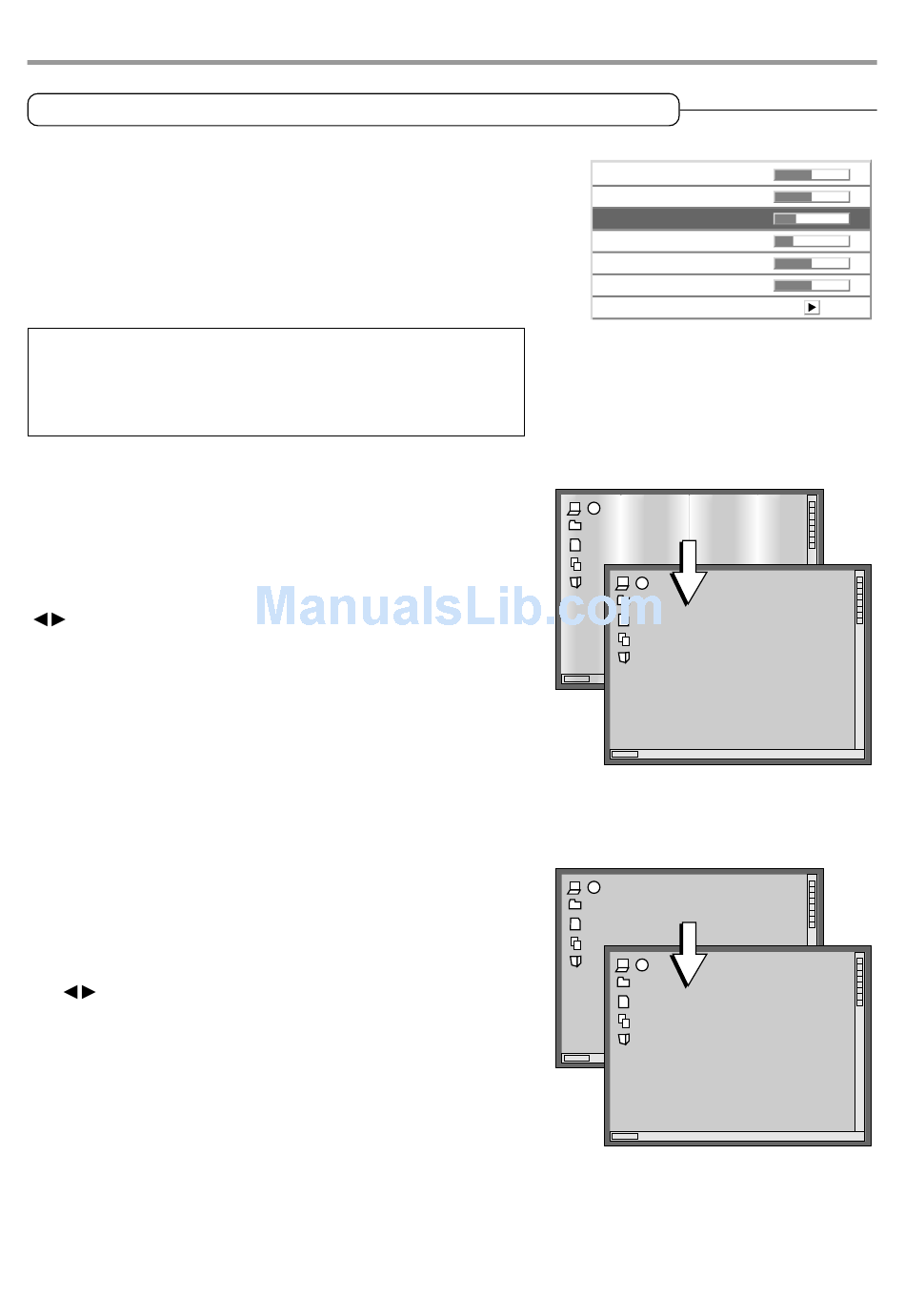

Picture Adj. (Picture Adjustment)
Adjust this when bright and dark vertical bands appear on the
screen.
Select the "Picture Adj." item name and adjust with the cursor
( ) buttons so that the vertical bands disappear and bright-
ness becomes uniform across the screen.
Fine Picture
Adjust this when the picture shows a lack of color fidelity or
flickering.
Select the "Fine Picture" item name and adjust with the cur-
sor ( ) buttons so that the lack of color fidelity or the flicker-
ing disappears.
E-47
–
Brightness 0
–
Contrast 0
–
Picture Adj.
-32
–
Fine Picture 26
–
H Position 0
–
V Position 0
Reset
+
+
+
+
+
+
