Personal Computers with a Mini D-Sub 15-Pin Connector

* Make the connection to the projector's PC connector and the mini D-sub 15-pin connector through the
use of a DVI/mini D-sub 15-pin conversion cable.
* When connecting, arrange the connectors in the proper orientation and plug in. Turn the screw knobs
and fasten to the connector of the main unit.
* Switch the input selection of the projector to "Analog RGB".
AUDIO VIDEO
Note
* Before making connections, check the power of the projector and the equipment to be connected is switched
off.
* When projection will be with a notebook computer connected, knowledge will be required for the cable connec-
tion and notebook computer startup procedure as well as the operation that follows startup. Please consult the
instruction manual of your notebook computer or the on-line help.

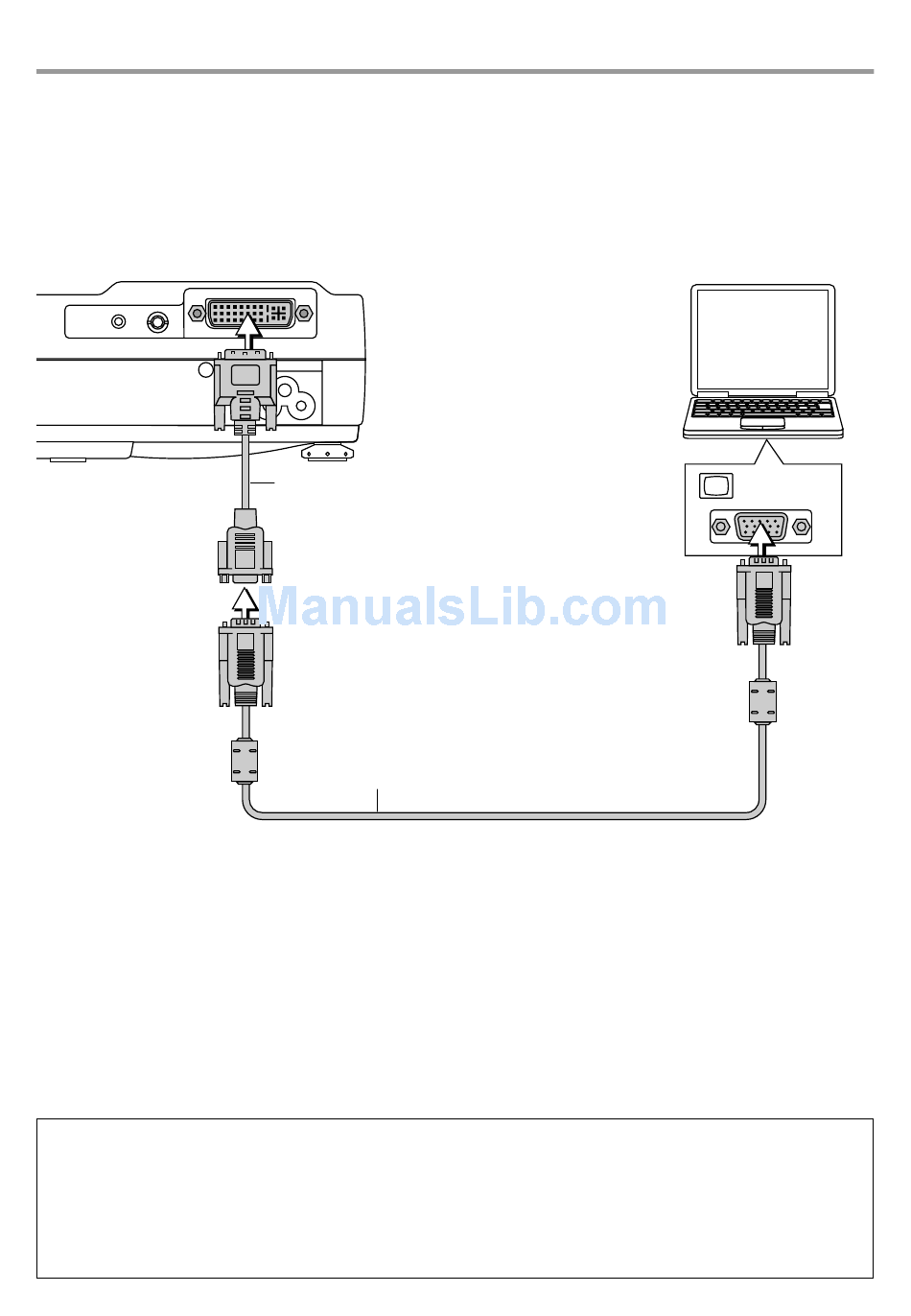

PC
DVI/mini D-sub 15-pin conversion
cable (Supplied item)
RGB signal cable (Supplied item)
Connecting Personal Computers and Video Equipment
Monitor output
E-19
Personal computer
