SETTING UP YOUR DVD PLAYER

CAUTION:
• Be sure to turn off the Player and equipment to be connected before connecting.
• Read through the operation manual for the equipment to be connected.
• Be sure that the colours of the jacks and plugs match up when using a VIDEO/AUDIO cable.
• Be sure to keep the Player connection cables separate from the TV antenna cable when you install the Player, because it
may cause electrical interference when you are watching television programs.

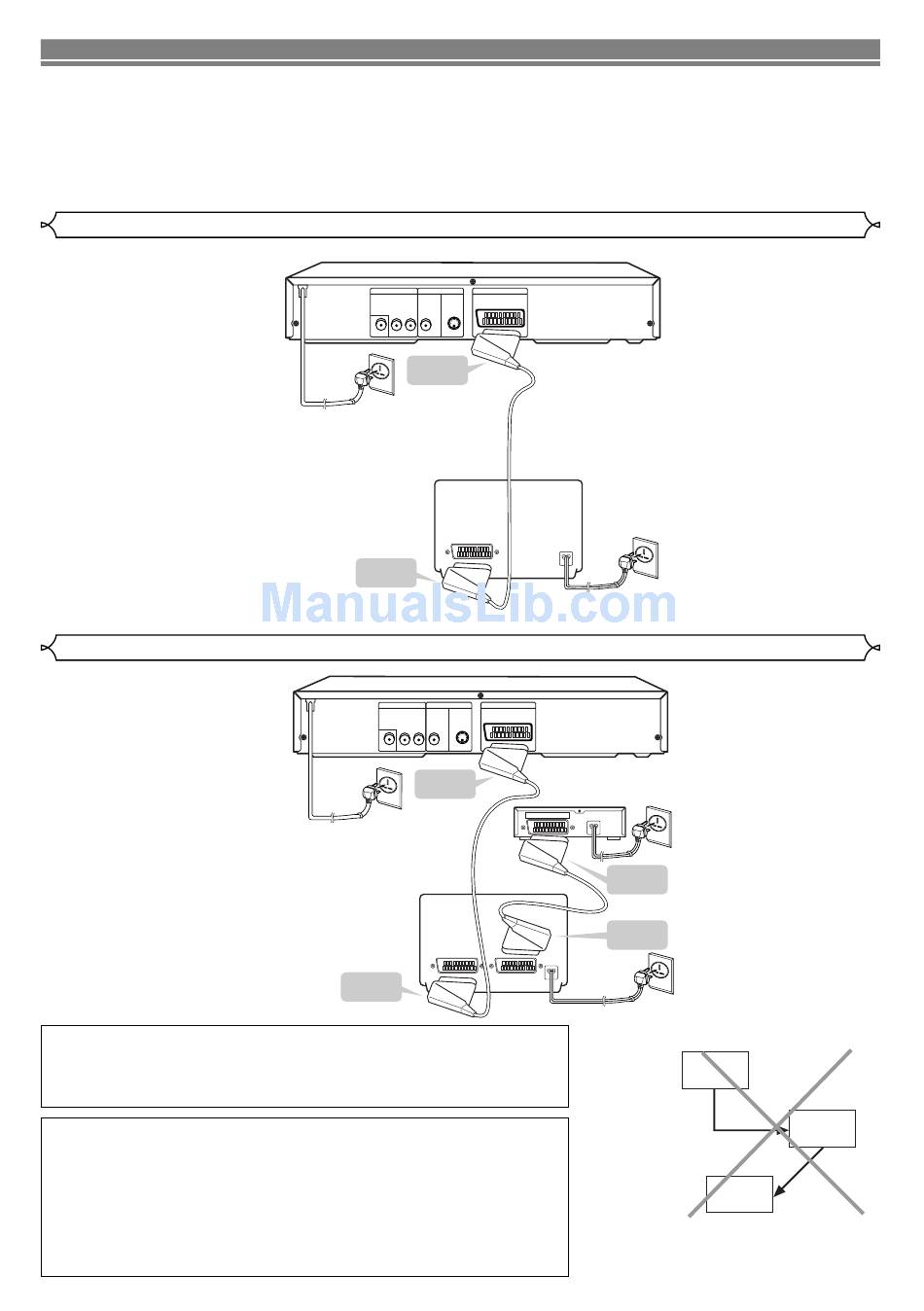

Connecting a TV with AV OUT SCART socket

Use the SCART cable (com-
mercially available) to connect
the Player to your TV.

If your TV has two SCART sockets

CAUTION:
• Do not connect the Player to a VCR. If you view the Picture on your TV
after making the connections shown on the right, a picture noise may
appear. Connect the Player to your TV directly.
NOTE:
• The player is continuously outputting the RGB and the VIDEO (COMPO-
SEITE) signal. Select either (RGB or COMPOSITE) signal on your TV side.
Some TV can recognize the RGB signal automatically. In this case, the player
outputs the RGB signal prior to the VIDEO (COMPOSITE) signal.
• When you play the VCR, please select the VIDEO (COMPOSITE) signal on
your TV. Otherwise the VCR image will not be seen.
Please refer to your TV's manual for more infomation.
AUDIO OUT VIDEO OUT
AV (TV)
DIGITAL R L VIDEO S-VIDEO
To AV OUT
SCART
SCART Cable
(commercially available)
To SCART
input
AUDIO OUT VIDEO OUT
AV (TV)
S-VIDEO
DIGITAL R L VIDEO
To AV OUT
SCART
SCART Cable
(commercially available)
TV
To SCART
input
– 8 –
DVD Player
TV
DVD Player
VCR
SCART OUTPUT
To SCART
output
SCART Cable
(commercially available)
To SCART
input
Player
DVD
VCR
TV
EN
