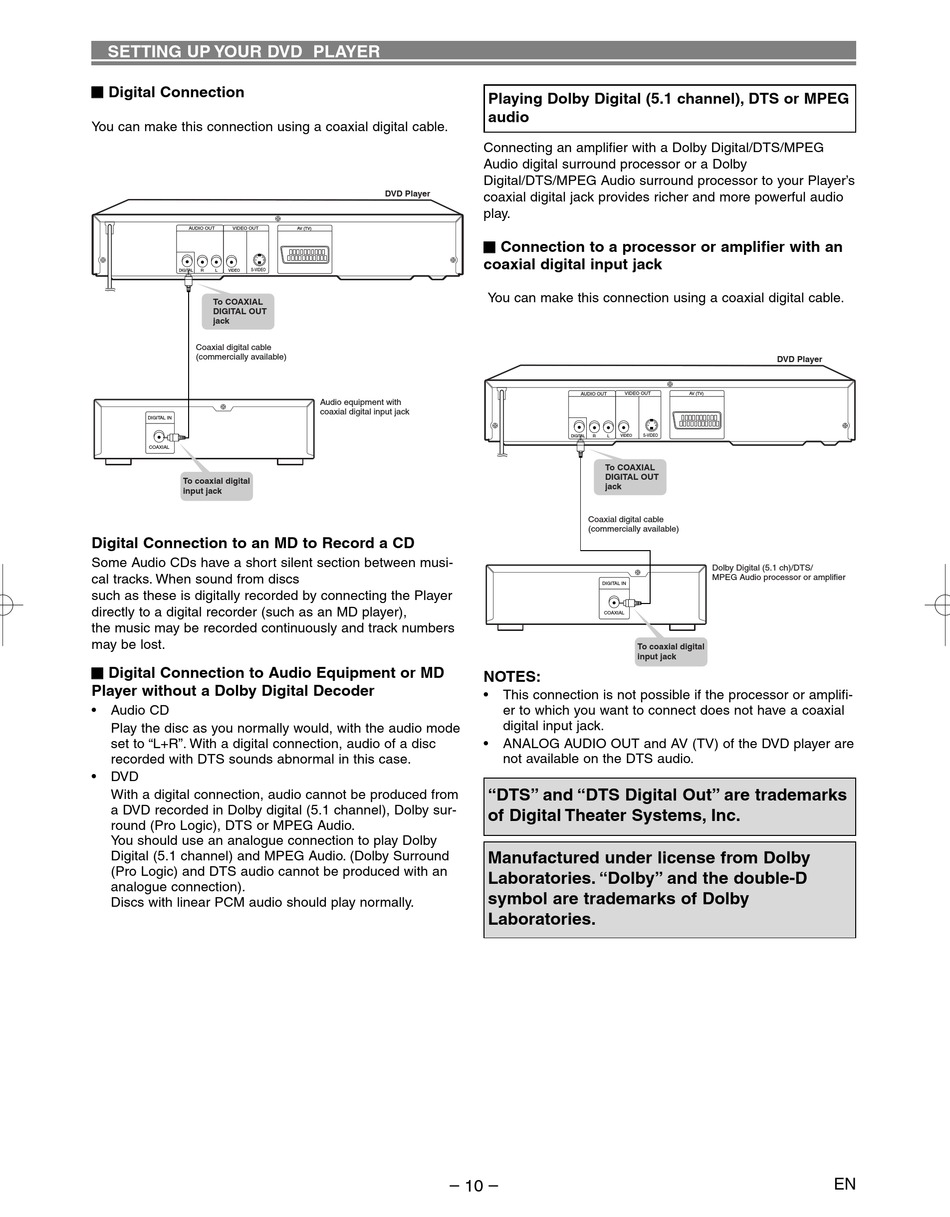

SETTING UP YOUR DVD PLAYER
C C Digital Connection
You can make this connection using a coaxial digital cable.
AUDIO OUT VIDEO OUT
DIGITAL R L VIDEO
To COAXIAL
DIGITAL OUT
jack
Coaxial digital cable
(commercially available)
DIGITAL IN
COAXIAL
To coaxial digital
input jack
Digital Connection to an MD to Record a CD
Some Audio CDs have a short silent section between musi-
cal tracks. When sound from discs
such as these is digitally recorded by connecting the Player
directly to a digital recorder (such as an MD player),
the music may be recorded continuously and track numbers
may be lost.
C C Digital Connection to Audio Equipment or MD
Player without a Dolby Digital Decoder
• Audio CD
Play the disc as you normally would, with the audio mode
set to "L+R". With a digital connection, audio of a disc
recorded with DTS sounds abnormal in this case.
• DVD
With a digital connection, audio cannot be produced from
a DVD recorded in Dolby digital (5.1 channel), Dolby sur-
round (Pro Logic), DTS or MPEG Audio.
You should use an analogue connection to play Dolby
Digital (5.1 channel) and MPEG Audio. (Dolby Surround
(Pro Logic) and DTS audio cannot be produced with an
analogue connection).
Discs with linear PCM audio should play normally.
DVD Player
AV (TV)
S-VIDEO
Audio equipment with
coaxial digital input jack
Playing Dolby Digital (5.1 channel), DTS or MPEG
audio
Connecting an amplifier with a Dolby Digital/DTS/MPEG
Audio digital surround processor or a Dolby
Digital/DTS/MPEG Audio surround processor to your Player's
coaxial digital jack provides richer and more powerful audio
play.
C C Connection to a processor or amplifier with an
coaxial digital input jack
You can make this connection using a coaxial digital cable.
AUDIO OUT
DIGITAL R L
To COAXIAL
DIGITAL OUT
jack
Coaxial digital cable
(commercially available)
DIGITAL IN
COAXIAL
NOTES:
• This connection is not possible if the processor or amplifi-
er to which you want to connect does not have a coaxial
digital input jack.
• ANALOG AUDIO OUT and AV (TV) of the DVD player are
not available on the DTS audio.
"DTS" and "DTS Digital Out" are trademarks
of Digital Theater Systems, Inc.
Manufactured under license from Dolby
Laboratories. "Dolby" and the double-D
symbol are trademarks of Dolby
Laboratories.
– 10 –
DVD Player
VIDEO OUT
AV (TV)
S-VIDEO
VIDEO
Dolby Digital (5.1 ch)/DTS/
MPEG Audio processor or amplifier
To coaxial digital
input jack
EN
