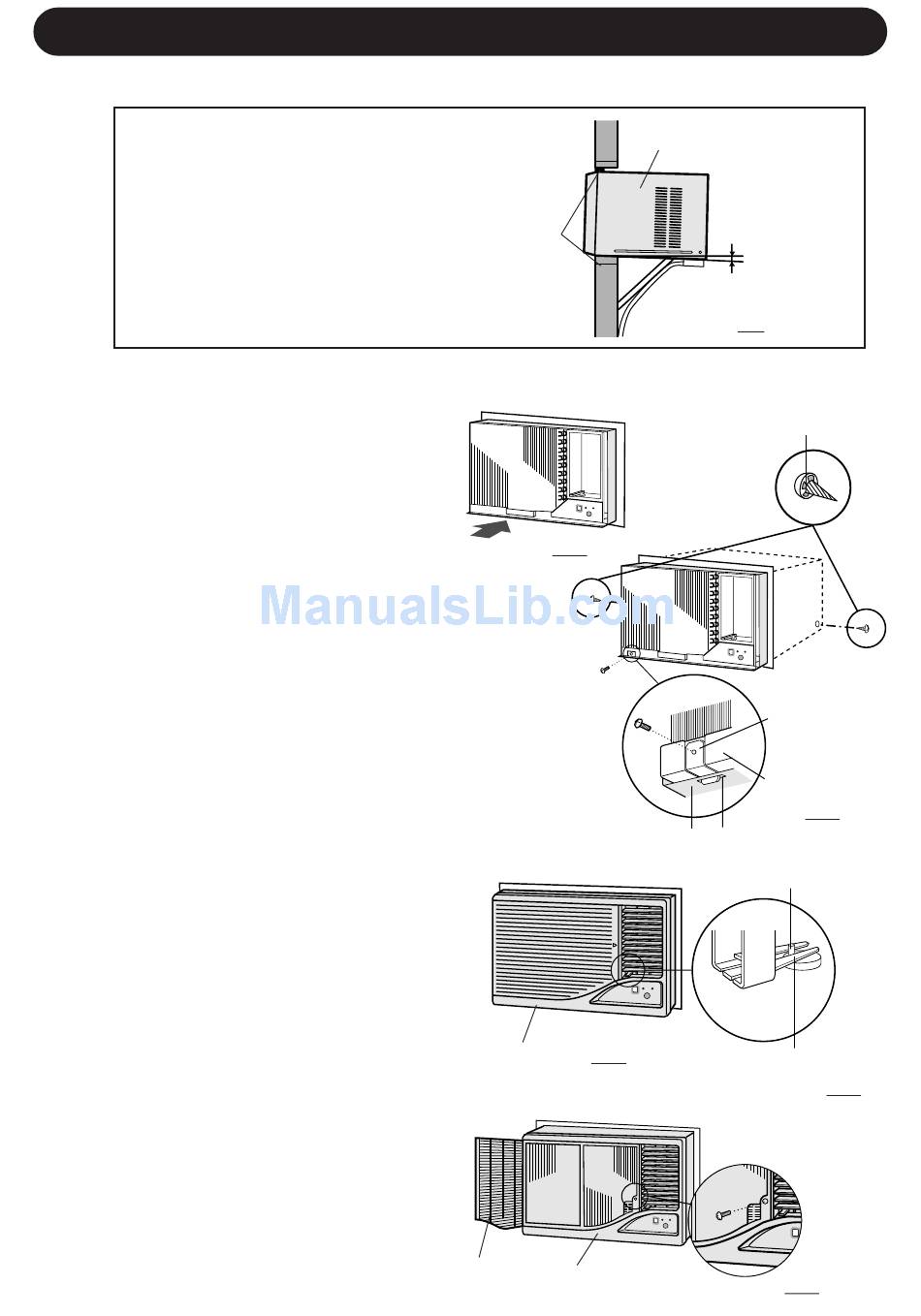

INSTALLATION
WARNING:
At this step, make sure the cabinet is
inclined approximately 1cm (3/8") to
the back (Fig.9).
If the cabinet is not properly inclined,
the water collected in the bottom tray
during operation will not drain properly
and may flow into the room where the
air conditioner is installed.
(3)
Cut the gasket to an appropriate
length and stuff it into the gap
around the mounting frame and
the unit to seal outside air. (Fig.8)
5
(1) Slide the chassis back into the
cabinet. (Fig. 10)
Secure the chassis to the cabinet
(2)
using the screw and angle removed
in step 2. Push the angle into the
gap between the chassis and the
cabinet. Hook the angle to the slit
of the cabinet, next screw it on to
the chassis. (Fig. 11)
Replace the front panel. (Fig.12)
(3)
Slide the crank shaft into the open-
ing of the louver link at the back of
the front panel. (Fig.13)
(4)
Open the grille and secure the front
panel with the screw removed in
step 1 (Fig.14). Replace the air
filter and close the grille firmly.
mounting
frame
Fig.10
Front panel
Fig.12
Grille
Front panel
18
cabinet
incline backwards about 1cm
(3/8")
Fig.9
Serration
Scratching screw for
grounding.
Angle
Chassis
Fig.11
Cabinet Slit
Crank shaft
Front panel
back view
Louver link
Fig.14
Fig.13
