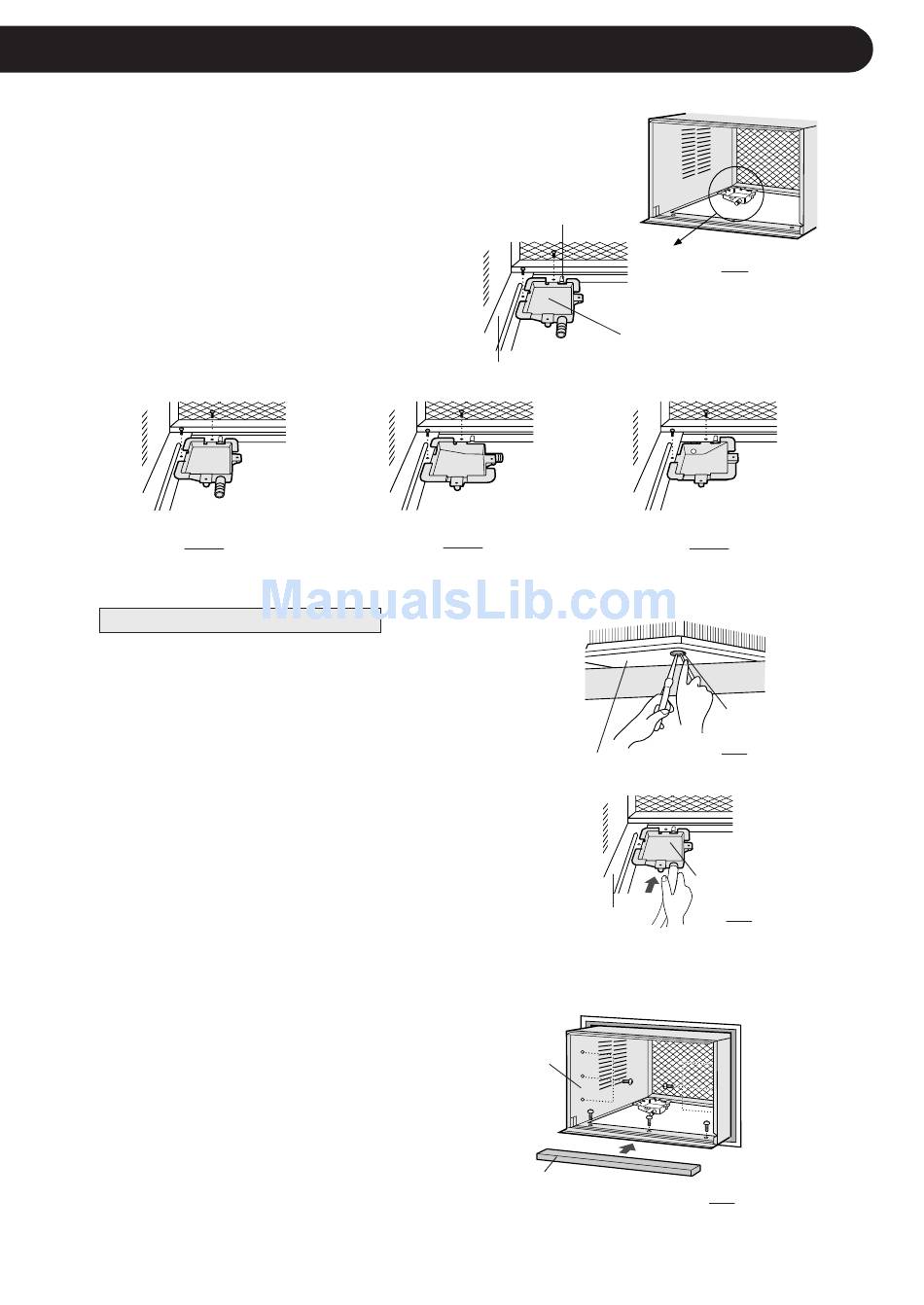

Attach the provided drain tray to the
cabinet in case drainage becomes nec-
essary. Use the 2 short gold screws
(1.2cm/0.5") to fix it. (Fig.5)
Drain tray can be attached in three
directions according to the installation
location of the air conditioner unit.
Attach drain tray in direction that its brim
will not hit upon the raised of cabinet
edge.
Fig.5-1
When drainage is necessary
If water drainage is necessary in high
humidity district, remove the rubber cap
on the bottom of the chassis. Remove
the rubber cap from the bottom with a
plier. (Fig.6)
A hose of an appropriate length have to
be attached to the drain tray's drain
outlet. (Fig.7)
4
Install the cabinet into the installation
(1)
opening.(Fig.8)
Secure the cabinet to the mounting
(2)
frame using the 9 long gold screws.
(2.5cm/1"). (Fig.8)
Raised portion
Cabinet
Fig.5-2
Chassis
Cabinet
Cabinet
Gasket
17
Fig.5
Drain tray
Fig.5-3
Rubber cap
Fig.6
Drain tray
Fig.7
Fig.8
