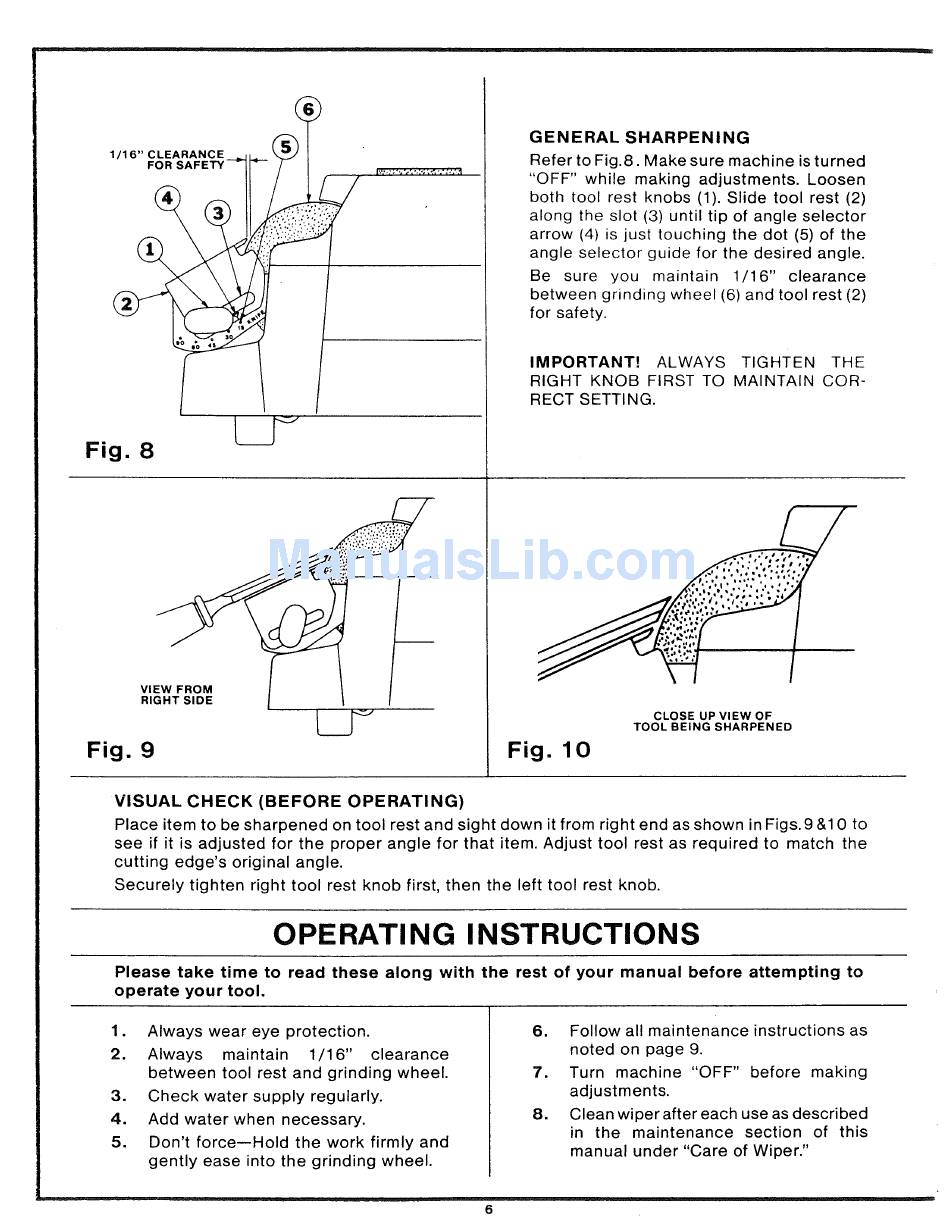

Craftsman 146.669950 Owner's Manual page 6

1/16" CLEARANCE ,...jL..,__(__
Fig. 8
• • ..,,.,.,,,.. ,.,,
L_F
Fig. 9
GENERAL SHARPENING
Refer to Fig.8. Make sure machine is turned
"OFF" while making adjustments. Loosen
both tool rest knobs (1). Slide tool rest (2)
along the slot (3) until tip of angle selector
arrow (4) is just touching the dot (5) of the
angle selector guide for the desired angle.
Be sure you maintain 1/16" clearance
between grinding wheel (6) and tool rest (2)
for safety.
IMPORTANT! ALWAYS TIGHTEN THE
RIGHT KNOB FIRST TO MAINTAIN COR-
RECT SETTING.
Fig. 1 0
CLOSE UP VIEW OF
TOOL BEING SHARPENED
VISUAL CHECK (BEFORE OPERATING)
Place item to be sharpened on tool rest and sight down it from right end as shown inFigs.g&10 to
see if it is adjusted for the proper angle for that item. Adjust tool rest as required to match the
cutting edge's original angle.
Securely tighten right tool rest knob first, then the left tool rest knob.
OPERATING INSTRUCTIONS
Please take time to read these along with the rest of your manual before attempting to
operate your tool.
1. Always wear eye protection.
2. Always maintain 1/16" clearance
between tool rest and grinding wheel.
3. Check water supply regularly.
4. Add water when necessary.
5. Don't force--Hold the work firmly and
gently ease into the grinding wheel.
6. Follow all maintenance instructions as
noted on page 9.
7. Turn machine "OFF" before making
adjustments.
8. Clean wiper after each use as described
in the maintenance section of this
manual under "Care of Wiper."
6
