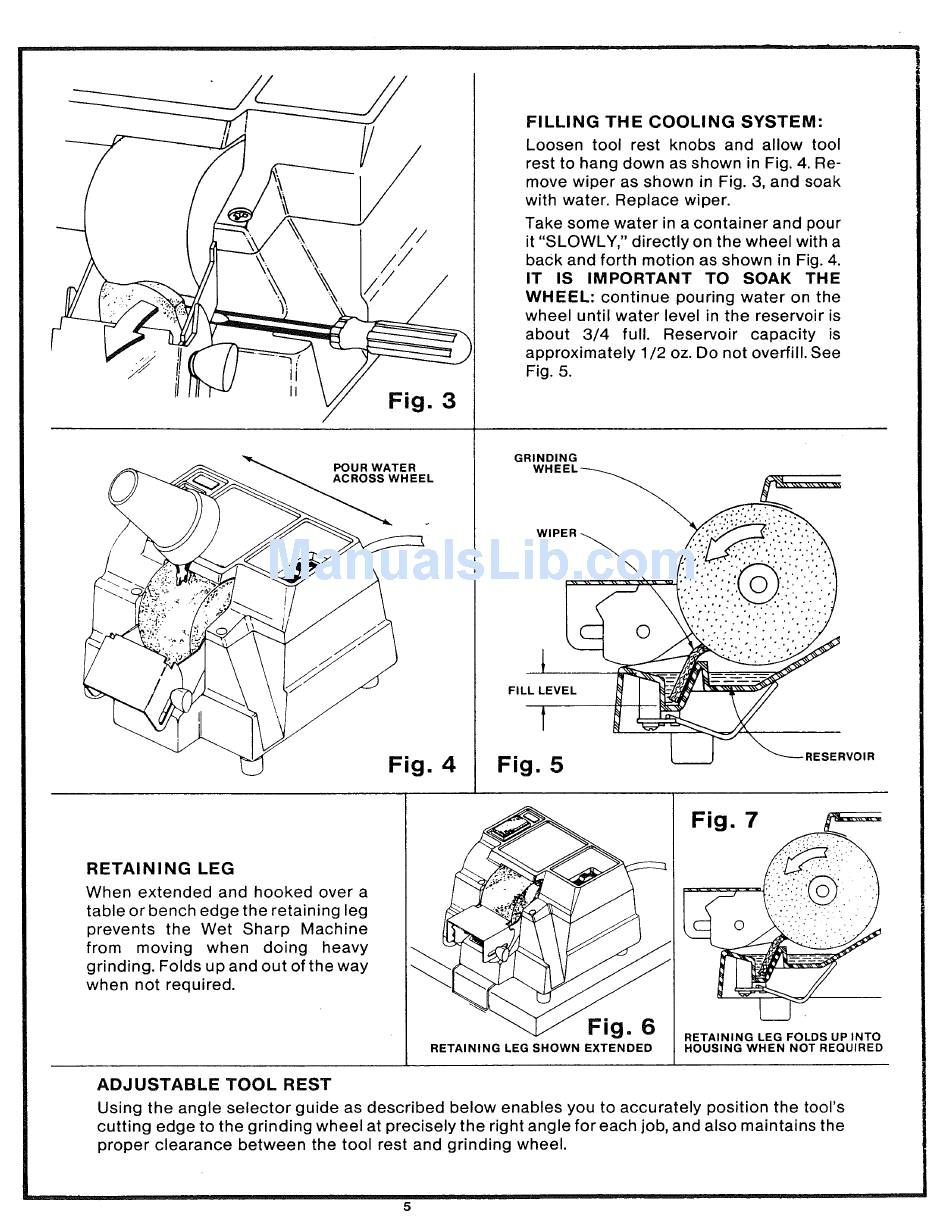

Craftsman 146.669950 Owner's Manual page 5

i m . ,
!i
II
Fig. 3
POUR WATER
ACROSS WHEEL
Fig. 4
FILLING THE COOLING SYSTEM:
Loosen tool rest knobs and allow tool
rest to hang down as shown in Fig. 4. Re-
move wiper as shown in Fig. 3, and soak
with water. Replace wiper.
Take some water in a container and pour
it "SLOWLY," directly on the wheel with a
back and forth motion as shown in Fig. 4.
IT IS IMPORTANT TO SOAK THE
WHEEL: continue pouring water on the
wheel until water level in the reservoir is
about 3/4 full. Reservoir capacity is
approximately 1/2 oz. Do not overfill. See
Fig. 5.
GRINDING
WHEEL__,_
FILL LEVEL
t
Fig. 5
RESERVOIR
RETAINING LEG
When extended and hooked over a
table or bench edge the retaining leg
prevents the Wet Sharp Machine
from moving when doing heavy
grinding. Folds up and out of the way
when not required.
Fig. 6
RETAINING LEG SHOWN EXTENDED
Fig. 7
RETAINING LEG FOLDS UP INTO
HOUSING WHEN NOT REQUIRED
ADJUSTABLE TOOL REST
Using the angle selector guide as described below enables you to accurately position the tool's
cutting edge to the grinding wheel at precisely the right angle for each job, and also maintains the
proper clearance between the tool rest and grinding wheel.
n
5
