Jenn-Air JGR8890ADP14 Parts List

Jenn-Air JGR8890ADP14 Parts List

30" gas freestanding self clean range sealed burner convection
Hide thumbs Also See for JGR8890ADP14:

Advertisement

Quick Links

Download this manual See also: Use and Care Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10163152 Installation
Instructions
8113P620−60 Owners Manual
2
Cap, Burner
74007750 (LF−EX−LG)
74010189 (LR & RF−MED)
74007748 (RR−SM)
9−07 Litho In U.S.A. (pl)

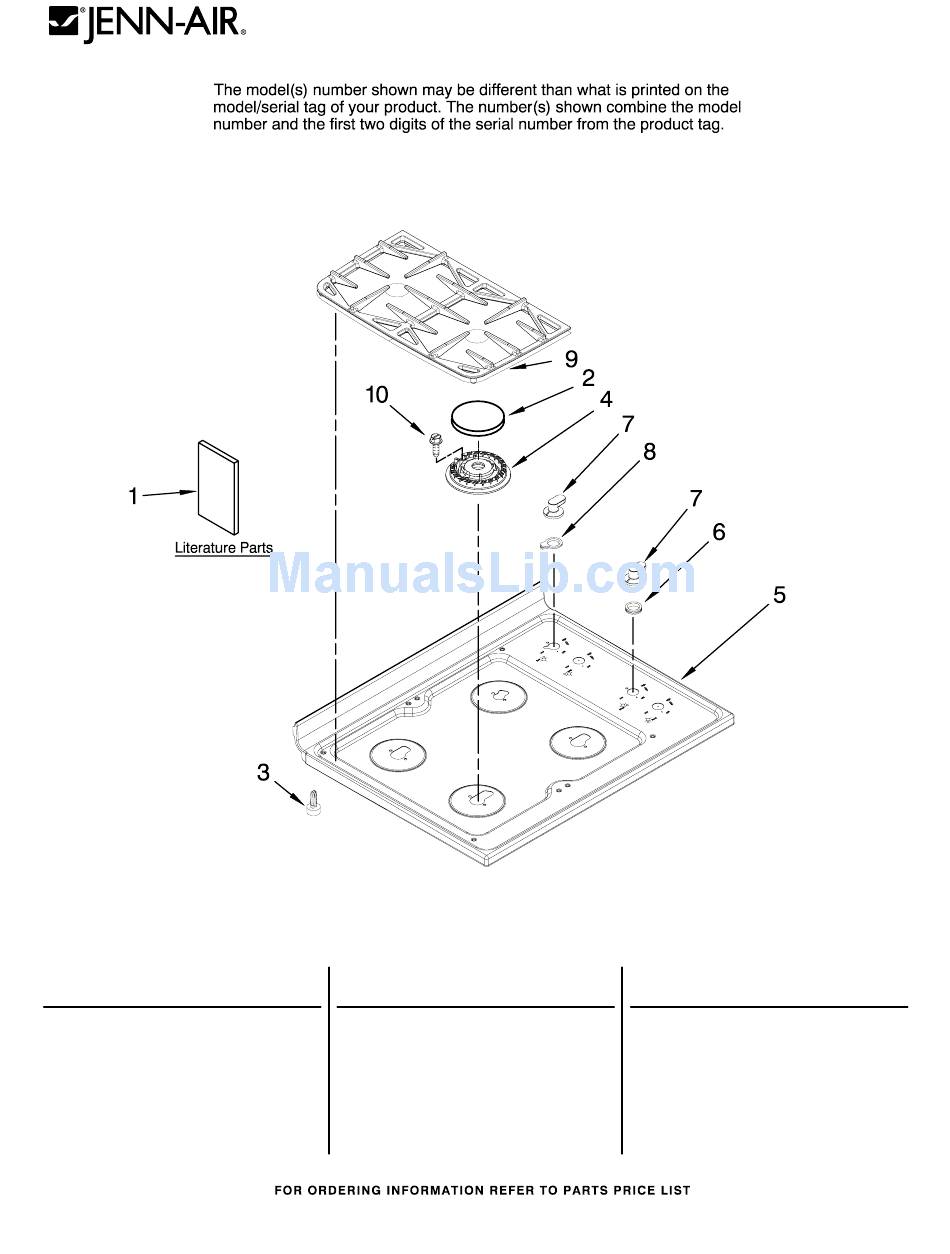

COOKTOP PARTS
For Models: JGR8890ADP14
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
3
74004558 Glide, Main Top
4
Burner
74007411 (RR)
74009900 (LR & RF)
74007413 (LF)
5
74011885 Cooktop (BLK)
6
74005934 Grommet, Knob (3)
(RF,LF, & LR)
1
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
CONVECTION
Illus.
Part
No.
No.
DESCRIPTION
7
74011886 Knob, Control (4)
8
74007368 Grommet, Knob (1)
(RR)
9
74011889 Grate, Burner (2)
(Incl. Bumpers)
10
7101P685−60 Screw (8)
Part No. W10161236 Rev A

Advertisement

loading
Need help?

Need help?

Do you have a question about the JGR8890ADP14 and is the answer not in the manual?

Questions and answers

Related Manuals for Jenn-Air JGR8890ADP14

Summary of Contents for Jenn-Air JGR8890ADP14

  • Page 1 COOKTOP PARTS For Models: JGR8890ADP14 (Stainless Steel) 30" GAS FREESTANDING SELF CLEAN RANGE SEALED BURNER CONVECTION Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 74004558 Glide, Main Top 74011886 Knob, Control (4) W10163152 Installation Burner 74007368 Grommet, Knob (1) Instructions 74007411 (RR) (RR)

  • Page 2: Control Panel Parts

    CONTROL PANEL PARTS For Models: JGR8890ADP14 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Support, Backguard 74009537 Screw 74010084 Shield, Sight 5 W10163277 Bracket, Control 74010202 Left 74010983 Cover, Rear Wire 74009800 Shield, Vent 74010201 Right 74003976 Screw 74009797 Trim, Vent 7 W10163250 Control Assy.

  • Page 3: Manifold Parts

    MANIFOLD PARTS For Models: JGR8890ADP14 (Stainless Steel) W10161236...
  • Page 4 MANIFOLD PARTS For Models: JGR8890ADP14 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 74011290 Valve, Bake/Broil 74007387 Regulator, 74009416 Screw, Valve (4) 74011293 Tubing, Broil Pressure Holder, Orifice Burner Igniter 74007962 (LF) (Incl. Orifice) 74007966 Broil 74007961 (LR & RF) 74007426 Bracket, Orfice 7432P143−60 Bake 74007816 (RR)

  • Page 5: Chassis Parts

    CHASSIS PARTS For Models: JGR8890ADP14 (Stainless Steel) W10161236...
  • Page 6 CHASSIS PARTS For Models: JGR8890ADP14 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 74001530 Screw 74007382 Bottom, Lower Oven 74007374 Extension, Lower Support, Upr Oven 74007436 Trim, Kickplate Vent 74007499 Right 74009537 Screw (2) 8004P024−60 Spacer, Side Panel 74007500 Left 74005401 Screw 74001530 Screw...
  • Page 7 UPPER DOOR PARTS For Models: JGR8890ADP14 (Stainless Steel) W10161236...
  • Page 8 UPPER DOOR PARTS For Models: JGR8890ADP14 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 74008500 Handle, Door 74004896 Retainer, Glass 74004567 Frame, Glass 74011888 Panel, Door Support (2) 74004564 Liner, Door 74001530 Screw 74010194 Glass, Outer Door 74001574 Nut, Snap (2) 74010785 Plate, Back (2) 74004691 Glass, Inner Door...
  • Page 9 LOWER DOOR PARTS For Models: JGR8890ADP14 (Stainless Steel) W10161236...
  • Page 10 LOWER DOOR PARTS For Models: JGR8890ADP14 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 74008916 Gasket, Window 74011457 Baffle, Door 74010041 Retainer, Glass 74006889 Nameplate 74003647 Insulation Support (2) 74011456 Liner, Door 74008500 Handle, Door 10 W10163149 Shield, Door 74001574 Nut, Snap (2) 74011887 Panel, Door 74010196 Glass, Outer Door...
  • Page 11 RACK PARTS For Models: JGR8890ADP14 (Stainless Steel) Illus. Part DESCRIPTION 74004578 Rack, Upper Oven 74005218 Rack, Telescoping 74011813 Rack, Lwr Oven (2) W10161236...
  • Page 12 OPTIONAL PARTS (NOT INCLUDED) For Models: JGR8890ADP14 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION REFINISHING MATERIAL PAINT, BULK (1 qt.) Following Parts Not Illustrated 799832 Kit, Porcelain 799344 White (Uncut) Repair (White) 4392900 Biscuit (Uncut) 242756 Touch−Up SPLICING WIRES−−25FT.
