Use and Care Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10163152 Installation
Instructions
8113P620−60 Owners Manual
2
Cap, Burner
74007750 (LF−EX−LG)
74010189 (LR & RF−MED)
74007748 (RR−SM)
9−07 Litho In U.S.A. (pl)

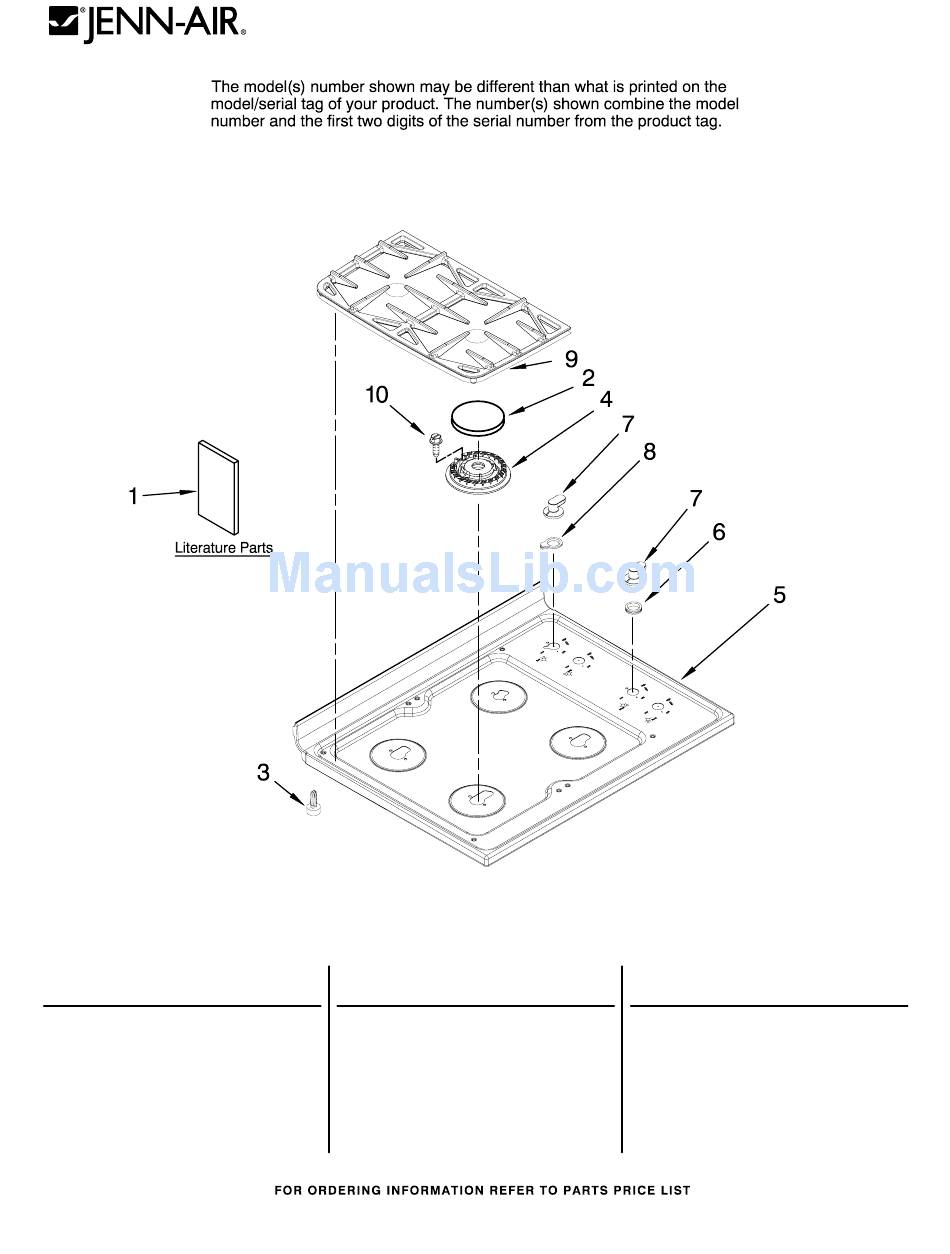

COOKTOP PARTS
For Models: JGR8890ADP13
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
3
74004558 Glide, Main Top
4
Burner
74007411 (RR)
74009900 (LR & RF)
74007413 (LF)
5
74011885 Cooktop (BLK)
1
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
CONVECTION
Illus.
Part
No.
No.
DESCRIPTION
6
74005934 Grommet, Knob (3)
(RF,LF, & LR)
7
74011886 Knob, Control (4)
8
74007368 Grommet, Knob (1)
(RR)
9
74011889 Grate, Burner (2)
(Incl. Bumpers)
10
7101P685−60 Screw (8)
Part No. W10167577 Rev A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jenn-Air JGR8890ADP13
Summary of Contents for Jenn-Air JGR8890ADP13
- Page 1 COOKTOP PARTS 30" GAS FREESTANDING For Models: JGR8890ADP13 SELF CLEAN RANGE SEALED BURNER (Stainless Steel) CONVECTION Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 74004558 Glide, Main Top Literature Parts 74005934 Grommet, Knob (3) Burner (RF,LF, & LR) W10163152 Installation 74007411 (RR) 74011886 Knob, Control (4) Instructions...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: JGR8890ADP13 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 74010084 Shield, Sight Support, Backguard 74009537 Screw 5 W10163277 Bracket, Control 74010983 Cover, Rear Wire 74010202 Left 74003976 Screw 74010201 Right 74009800 Shield, Vent 74009978 Shield, Wire 74009797 Trim, Vent 7 W10163250 Control Assy. -
Page 3: Manifold Parts
MANIFOLD PARTS For Models: JGR8890ADP13 (Stainless Steel) W10167577... - Page 4 MANIFOLD PARTS For Models: JGR8890ADP13 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 74011296 Tubing, Bake 74009416 Screw, Valve (4) 74010094 Burner, Bake Burner Holder, Orifice 74007387 Regulator, (Incl. Orifice) 74007962 (LF) Pressure 74011290 Valve, Bake/Broil 74007961 (LR & RF) Igniter 74011293 Tubing, Broil 74007816 (RR)
-
Page 5: Chassis Parts
CHASSIS PARTS For Models: JGR8890ADP13 (Stainless Steel) W10167577... - Page 6 CHASSIS PARTS For Models: JGR8890ADP13 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 74007450 Plate, Broil 74007383 Baffle, Lower Oven 74007374 Extension, Lower Fitting Vent Vent 74010085 Bottom, Upper Oven 8004P024−60 Spacer, Side Panel 74001530 Screw 74007382 Bottom, Lower Oven 74001530 Screw Support, Upr Oven 74003283 Panel, Side (2)
- Page 7 UPPER DOOR PARTS For Models: JGR8890ADP13 (Stainless Steel) W10167577...
- Page 8 UPPER DOOR PARTS For Models: JGR8890ADP13 (Stainless Steel) Illus. Part DESCRIPTION 74008500 Handle, Door 74011888 Panel, Door 74001530 Screw 74010785 Plate, Back (2) (Handle Mtg.) 74011751 Screw 7201P017−60 Gasket, Window 74004896 Retainer, Glass Support (2) 74010194 Glass, Outer Door 74004691 Glass, Inner Door 74002979 Screw 74009976 Baffle, Door 74004569 Insulation (2)
- Page 9 LOWER DOOR PARTS For Models: JGR8890ADP13 (Stainless Steel) W10167577...
- Page 10 LOWER DOOR PARTS For Models: JGR8890ADP13 (Stainless Steel) Illus. Part DESCRIPTION 74008916 Gasket, Window 74006889 Nameplate 74008500 Handle, Door 74011887 Panel, Door 74010043 Insulation, Foil 74002979 Screw 74010785 Plate, Back (2) (Handle Mtg.) 74011751 Screw 74010041 Retainer, Glass Support (2) 10 W10163149 Shield, Door 74010196 Glass, Outer Door 74003649 Glass, Door...
- Page 11 RACK PARTS For Models: JGR8890ADP13 (Stainless Steel) Illus. Part DESCRIPTION 74004578 Rack, Upper Oven 74005218 Rack, Telescoping 74011813 Rack, Lwr Oven (2) W10167577...
- Page 12 OPTIONAL PARTS (NOT INCLUDED) For Models: JGR8890ADP13 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION REFINISHING MATERIAL PAINT, BULK (1 qt.) Following Parts Not Illustrated 799832 Kit, Porcelain 799344 White (Uncut) Repair (White) 4392900 Biscuit (Uncut) SPLICING WIRES−−25FT. 242756 Touch−Up 799340 Black (Uncut) Self−Clean(1/2 Pt)
