Jenn-Air JEI0430ADS0 Parts List

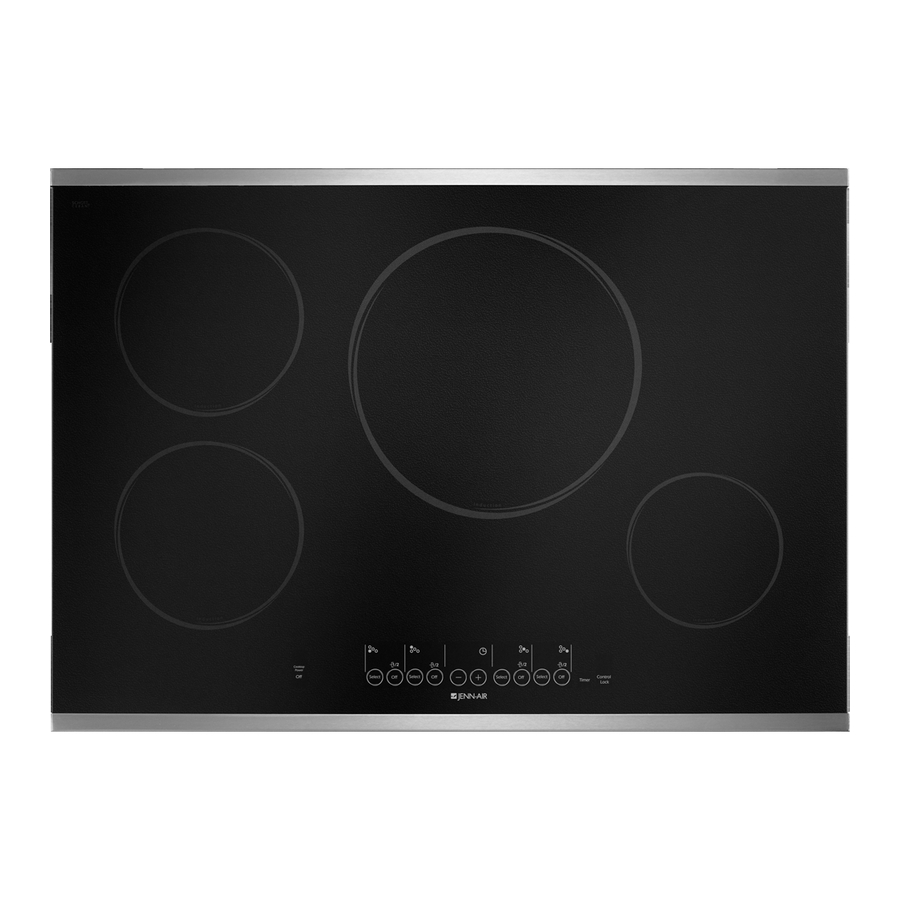

30" inducton cooktop
Hide thumbs Also See for JEI0430ADS0:
1
2
3
4

Advertisement

Table of Contents

See also: Instruction and Installation Manual

COOKTOP PARTS

30" INDUCTON
For Models: JEI0430ADS0
COOKTOP
(Stainless)
1−08 Litho in U.S.A. (jac)
1
Part No. W10184179 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JEI0430ADS0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jenn-Air JEI0430ADS0

Summary of Contents for Jenn-Air JEI0430ADS0

  • Page 1 COOKTOP PARTS 30" INDUCTON For Models: JEI0430ADS0 COOKTOP (Stainless) 1−08 Litho in U.S.A. (jac) Part No. W10184179 Rev. A...

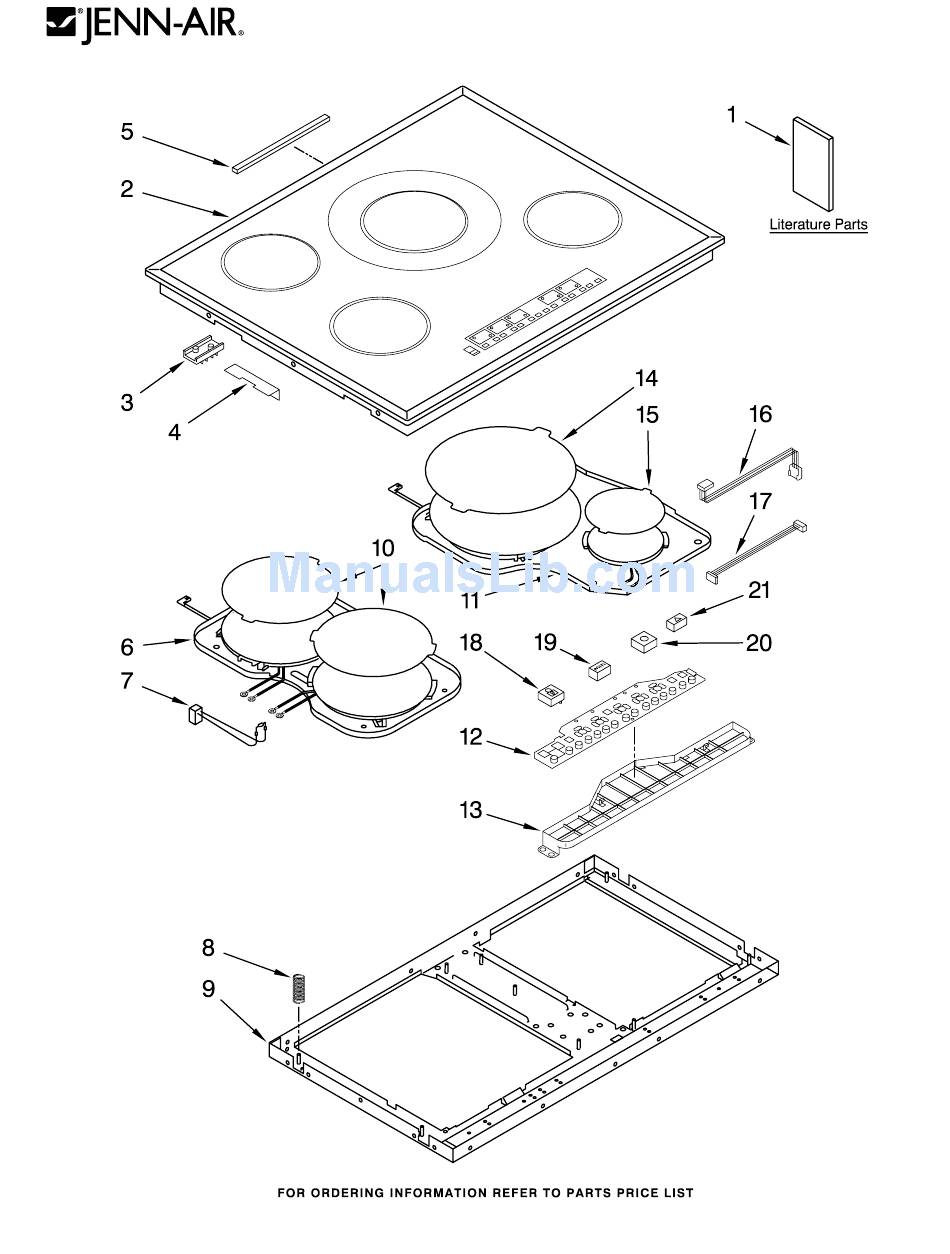

  • Page 2 COOKTOP PARTS For Models: JEI0430ADS0 (Stainless) Illus. Part DESCRIPTION Literature Parts W10098720 Instruct, Install W10141605 Owners Manual 2 W10178157 Cooktop, Glass 3 W10122355 Bracket, Mntg(Kit) 4 W10122356 Bracket, Mntg(Kit) 5 W10122347 Seal 6 W10122332 Hotplate (180−180) 7 W10122353 Sensor, NTC 8 W10122348 Spring 9 W10134542 Box, Burner 10 W10122333 Cover (Mica 180)
  • Page 3 INTERIOR PARTS For Models: JEI0430ADS0 (Stainless) W10184179...
  • Page 4 INTERIOR PARTS For Models: JEI0430ADS0 (Stainless) Illus. Part DESCRIPTION 1 W10122357 Cord, Power 2 W10122363 Fan, Blower 3 W10134543 Control, Elec 4 W10122364 Control, Elec 5 W10122380 Harness, Wire 6 W10122359 Harness, Wire 7 W10122375 Block, Fuse 8 W10122360 Bracket, Control 9 W10122368 Cover, Bottom 10 W10122365 Control, Elec 11 W10122377 Harness, Wire...
