36" INDUCTION

For Models: JEI0536ADS0

COOKTOP

(Stainless)

Part No. W10184181 Rev. A

1−08 Litho in U.S.A. (jac)

1

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the JEI0536ADS0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jenn-Air JEI0536ADS0

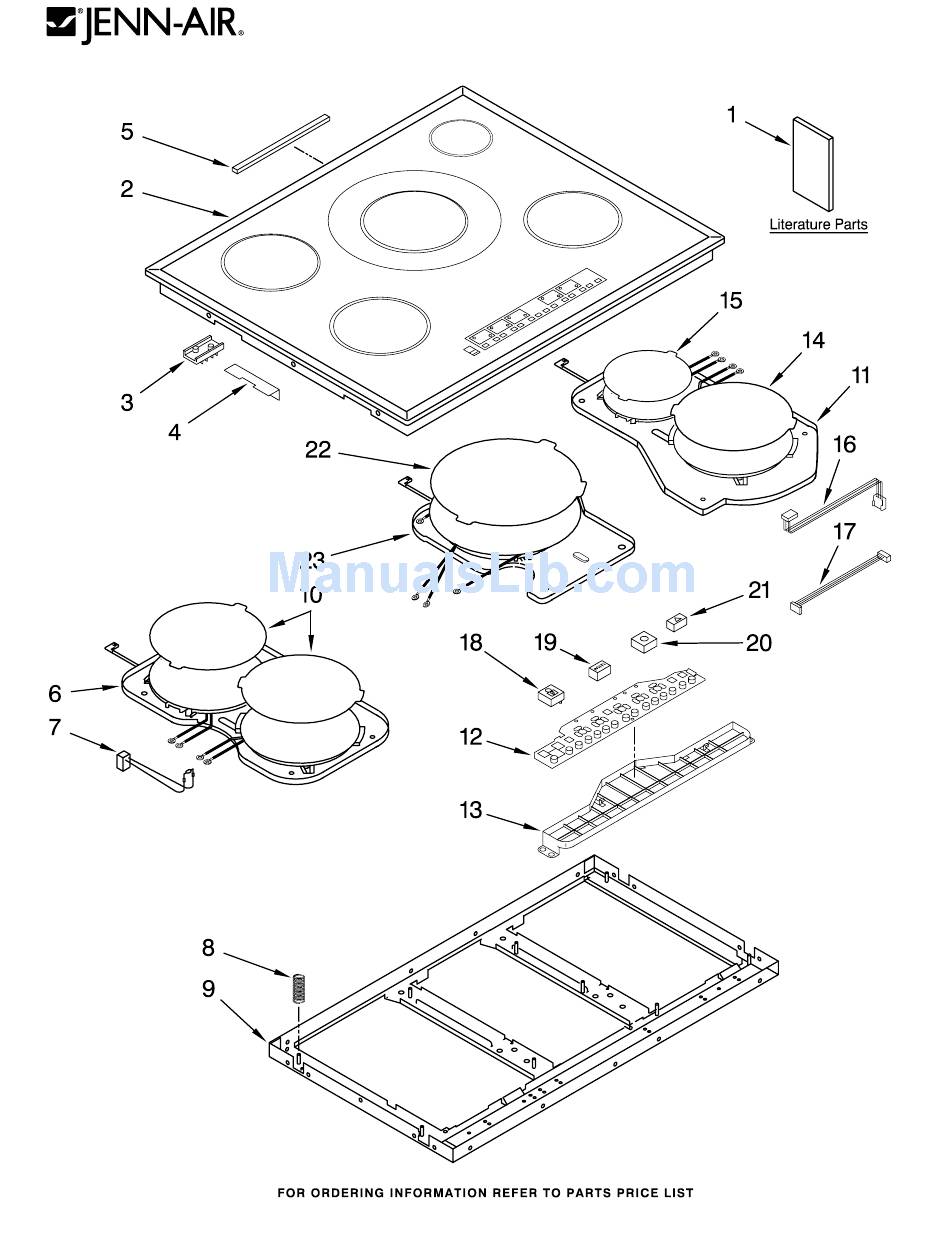

Page 1 COOKTOP PARTS 36" INDUCTION For Models: JEI0536ADS0 COOKTOP (Stainless) Part No. W10184181 Rev. A 1−08 Litho in U.S.A. (jac)
Page 2 COOKTOP PARTS For Models: JEI0536ADS0 (Stainless) Illus. Part DESCRIPTION Literature Parts W10098720 Instruct, Install W10141605 Owners Manual 2 W10178155 Cooktop, Glass 3 W10122355 Bracket, Mntg(Kit) 4 W10122356 Bracket, Mntg(Kit) 5 W10122347 Seal 6 W10122332 Hotplate (180−180) 7 W10122353 Sensor, NTC 8 W10122348 Spring 9 W10134544 Box, Burner 10 W10122333 Cover (Mica 180)
Page 3 INTERIOR PARTS For Models: JEI0536ADS0 (Stainless) W10184181...
Page 4 INTERIOR PARTS For Models: JEI0536ADS0 (Stainless) Illus. Part DESCRIPTION 1 W10122358 Cord, Power 2 W10122363 Fan, Blower 3 W10134543 Control, Elec 4 W10122364 Control, Elec 5 W10134545 Harness, Wire 6 W10122361 Harness, Wire 7 W10122375 Block, Fuse 8 W10122362 Bracket, Control 9 W10122369 Cover, Bottom 10 W10122366 Control, Elec 11 W10122376 Harness, Wire...
