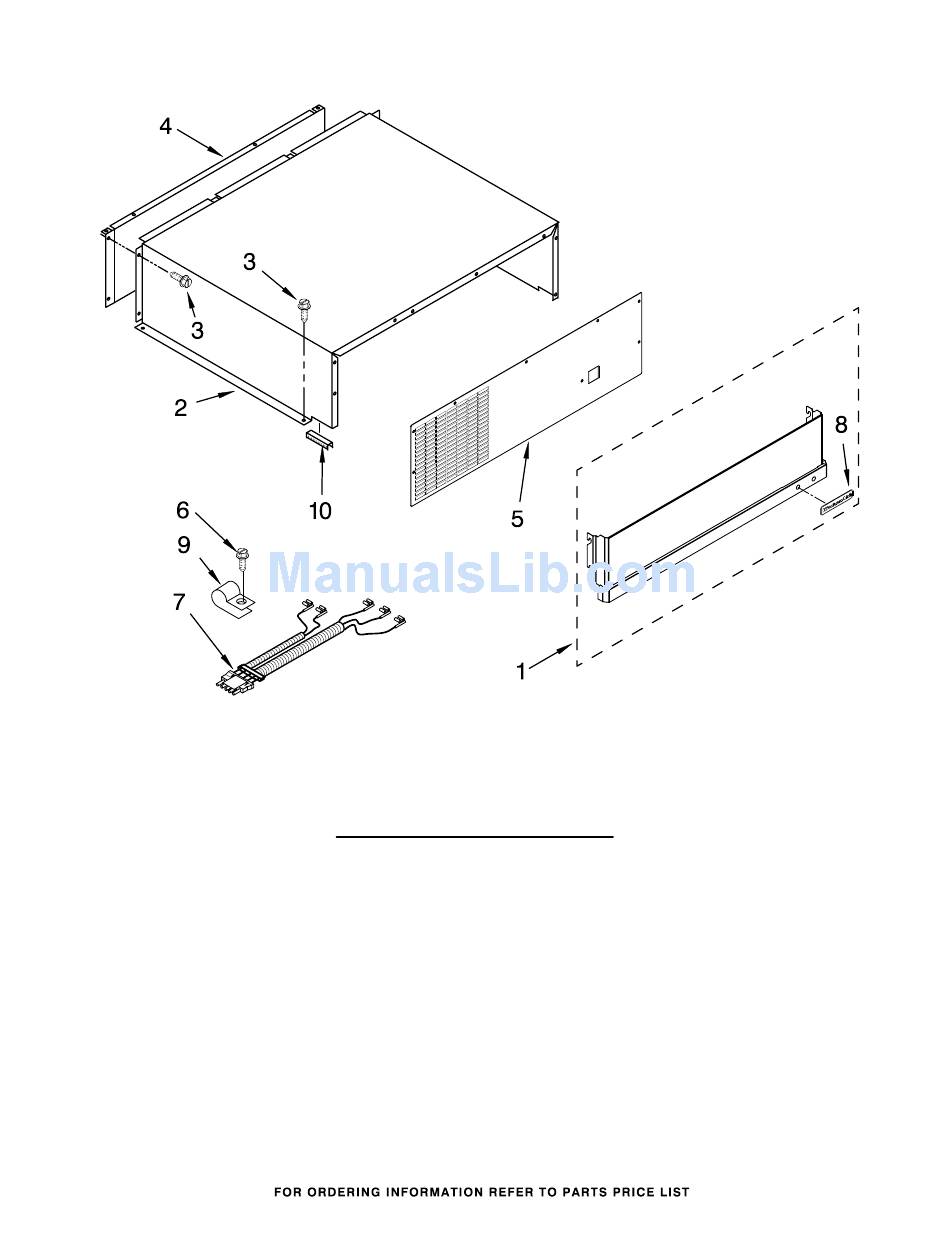

TOP GRILLE AND UNIT COVER PARTS
For Model: JS42PPDUDB01
Illus.
No.
1
W10150056 Stainless Steel
2 W10161693 Cover, Unit
3
4
5 W10185625 Cover, Unit Front
6
7 W10167456 Wire Assembly
8 W10159578 Badge, Jenn−Air
9
10
(Stainless Steel)
Part
No.
DESCRIPTION
Panel, Decorative
Assembly
486194 Screw
2256466 Back Panel
487415 Screw
RC/FC Light Switch
489348 Clamp
2215910 Grommet
8
W10231838
