Jenn-Air JS42PPDUDB00 Parts List

Jenn-Air JS42PPDUDB00 Parts List

42" built in refrigerator
Hide thumbs Also See for JS42PPDUDB00:
Table of Contents

Advertisement

Quick Links

See also: Use and Care Manual , Installation Manual

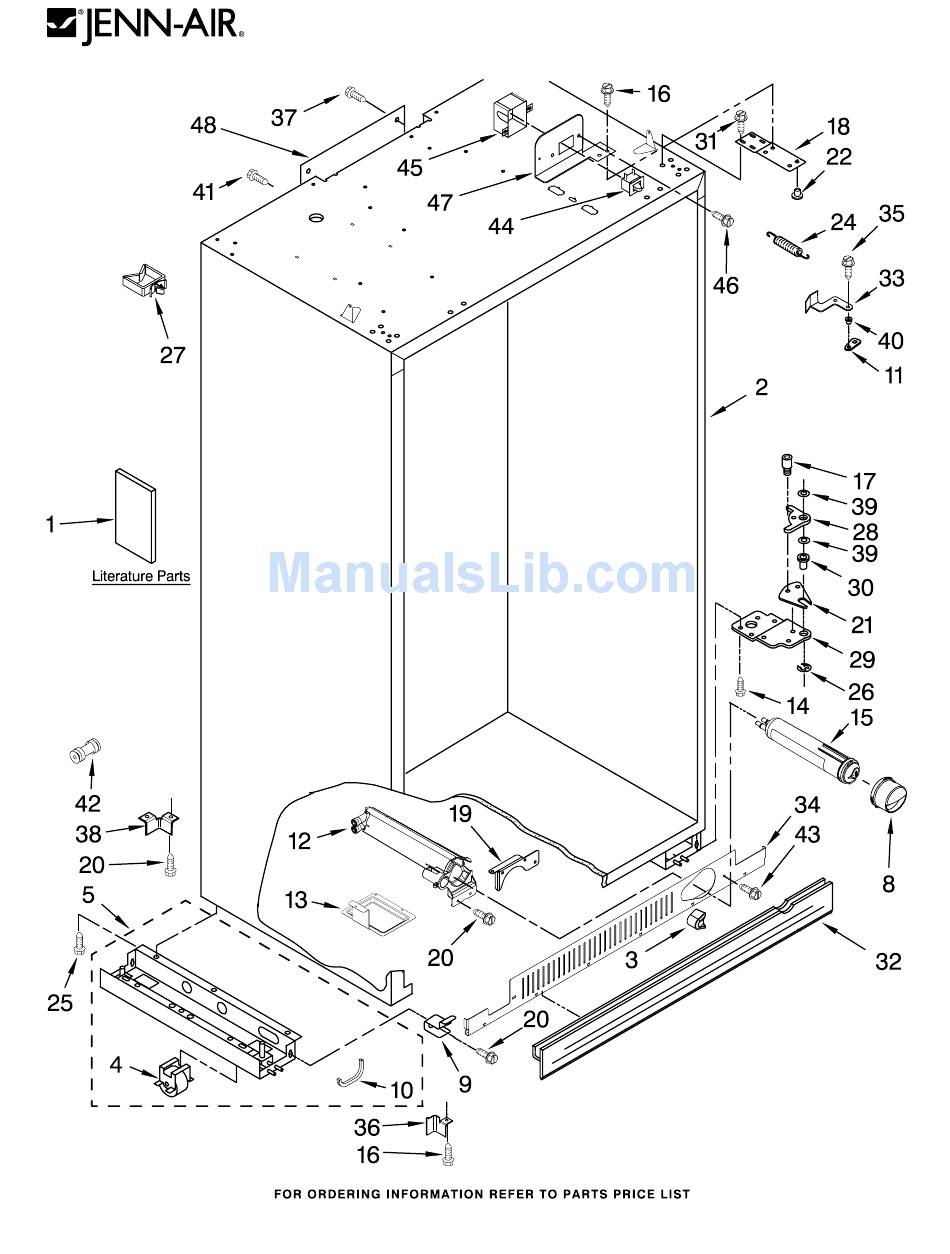

CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Model: JS42PPDUDB00
(Stainless Steel)
Part No. W10180978 Rev. A
3−08 Litho In U.S.A. (mat)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JS42PPDUDB00 and is the answer not in the manual?

Questions and answers

Related Manuals for Jenn-Air JS42PPDUDB00

Summary of Contents for Jenn-Air JS42PPDUDB00

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: JS42PPDUDB00 (Stainless Steel) Part No. W10180978 Rev. A 3−08 Litho In U.S.A. (mat)

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2318189 Tray, Drip Filter Extension Arm, W10151251 Use & Care Guide 3400525 Screw Door Closer W10164077 Energy Guide 4396841 Filter, Water 2266882 Right W10159832 Service &...
  • Page 3 CABINET TRIM PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316687 Cabinet, Trim (Bottom) 486194 Screw 2314017 Cabinet, Trim Top 7 W10132541 Cabinet Trim (Left Side) 8 W10121451 Nutsert (4) 2005925 Seal−Trim, Side 489464 Screw W10180978...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 2302868 Wire, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10180978...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 6 REFRIGERATOR LINER PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 4 W10159487 Diverter, Crisper Cover 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 11 W10169528 Baffle Control...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10151196 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Control Box 487539 Screw (2) 8 W10151210 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw W10180978...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Panel, Decorative Assembly W10150056 Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 8 W10159578 Badge, Jenn−Air 489348 Clamp W10180978...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10141494 Shelf Assembly 2179404 Rack, Wine 3 W10151215 Assembly, Meat Pan Cover 4 W10151213 Assembly, Crisper Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side 2302831 Trim, Glass Front...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2220904 Gasket (2) 20 W10151205 Cover, Emitter 2259385 Fan Motor Evaporator Cover Liner (Not A 2198665 Tube, P.C. Board 36 W10151208 Cover, Receiver 2169142 Fan Blade Serviceable Part) 37 W10139189 Harness, Evap Fan...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 2222965 Ice Bin 2 W10151247 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2317239 Block, Blade...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 16 REFRIGERATOR DOOR PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gaasket, Utility 2222811 Door Gasket, Magnetic Skin, Door...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 18 FREEZER DOOR PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door Panel (Includes Item #14) W10157903 Black 2 W10127710 Plate, Door Handle 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic Handle, Door 12859107 Stainless Steel...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 20 DISPENSER FRONT PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly Housing, Middle...
  • Page 21 UPPER UNIT PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 22 UPPER UNIT PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10133449 Inverter Box 2155774 Wire Tie 2259350 Power Supply, 489373 Screw, Compressor 2317982 Drier Ingredient Care Mounting (4) 22 W10136614 Bracket, Fan Motor Center 2223393 Compressor (Condenser Fan)
  • Page 23 LOWER UNIT AND TUBE PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 24 LOWER UNIT AND TUBE PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10160981 Bracket Assembly, Air Return 486194 Screw 3 W10157752 Bracket, Heater Mounting 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 7 W10151288 Cover, Wiring 8 W10153595 Cover, Box 9 W10121371 Tube, Discharge 2188820 Thermistor...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Model: JS42PPDUDB00 (Stainless Steel) W10180978...
  • Page 26 ICEMAKER PARTS For Model: JS42PPDUDB00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2320601 Shield, Valve 31 W10151255 Cover, Icemaker 20 W10122527 Mold & Heater 2310191 Wire Assembly, 626680 Module Assembly (Also Order Icemaker (Includes Items 542638 Silicone 628379 Clip, Fuse 21 &...
